AFV-P Series High Performance Programmable AC Power Supply
18
The definition for the pins of the PLC remote output female connector is given as
follows:

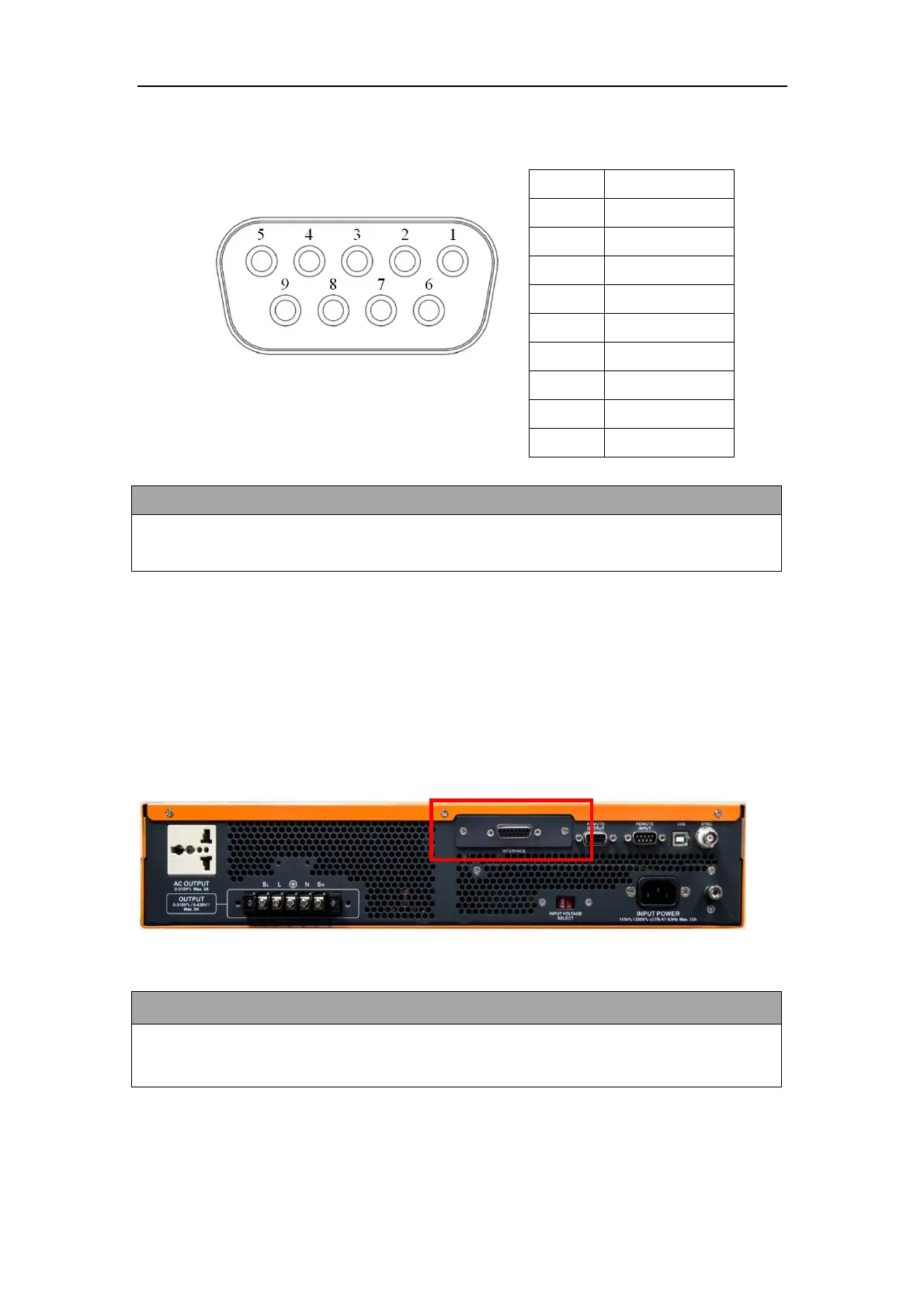

Figure 2.12 PLC remote output
D-type female connector
Pin NO.
Definition
1
Pass
2
Pass
3
Fail
4
Fail
5
Processing
6
Processing
7
No Connection
8
No Connection
9
No Connection
Notice
Pass, Fail and Processing are normally open contact signals and are shorted during
activation. The maximum permissible current is 1A.
2.8.3 Analog Control Interface Card (Optional)
Preen provides an optional analog control card, AFV-P-003, for remote control (see
the figure below). Users can set the AC voltage and frequency, and monitor the out-
put voltage and frequency via external DC signal input. Refer to Subsection 3.6.4 for
setting analog control on the product.
Figure 2.13 Analog control interface card (AFV-P-003)
Notice
The analog control card shares the same pins with RS-232/RS-485/USB/Ethernet
card and GPIB card. Users can only use one card at a time.
