AFV-P Series High Performance Programmable AC Power Supply
74
5 Advanced Mode: PROGRAMMABLE Features
5.1 General
The product can not only provide the steady output voltage and output frequency,
but also provide several powerful functions to simulate all kinds of power line condi-
tions and disturbance. Users can make the output change according to the setting
value step by step via the STEP feature (refer to Subsection 5.2), or make the output
change according to the setting slew rate via the RAMP feature (refer to Subsection
5.3), even make the output change according to the setting value for a specific period
of time via the TRANSIENT feature (refer to Subsection 5.4).
A. PROGRAMMABLE Page
Two options of entering into the PROGRAMMABLE page are given as below,
1. At the MAIN page, users can press the icon to enter into the PRO-
GRAMMABLE page.
2. At the MENU page 1, users can press the icon to enter into the PRO-
GRAMMABLE page.

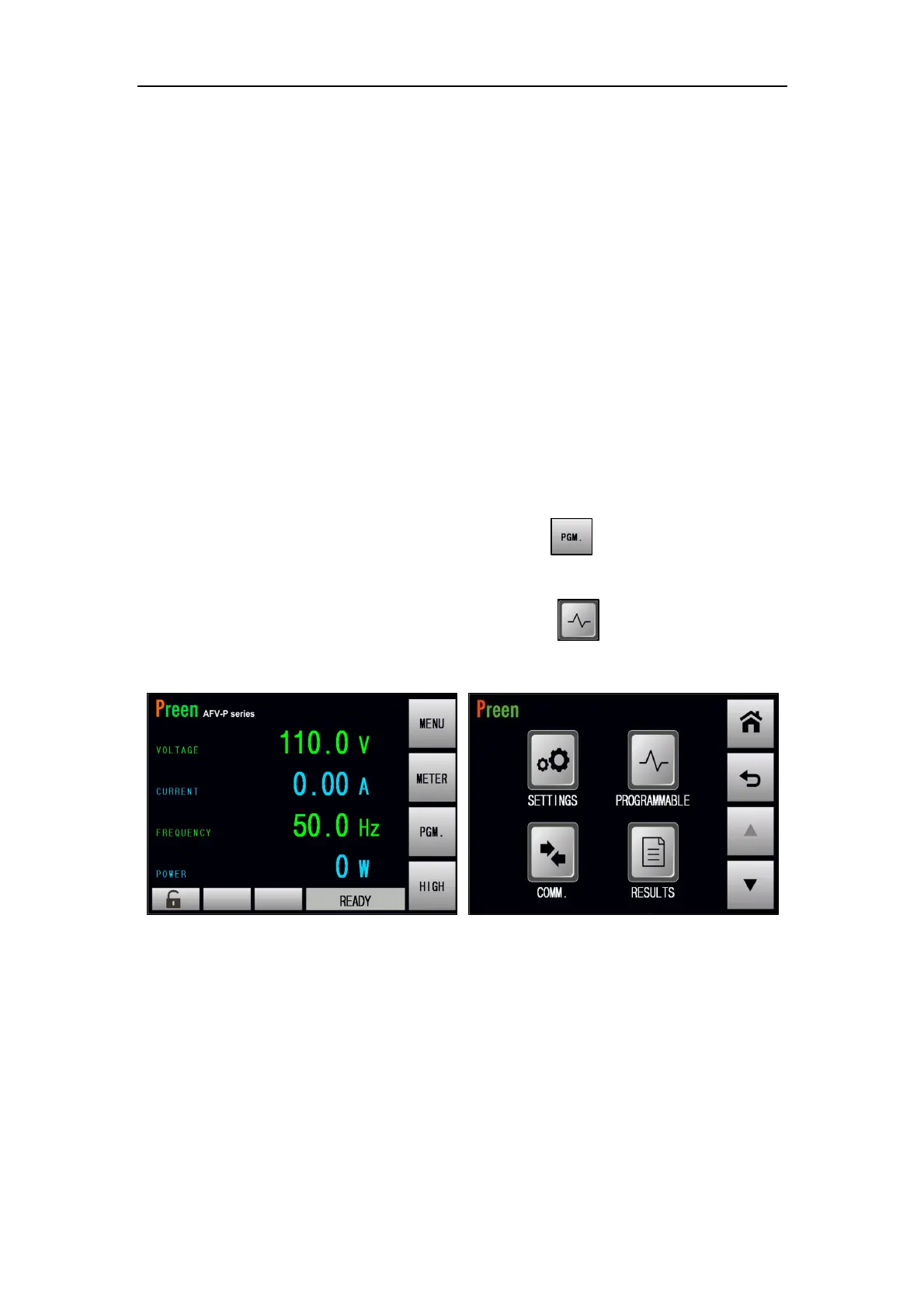

Figure 5.1 MAIN page Figure 5.2 MENU page 1
