8 Theory of Operation
The product mainly consists of 8 function blocks, and each of the function blocks has
its own specific function. The function blocks of the product are given as below,

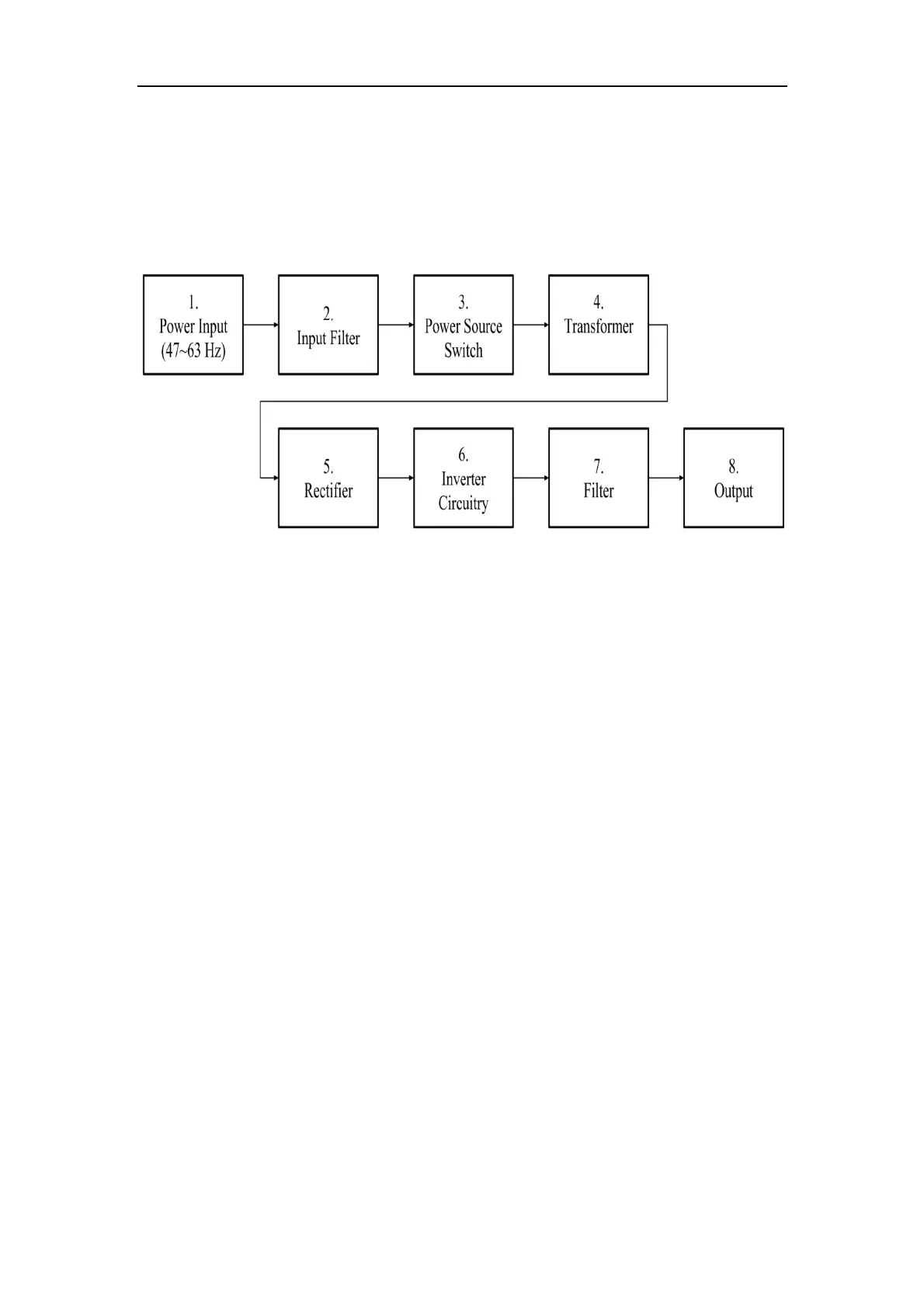

Figure 8.1 Function block of the product
