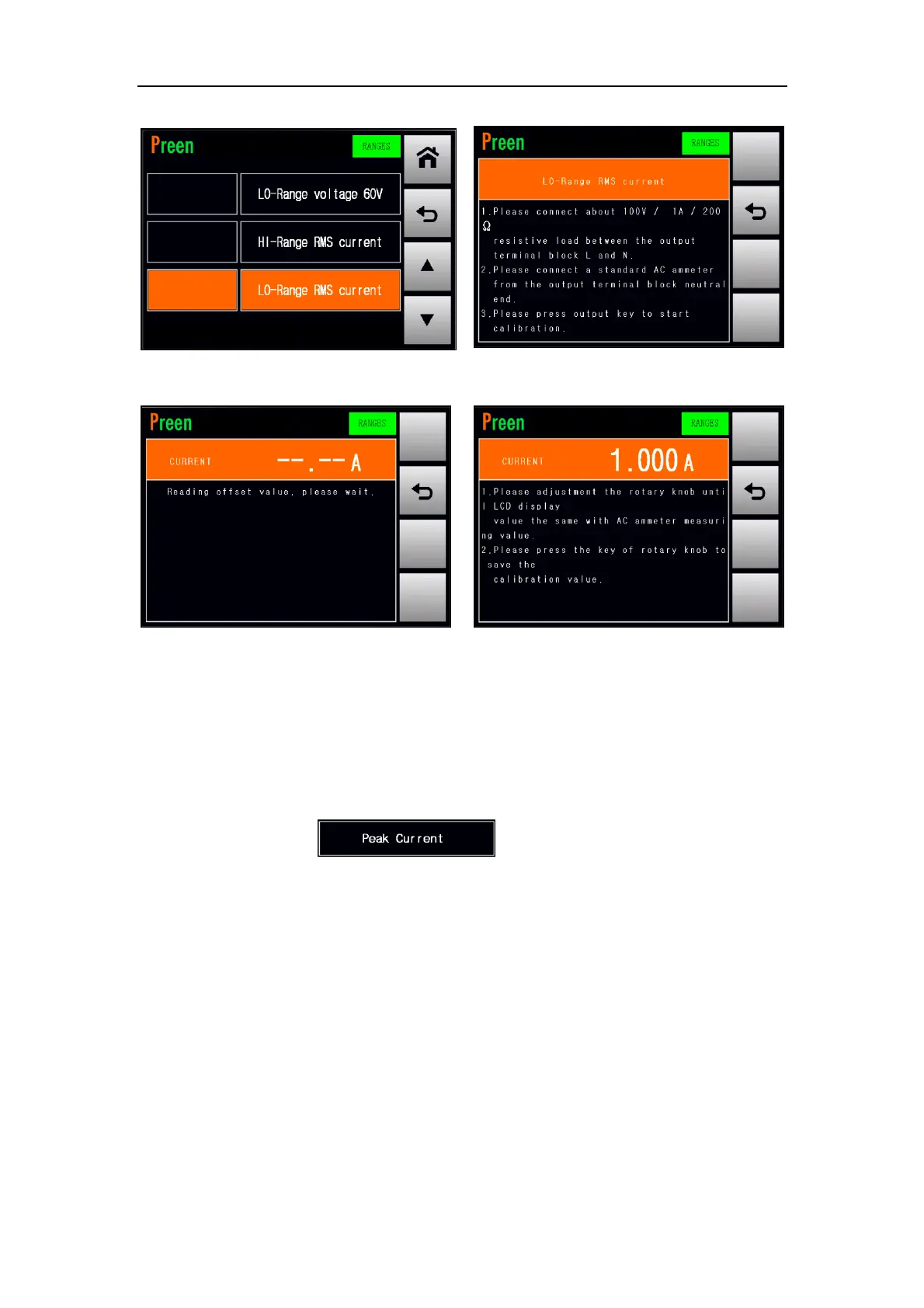

Figure 6.15 Enter into the page which calibrates the LO-Range RMS current
Figure 6.16 Enable the calibration of the LO-Range RMS current
6.7 Peak Current
At the CALIBRATION page 3, users are allowed to enter into the page which calibrates
the peak current. The procedures of calibrating the peak current are given as below:
1. Press the item repeatedly to enter into the page
which calibrates the peak current (refer to Figure 6.17).
2. Connect the product with the current meter and suitable load (refer to Figure
6.1).
3. Press the output & reset button on the front panel to enable the calibration of
the peak current (refer to Figure 6.18), and then the product will start to output
the voltage which is closed to 100V.
4. Use the rotary knob to adjust the product output until the measurement read-
ing of the peak current shown on the touch screen is closed to the measurement
reading shown on the current meter.
5. Press the rotary knob to confirm and finish the calibration.
