6.1 HI-Range Voltage 310V
At the CALIBRATION page 1, users are allowed to enter into the page which calibrates
the HI-Range voltage 310V. The procedures of calibrating the HI-Range voltage 310V
are given as below:
1. Press the item repeatedly to enter into the page
which calibrates the HI-Range voltage 310V (refer to Figure 6.5).
2. Connect the product with the voltage meter (refer to Figure 6.1).
3. Press the output & reset button on the front panel to enable the calibration of
the HI-Range voltage 310V (refer to Figure 6.6), and then the product will start to
output the voltage which is closed to 310V.
4. Use the rotary knob to adjust the product output until the measurement read-
ing of the output voltage shown on the touch screen is closed to the measure-
ment reading shown on the voltage meter.
5. Press the rotary knob to confirm and finish the calibration.
Before calibrating the HI-Range voltage 310V, the load shall be temporally re-
moved from the product to avoid a potential electric shock.

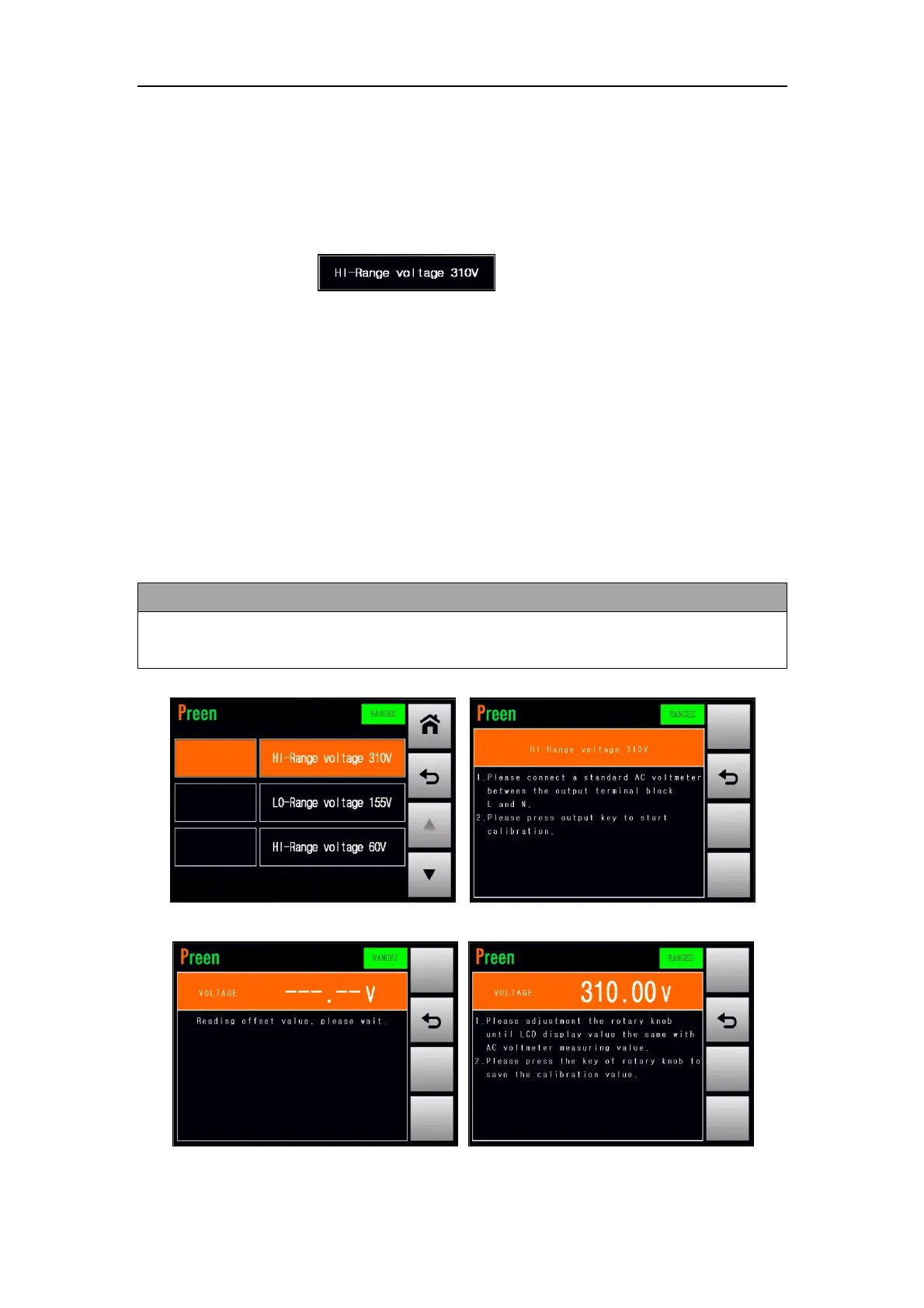

Figure 6.5 Enter into the page which calibrates the HI-Range voltage 310V
Figure 6.6 Enable the calibration of the HI-Range voltage 310V
