AFV-P Series High Performance Programmable AC Power Supply
75

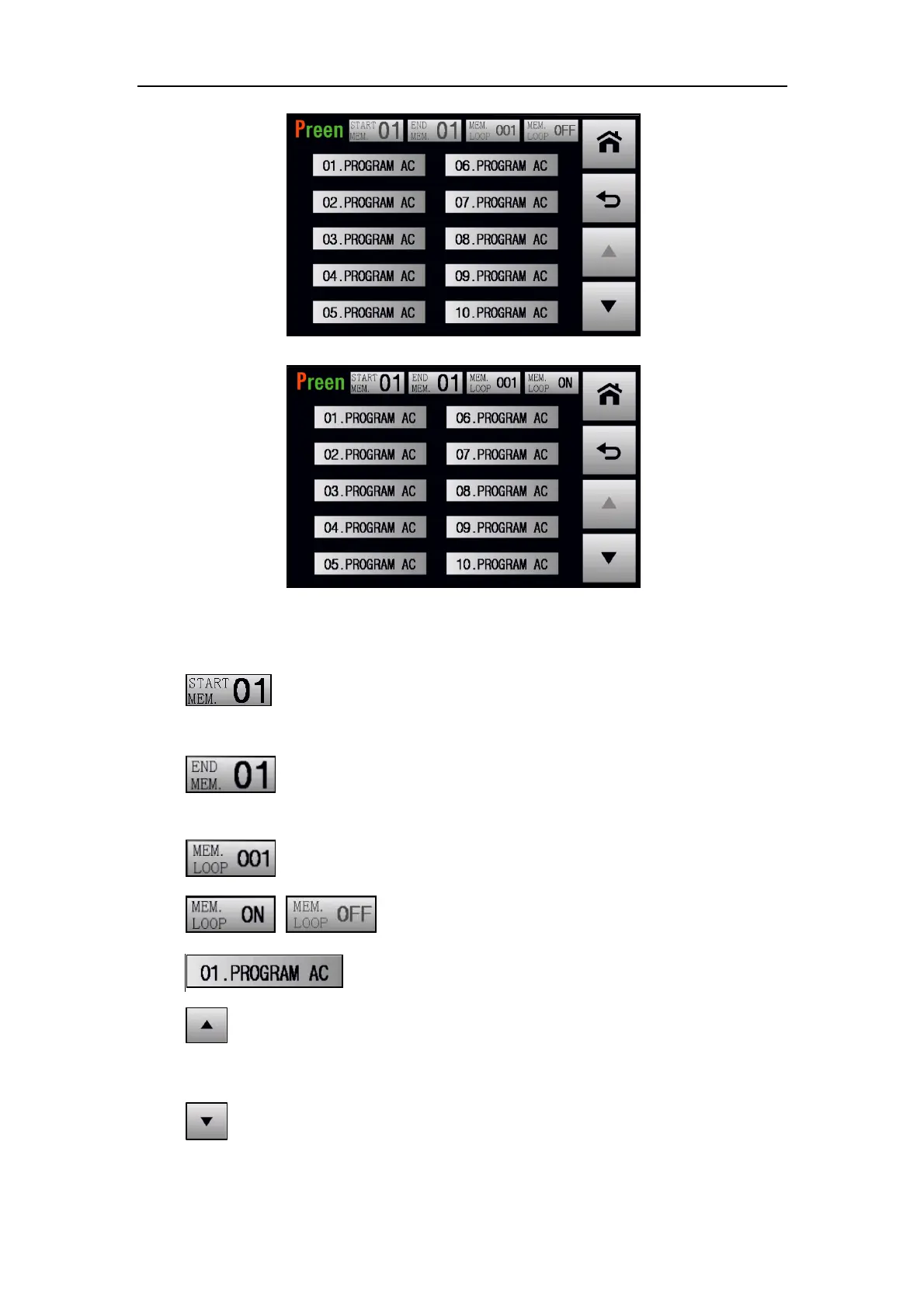

Figure 5.3 PROGRAMMABLE page when the Memory Loop is off
Figure 5.4 PROGRAMMABLE page when the Memory Loop is on
The description for the icons at the PROGRAMMABLE page are given as follows,
1) : Press to set the start number of the Memory Loop, with options
from 1 to 50.
2) : Press to set the end number of the Memory Loop, with options
from 1 to 50.
3) : Press to set the Memory Loop times, with options from 1 to 999.
4) / : Press to enable/disable the Memory Loop.
5) : Press to set the desired Memory Set.
6) : Press to move to the previous page of the PROGRAMMABLE page to
select the desired Memory Set.
7) : Press to move to the next page of PROGRAMMABLE page to select the
desired Memory Set.
