AFV-P Series High Performance Programmable AC Power Supply
36
3.5.1.5 Synchronized Signal
At the TESTING subpage 4 (ADVANCED mode), users are allowed to enable the syn-
chronized signal. There are three options of the synchronized signal: EVENT, OFF, and
ON, and the default option is EVENT. EVENT indicates that the product outputs a 5V
DC pulse signal when the product output changes; OFF indicates that the synchro-
nized signal is disabled; ON indicates that the product continuously outputs a 5V DC
signal when the product output is on, and stop the 5V DC signal when the product
output is off.

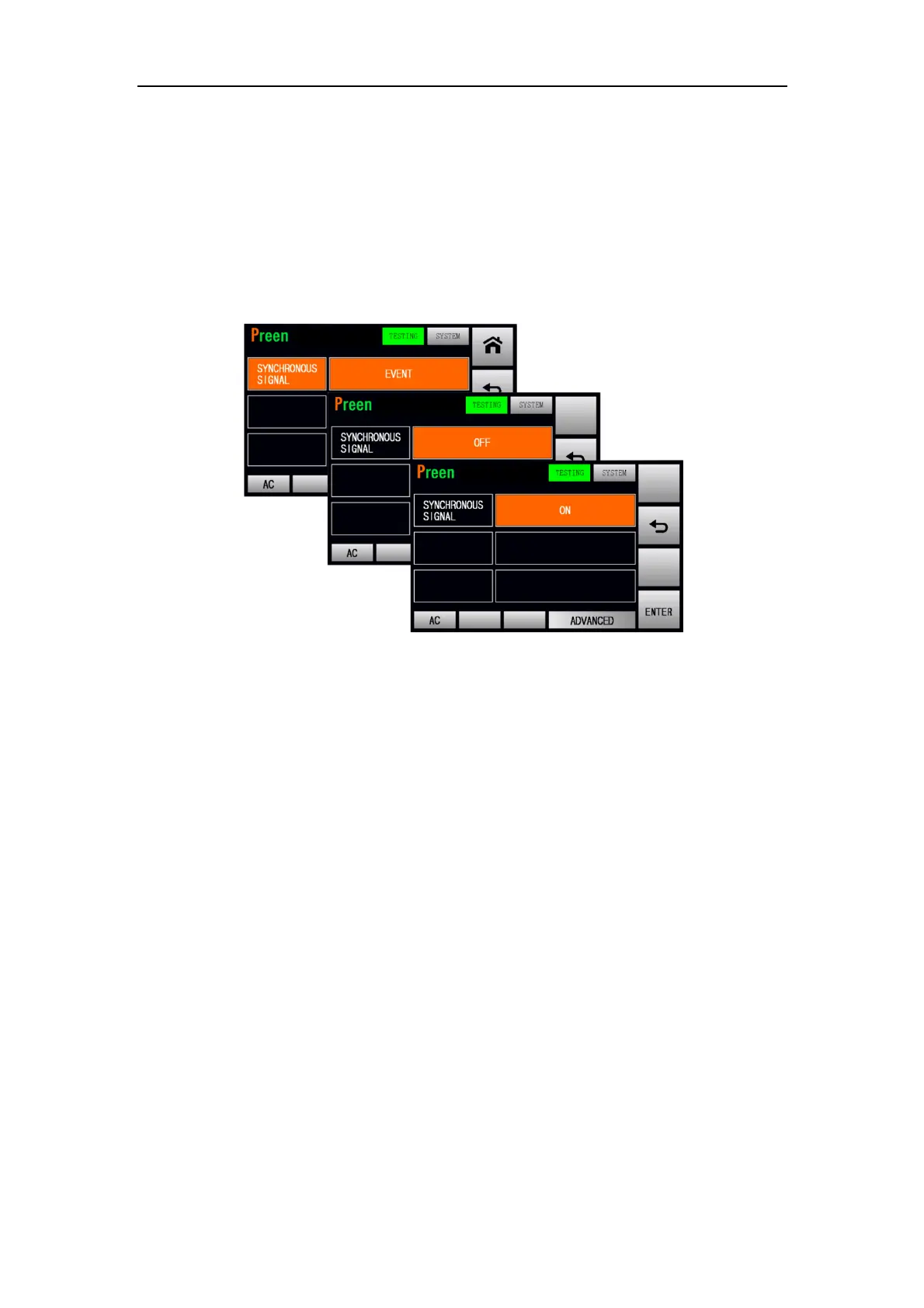

Figure 3.18 Three options of the synchronized signal (ADVANCED mode)
