AFV-P Series High Performance Programmable AC Power Supply
64

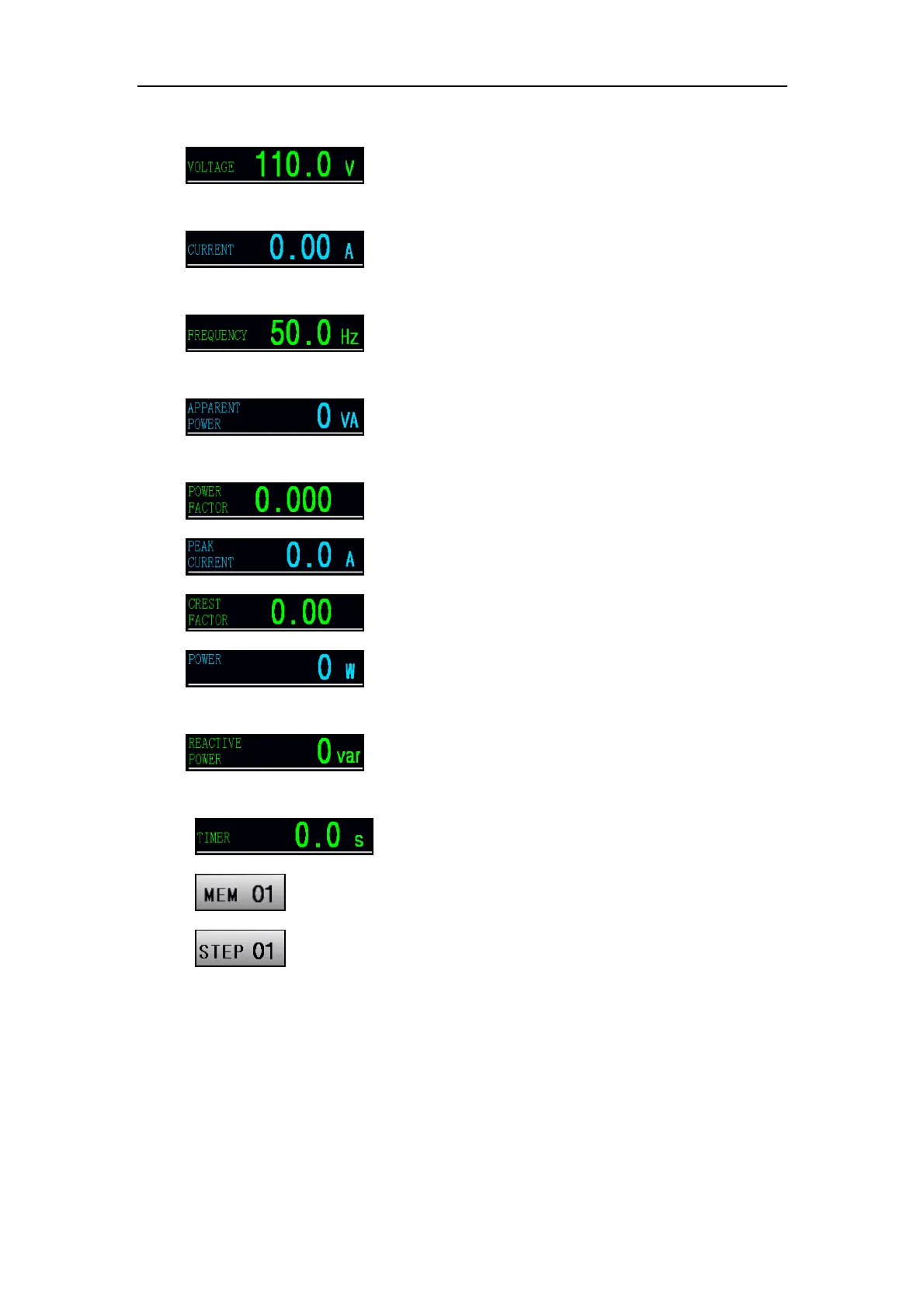

The description for the items and the icons at the METER page are given as follows,
1) : Show the measurement reading of the output volt-
age.
2) : Show the measurement reading of the output cur-
rent.
3) : Show the measurement reading of the output fre-
quency.
4) : Show the measurement reading of the apparent
power.
5) : Show the measurement reading of the power factor.
6) : Show the measurement reading of the peak current.
7) : Show the measurement reading of the crest factor.
8) : Show the measurement reading of the output pow-
er.
9) : Show the measurement reading of the reactive
power.
10) : Show the elapsed time of the product output.
11) : Show the label number of the current Memory Set.
12) : Show the label number of the current Step.
