4) : Press to set the Transient dwell time, with options
from 0.5ms to 999.9ms.
5) : Press to set the Transient cycle times, with options
from 1 to 9999. While setting the Transient cycle times to 0, the Transient
feature will be performed every cycle once.
6) : Press to move to the previous page of the TRANSIENT page.
7) : Press to move to the next page of TRANSIENT page.
B. TRANSIENT Feature Example
To illustrate the TRANSIENT feature, the figures shown below are the example of set-
ting the TRANSIENT feature for the Step 1 and the output waveform corresponding
to this example.

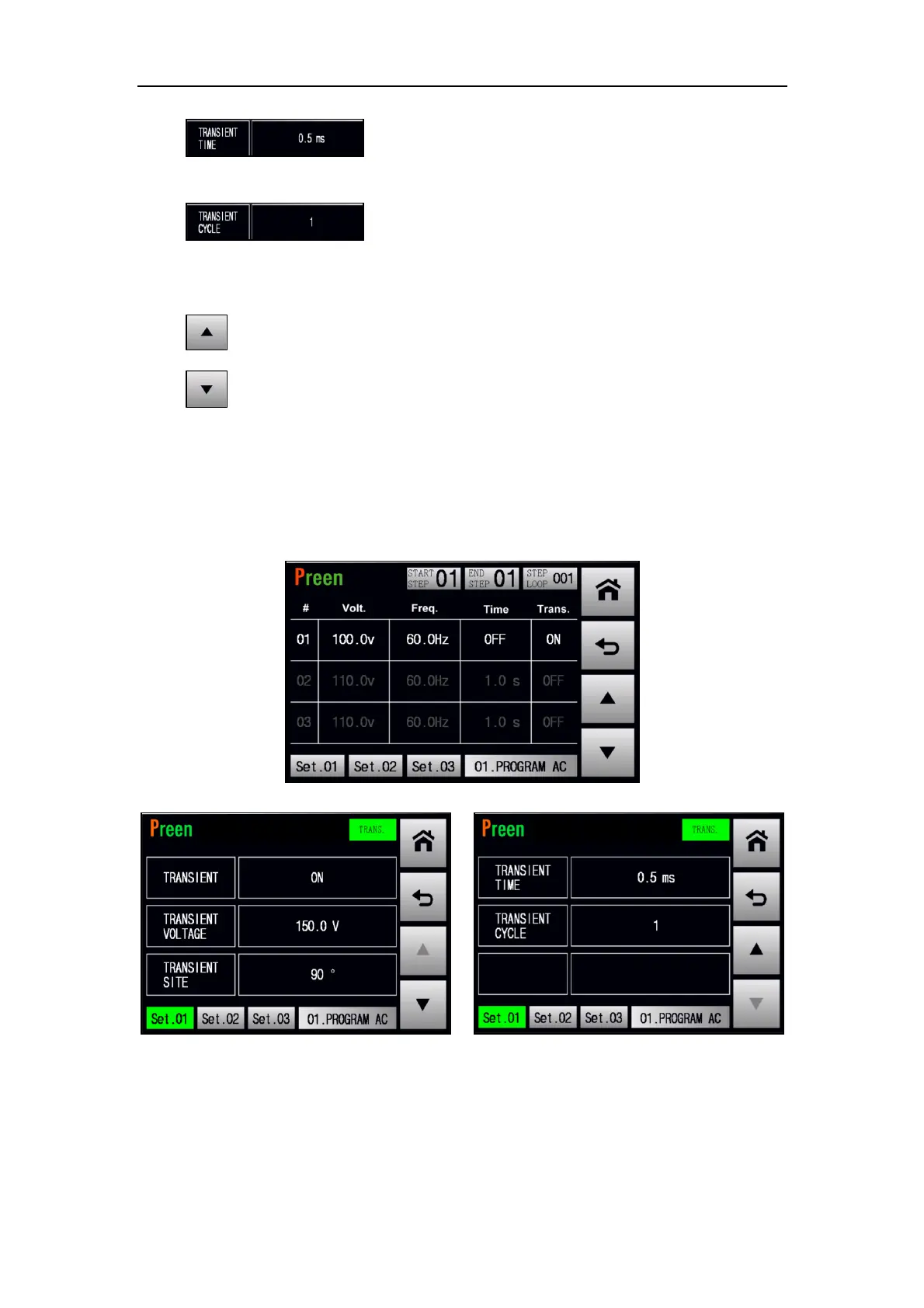

Figure 5.23 Example of setting the TRANSIENT feature for the Step 1
Figure 5.24 Example of setting the TRANSIENT feature for the Step 1
