4-50 Controls and Instruments
PA-1628Operator's ManualH3-45 COACH
BACK-UP CAMERA AND MONITOR
An optional back- up camera is available which
provides the driver with visual assistance when
backing-up.
The monitor is mounted on the windshield L.H. side
pillar and switches ON automatically when the
transmission is in the reverse (R) range.
SCENIC VIEWING SYSTEM CAMERA
The optional scenic viewing system enables the
passengers to view the road ahead of the vehicle.
The camera is mounted above the back-up camera
monitor and the system is switched ON using the
dashboard mounted FRONT CAMERA/TV switch.
ON BOARD DIAGNOSTIC TOOL
RECEPTACLE
To ease troubleshooting, you can connect a
diagnostic tool through the OBD receptacle to
access recorded data. The OBD receptacle is
located under the dashboard, on the left side.
AUTOMATIC FIRE DETECTION AND
SUPPRESSION SYSTEM (AFSS)
PROTECTION PANEL
The protection panel displays the current system
status. The protection panel contains “SYSTEM
OK”, fire “ALARM” and “TROUBLE” lamps, the audio
alarm, the “TEST/RESET” switch, and the “ALARM
SILENCE” switch.
The “SYSTEM OK” lamp indicates power is on the
system and that there is no trouble conditions
present. The “TROUBLE” lamp blinks if there is a
fault in the detection circuitry and illuminates solid if
there is a fault in the extinguishing circuitry. When
the “TROUBLE” lamp is on, the “SYSTEM OK” lamp
will be off and the audible alarm will sound
intermittently. The “SYSTEM OK” lamp will flash
when the system is low on battery power.
Depressing the “TEST/RESET” switch tests the
protection panel lamps and audio alarm. The
“ALARM SILENCE” switch will disable the audio
alarm.
When a fire detector automatically detects a fire, the
fire “ALARM” lamp and audio alarm activate. When
the Manual Activation Switch is activated, the fire
“ALARM” lamp blinks and the audio alarm activates.
The lamp will blink until power is cycled to the
system.

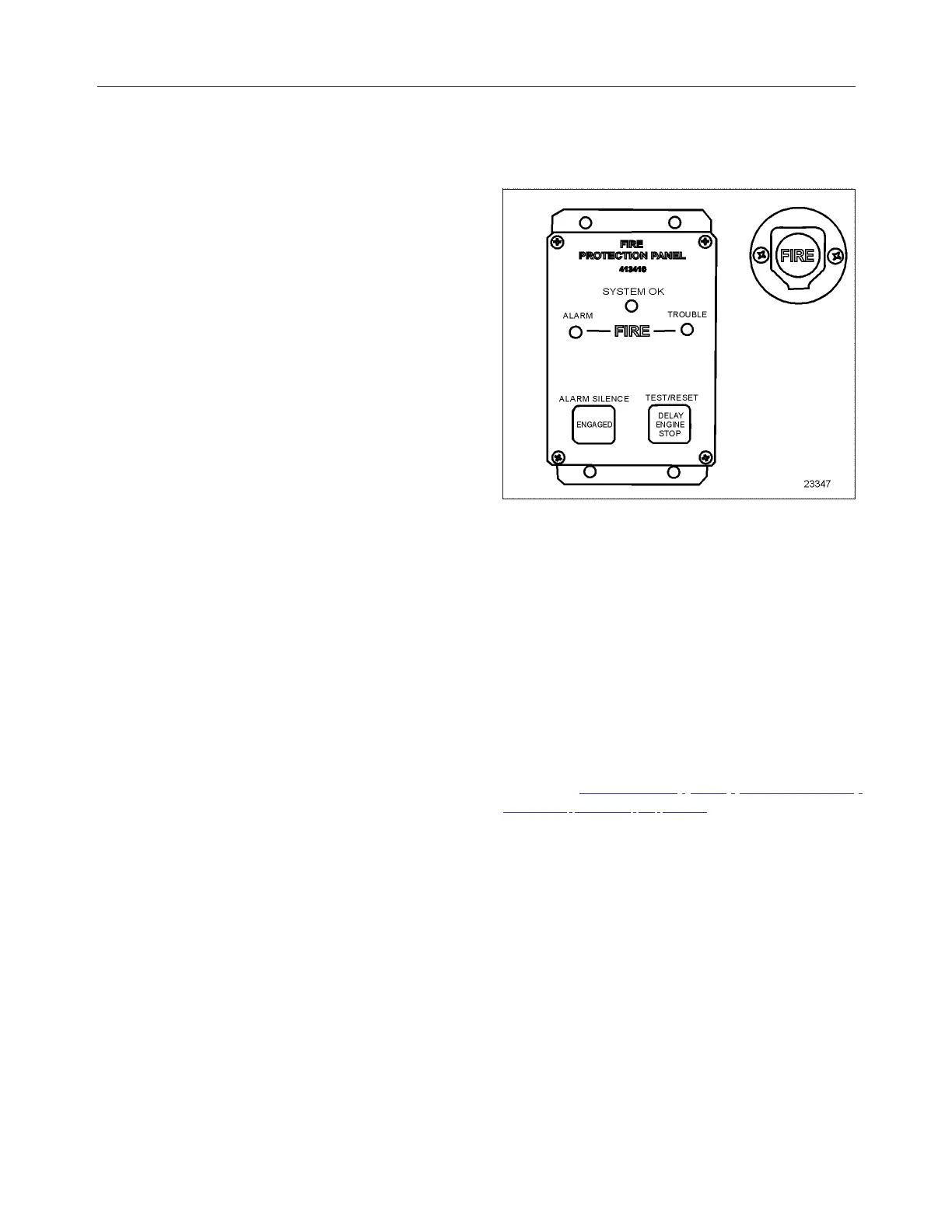

AFSS PROTECTION PANEL & MANUAL ACTIVATION
SWITCH
Manual Activation Switch
The manual activation switch allows immediate
system activation (extinguisher discharge and
engine shutdown) by the driver at any time.
Activation of the switch is accomplished by twisting
and pulling the tamper seal to remove, lifting the
cover and pressing the red “FIRE” button for more
than half a second. After the manual activation
switch has been activated, the protection panel will
blink the fire “ALARM” indicator until power has been
cycled to the system.
Refer to "AUTOMATIC FIRE SUPPRESSION
SYSTEM (AFSS)" on page5 in Section 7 Safety
Features and Equipment for more information.
CRUISE CONTROL
The cruise control allows you to cruise the vehicle at
a desired speed over 30 mph (50 km/h) without
having to use the accelerator pedal.
