2-10 Coach Exterior
PA-1628 Operator's Manual H3-45 COACH

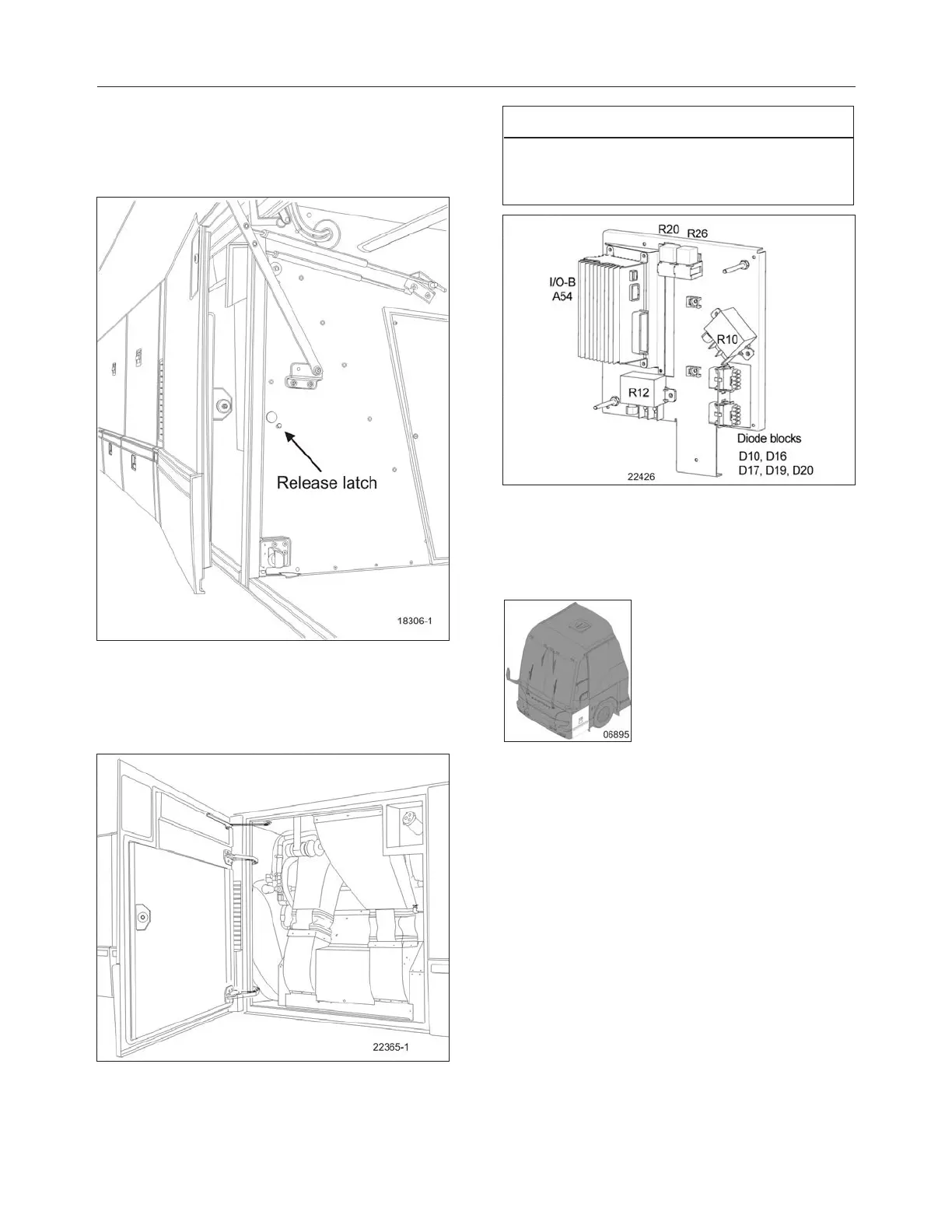

To access the evaporator compartment, pull the
release latch located on the left side wall of the
rearmost baggage compartment.
FIGURE 13: EVAPORATOR COMPARTMENT ACCESS
The evaporator compartment contains relays,
diodes and a multiplex electronic module mounted
on a panel located on the R.H. side wall when
facing the compartment.
FIGURE 14: EVAPORATOR COMPARTMENT
NOTE
It is important to keep the evaporator
compartment door closed while checking the
HVAC system to prevent faulty readings.
FIGURE 15: HVAC COMPONENTS PANEL
FRONT ELECTRICAL AND SERVICE
COMPARTMENT
Unlock this compartment door
using the exterior
compartment key. The light in
the front service compartment
turns on automatically when
the door is open.
The front electrical and service compartment
provides access to the following:
l Front fuse box (VECF) & spare fuses
l ABS module
l VECU
l Front multiplex modules I/O-A, I/O-B
l Relays & resistors
l Kneeling audible alarm
l Emergency door opening unlock valve
l Windshield washer reservoir
l Headlights washer reservoir
l Reclining bumper opening handle
l Accessories air tank purge valve
l Accessories air tank fill valve
