2-12 Coach Exterior
PA-1628 Operator's Manual H3-45 COACH
NOTE
The baggage compartment doors can be locked /
unlocked with the optional baggage
compartments locking system. The switch is
located on the lateral control panel. Refer to
"CONTROL SWITCHES" on page13 in Section
4 Controls and Instruments.
NOTE
To prevent the door from closing in case of
defective cylinders, lock the door in open
position by pushing it further towards the body of
the vehicle, until it locks in place.
SPARE WHEEL COMPARTMENT
The spare wheel is located in the compartment
behind the front bumper.
WARNING
This compartment is not designed for
miscellaneous storage. Never store loose objects
in this compartment because they can block the
steering linkage mechanism.

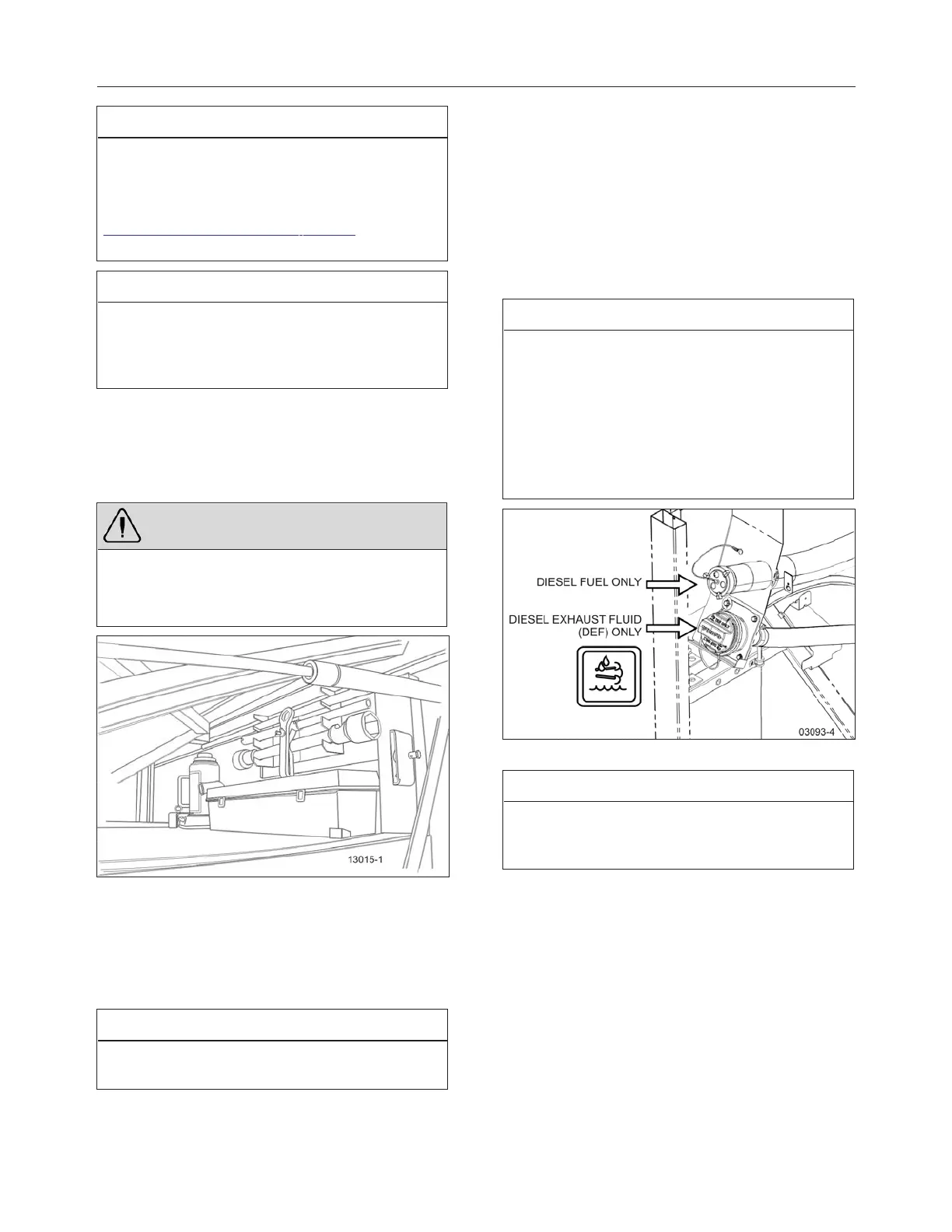

FIGURE 18: TOOLS IN FIRST BAGGAGE
COMPARTMENT
To access the spare wheel compartment, pull on
the release handle located in the front electrical
and service compartment, near the lower door
hinge. The bumper will lower gradually.
NOTE
The jack and tools are located in the first
baggage compartment.
When closing the compartment, be sure the
bumper is firmly in place.
FUEL AND DIESEL EXHAUST FLUID
(DEF) FILLER NECK ACCESS
Both fuel filler neck doors must be opened with the
exterior compartment key. To open, turn the key ¼
turn clockwise and pull the door open.
NOTE
It is recommended to refuel from the curbside
whenever possible, to avoid spilling fuel into the
evaporator compartment. Any amount of fuel
vapor in this compartment would be carried right
up into the cabin by the HVAC system fresh air
intake.
Moreover, the curbside filler neck access door is
the only access to the DEF filler neck.
FIGURE 19: FUEL FILLER DOOR
NOTE
Provided the vehicle is parked on level ground,
an automatic nozzle will automatically shut off
when tank is approximately 95% full.
