OVERHEAD STORAGE COMPARTMENTS
WASTE CONTAINER
The waste container is located on the lavatory wall,
and is accessible through an opening on each side of
the wall. A small door, located on the aisle side,
gives access to the waste container for cleaning.
GALLEY
The optional galley may include features such as a
microwave oven and refrigerator to accommodate
hot or cold food and beverage service. The galley's
electrical power circuit is activated by a rocker
switch located on the dashboard. Refer to “Controls
& Instruments” chapter.
LAVATORY
The lavatory is located in the rear curb side corner of
the coach. It can be equipped with a chemical flush
toilet, bathroom tissue dispenser, wash-basin, towel
dispenser, waste container, mirror and cleaning
cabinet, containing a coiled hose. A liquid soap
dispenser and moist towel dispenser are optional.
Locking the lavatory door from the inside will
illuminate a fluorescent light in the lavatory and two
outside signs to indicate occupation. One sign is
located on the outer wall of the lavatory and another
sign is located over the windshield.
A telltale light on the dashboard will illuminate to
inform the driver when the lavatory is occupied. A
night-light is permanently lit in the lavatory when the
ignition switch is in the ON position.
If emergency assistance is required, the lavatory
occupant can actuate a buzzer that will sound in
driver's area. The buzzer push-button and instruction
label are located on the wall of the lavatory.
The lavatory has its own ventilation system that
operates continuously when the ignition switch is in
the ON position.
The fresh water tank may be equipped with an
immersion heater supplied by the 120-volt connector
for the engine block heater.

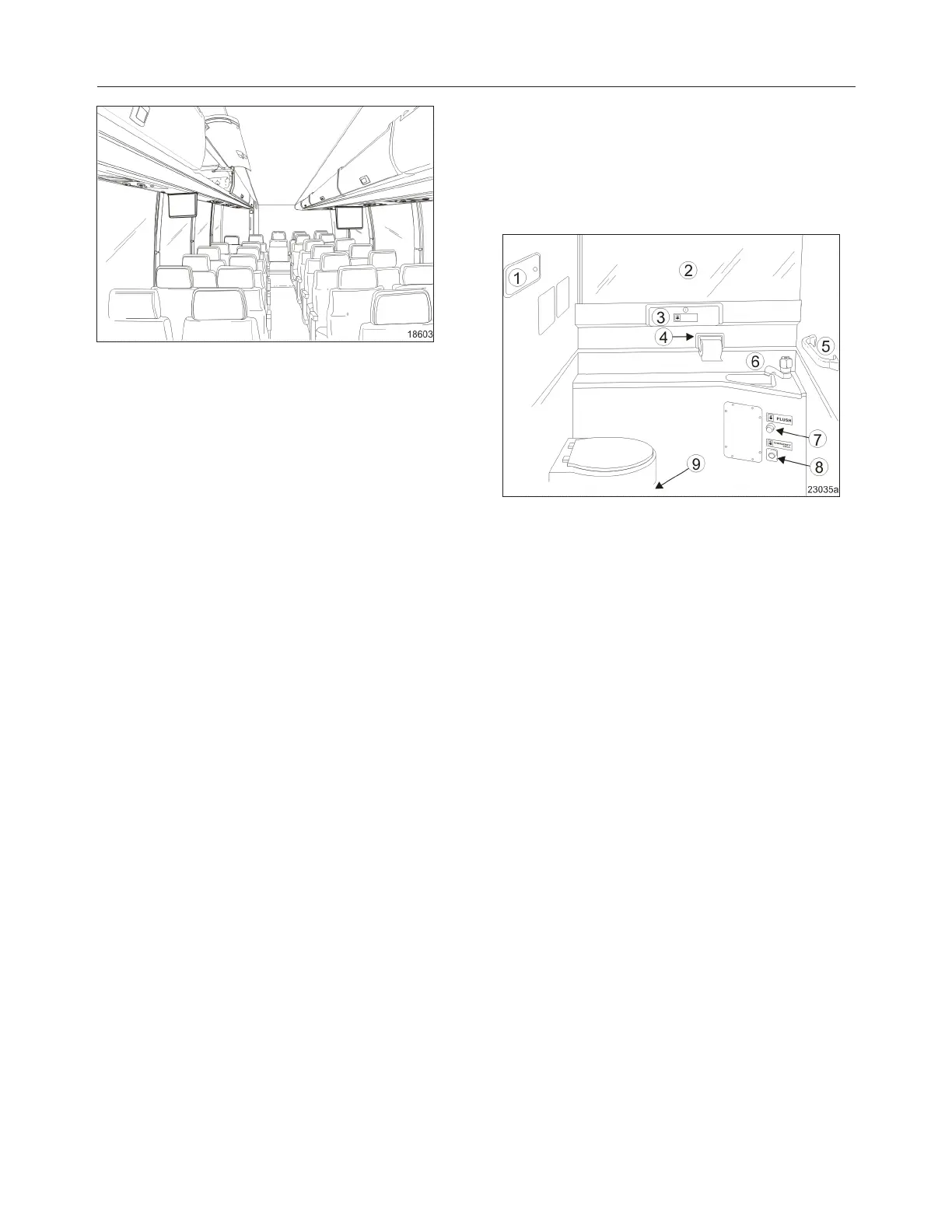

LAVATORY
1. Cleaning cabinet
2. Mirror
3. Paper towel dispenser
4. Toilet paper roll
5. Grip handle
6. Wash basin
7. Flush button
8. Emergency call button
9. Waste basket
