8-6 Care and Maintenance
PA-1628Operator's ManualH3-45 COACH

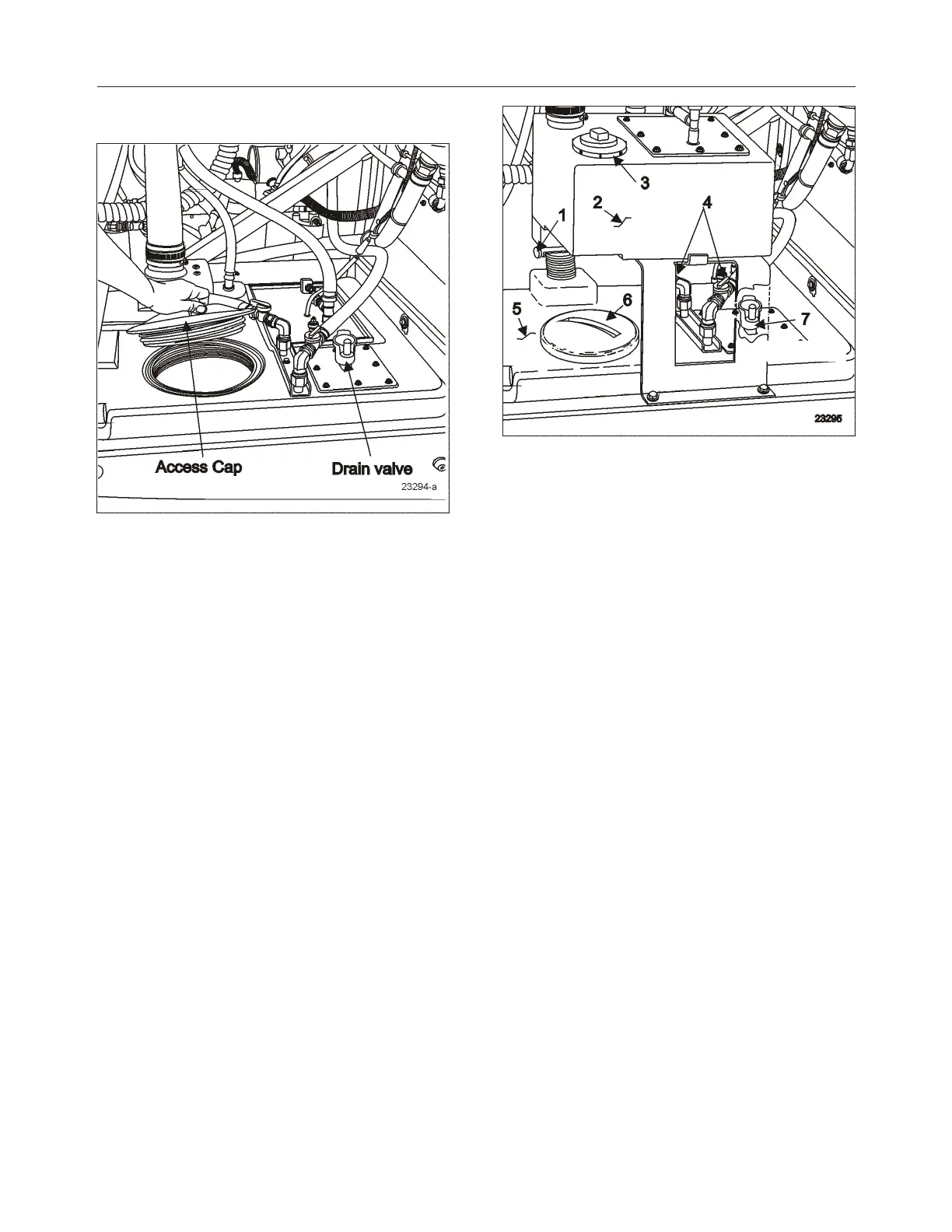

WASTE WATER RESERVOIR
SINGLE LAVATORY WASTE WATER TANK OPTION
DUAL LAVATORY WASTE WATER TANK OPTION
1. Drain valve
2. Main waste water tank
3. Access cap
4. Heating element valves
5. Auxiliary waste water tank
6. Access cap
7. Drain valve
Filling The Lavatory Waste Water Tank
Fill the lavatory waste water tank through the access
hole and throw in a packet of commercial toilet
deodorant (Prevost part #900329).
Draining The Lavatory Waste Water Tank
When recirculating water in the toilet is soiled, drain
the lavatory waste water tank. If equipped with the
optional auxiliary lavatory waste water tank, drain
the main lavatory waste water tank contents into the
auxiliary tank by opening the knife gate valve under
the tank. Perform the filling procedure of the main
tank.
Draining The Large Lavatory Waste Water Tank
To drain the large lavatory waste water tank
contents, remove the cap located underneath the
tank then turn the drain valve lever counterclockwise
about eight or nine turns and pull the lever up.
Remove the access cap and flush tank with clean
water. To close, push the valve down on its seat
then turn the drain valve lever several turns
