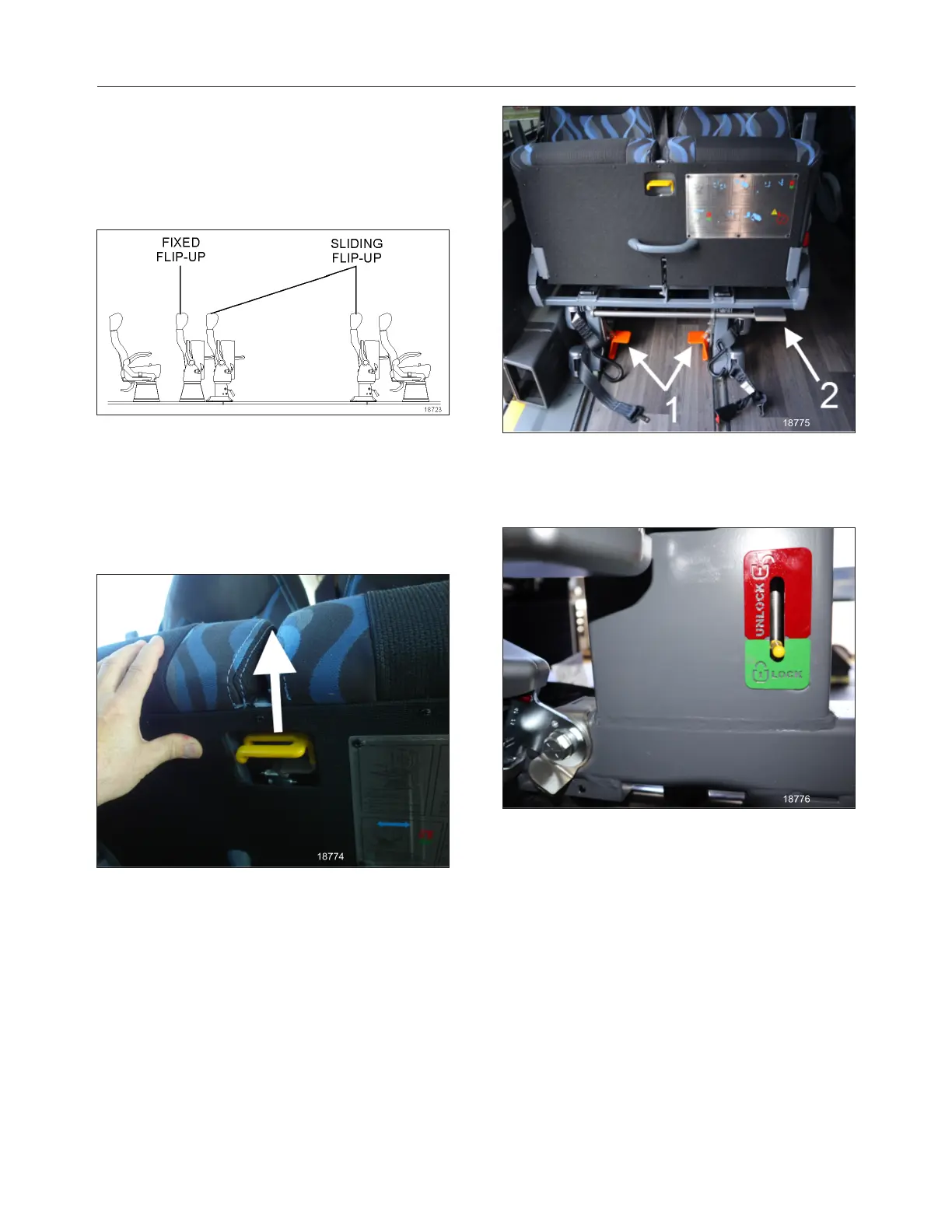

SEATS RECONFIGURATION
To accommodate a wheelchair, one row of seats
must be folded and two rows must be folded and slid
away. Seats may be folded on both sides of the
coach to make room for a second wheelchair.
POSSIBLE SEATING ARRANGEMENT
Electrical wheelchair or tri- wheeler may require
moving the sliding seats on both sides of the coach
to allow enough turnaround space.
To fold a set of seats, raise the seat back then lift up
the seat cushion by pulling the yellow handle under
the cushion.
FOLDING AND SLIDING SEATS
To slide a row of seats, remove the black covers
from the floor tracks. Pull up both orange levers
(items 1), push down the pedal (secondary lock item
2) and move the row of seats until it clicks at the final
position.
SLIDING THE SEATS
The secondary lock indicator shows that the row of
seats is locked at the right position. Push down both
orange levers (item 1) before moving to next step.
SECONDARY LOCK INDICATOR
WHEELCHAIR RESTRAINT SYSTEMS
Two types of wheelchair restraint systems may be
found, depending on the type of seats:
l 4-point wheelchair and occupant securement
with floor anchorage.
l 4-point wheelchair and occupant securement
with anchorage to passengers seat
pedestals.
Refer to Q’Straint publications included in the
wheelchair restraint plastic pouches for further
details.
