CONTROL SWITCHES
High quality laser-engraved switches are used to
control many of the features of the vehicle. Many
switches have an embedded indicator LED to inform
the driver at a glance which features are active.
On some switches, the indicator LED will turn off
after a short while when the engine is running. This is
normal and is designed to reduce glare when driving.
The functions still operate even if the LED is off. If
the switches are still on when the engine is turned
off, the LEDs will illuminate to warn the driver to turn
them off. Switches are described in the order they
appear, from left to right, top to bottom.

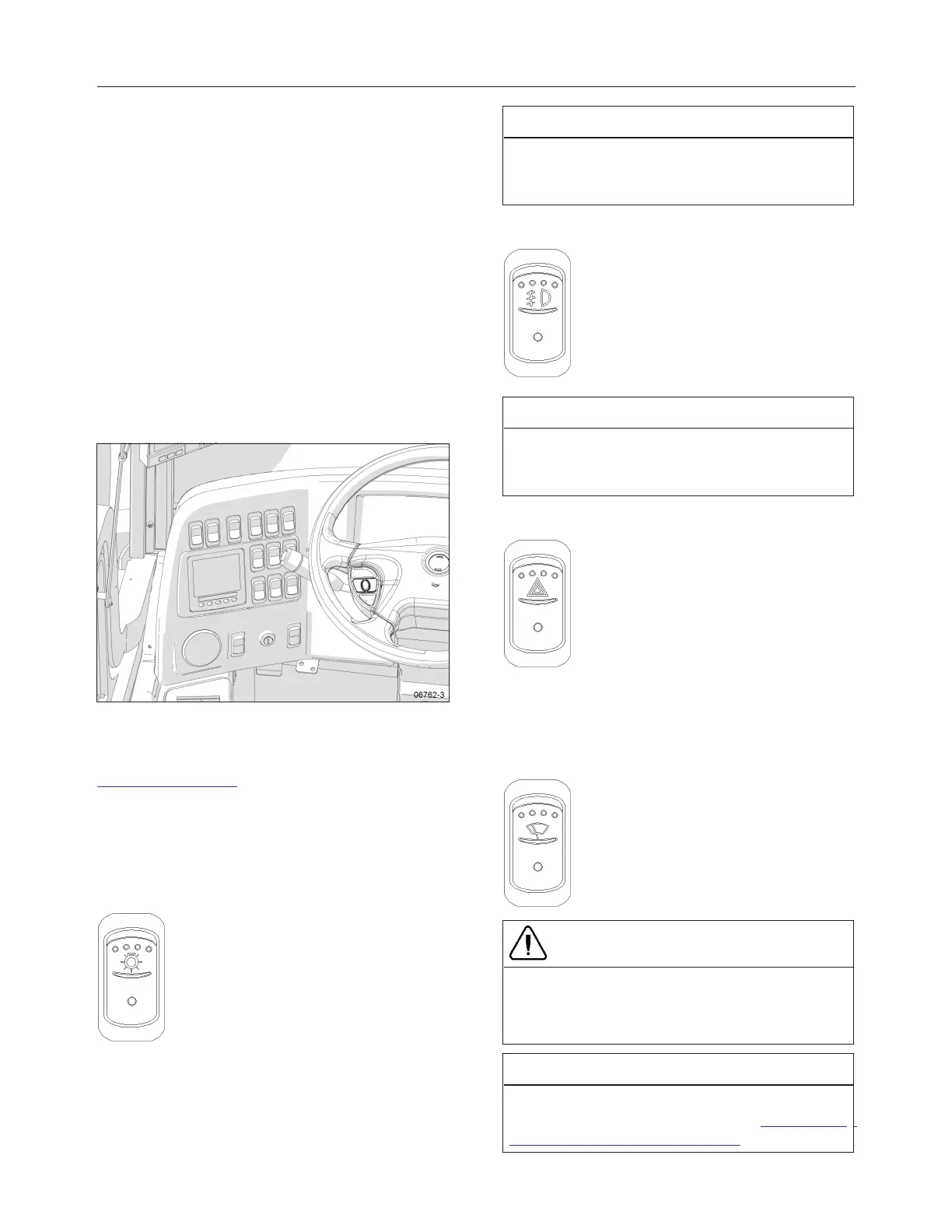

L.H. DASHBOARD PANEL
L.H. DASHBOARD PANEL
The L.H. dashboard panel includes controls for the
operation of the coach; it also includes the
IGNITION SWITCH and an adjustable air register.
Headlights And Exterior Lighting
OFF position – Daytime running lights
only (with engine running).
Press this rocker switch to turn on the
following lights:
First position – Front parking lights,
taillights, clearance lights, marker lights,
license plate light.
Second position (push down fully) – the
headlights, the controls and instrument
lights and all lights from the first position.
NOTE
Daytime running lights will be automatically
canceled when the exterior lighting switch is fully
depressed (second position).
Fog Lights (Optional)
Optional halogen fog lights provide
better visibility in fog and precipitation.
They improve close range visibility and
provide added safety.
NOTE
Some states and provinces restrict the use of fog
lights. Verify local state or provincial regulations
before using.
Hazard Warning Flashers
Press the rocker switch to make all turn
signal lights flash at once. The
dashboard telltale lights will flash when
the hazard warning flashers are ON.
Once the hazard warning flashers are
activated, the ignition switch can be
turned to the OFF position. The hazard
warning flashers will stay activated and
will prevent the vehicle systems to fall
in “sleep mode”.
Upper Windshield Wipers (Optional)
Press the rocker switch to the first
position to activate the upper wipers
intermittently.
Press to the second position for
continuous operation of the upper wipers.
CAUTION
To avoid damaging the wiper blades or scratching
the windshield, do not operate the wipers when the
windshield is dry. Also, loosen frozen wipers
before operating.
NOTE
Lower windshield wipers are activated using the
multi- function lever. Refer to "STEERING
COLUMN CONTROLS" on page8 in this section.
