PA-1628Operator's ManualH3-45 COACH
4-POINT SECUREMENT WITH FLOOR
ANCHORAGE
This securement system includes:
l 4 wheelchair tiedown retractors to secure
wheelchair to vehicle floor.
l Occupant securements: lap and shoulder
belts that integrate to the rear wheelchair
restraints.
l Floor anchorages; installed on the vehicle
floor.
Two complete sets of wheelchair restraints are kept
in plastic pouches and stowed in an overhead
compartment. To secure each wheelchair, four
tiedown retractors must be used (at all four corners).
Two of the four tiedown retractors have attaching
pins to secure the occupant’s lap belt. They must be
placed at the rear of the wheelchair. Each tiedown
retractor slots into a mounting floor pocket.

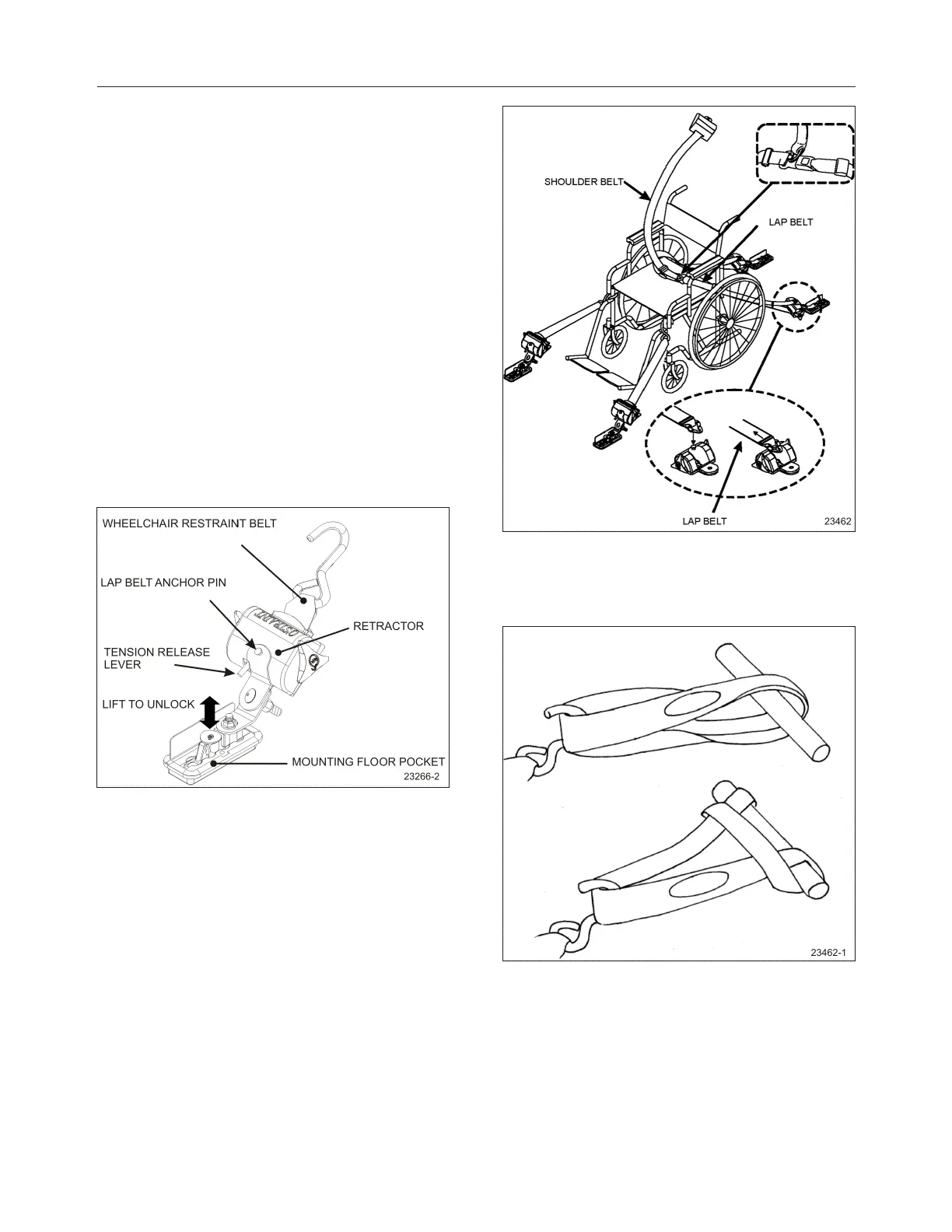

WHEELCHAIR ANCHORAGE SYSTEMS
To anchor the retractors, lift the floor pocket cover,
push in the retractor anchor then slide it until it locks
in place. Hook one wheelchair restraint belt to each
corner of the wheelchair frame (not the wheels) and
allow the retractors to tension the belts.
WHEELCHAIR RESTRAINTS AND ACCESSORIES
Use the blue webbing loops whenever the
wheelchair restraint belt hook cannot reach a stiff
member of the wheelchair chassis.
TYPICAL USE OF THE BLUE WEBBING LOOPS
To remove the restraint belts, release tension in the
locking mechanism by tightening the belt slightly
more with the retractor knob before pushing down the
tension release lever found on the retractor. Unhook
the wheelchair and allow the belts to retract. Guide
the belts in, making sure they remain untwisted as
they retract.
