Coach interior 3-5
PA-1628Operator's ManualH3-45 COACH
PNEUMATIC ISRI SEAT
PNEUMATIC DRIVER’S SEAT

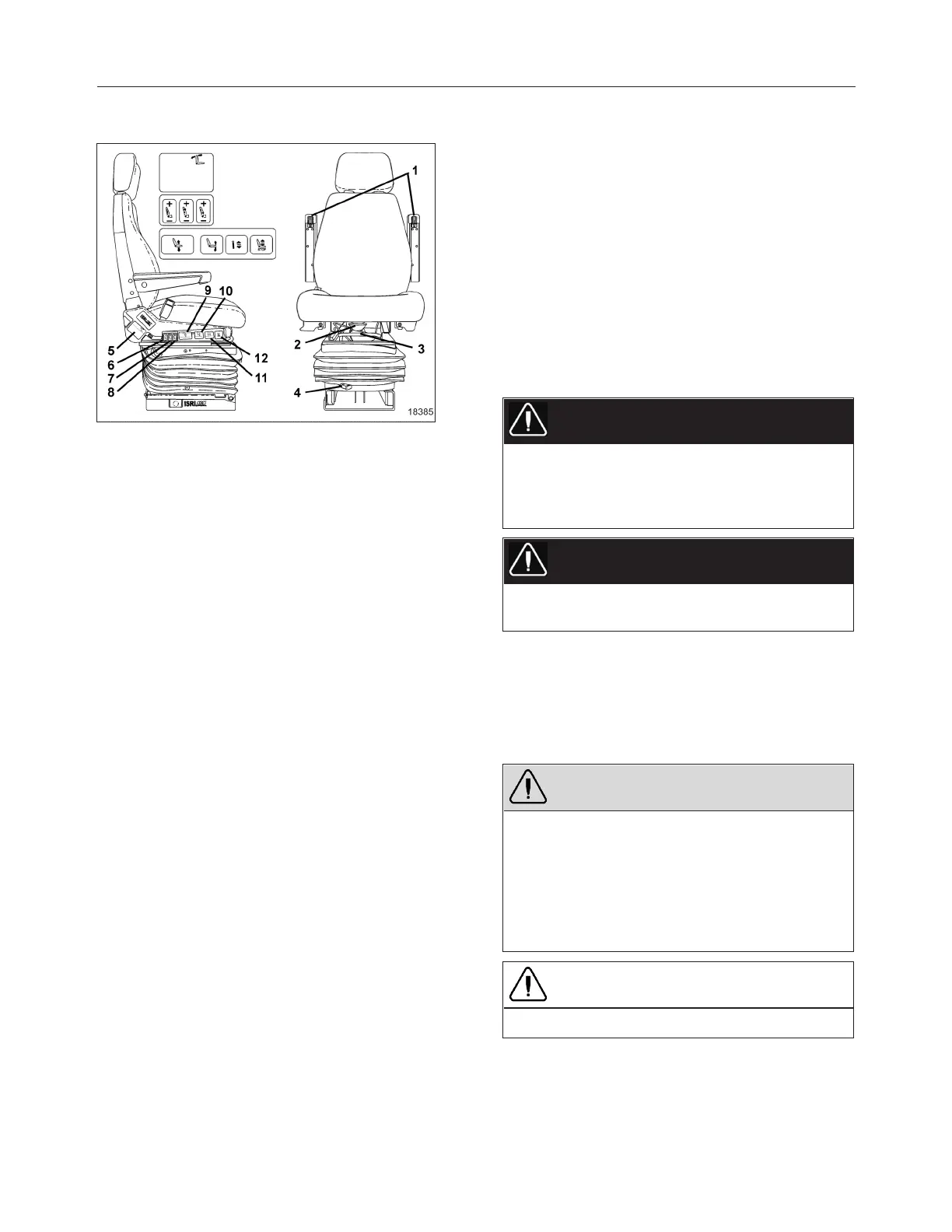

(1) Armrest
Rotate control knob to select desired arm-resting
angle. When not in use, raise armrest parallel with
backrest.
(2) Seat Cushion
Provides optimum comfort and support for any driver
size. Adjustable to 50 mm (2 inch) length.
(3) Fore-and-aft
Pull handle up and slide seat forwards or backwards
to adjust distance between seat and dashboard.
(4) Isolator
Reduces horizontal vibration, ensuring smooth ride.
(5) Backrest
Lift lever to select proper angle of backrest.
(6) Air Side Bolster
Offers desired side support to avoid body side-way.
(7) (8) Air Lumbar
Provides back support with upper and lower settings,
ensuring comfort during lengthy sitting.
(9) Air Height Adjustment
Moves seat up or down independently of other seat
settings. 100 mm (4 inch) total travel.
(10) Adjustable Seat Recline
Allows easy adjustment of four-setting inclination.
(11) Adjustable Shock Absorber
Choose stiff or soft ride infinitely.
(12) Quick Air Release
Exhausts all air from suspension, allowing for easy
entry/exit. Returns seat to previous position.
DRIVER’S SEAT – USSC 9100ALX
The coach can be equipped with USSC 9100 ALX air
suspension seat. This seat is equipped with 3-point
safety belts, lumbar supports, dual shock
suspension damping and quick dump air release.
This seat also features adjustable headrest.
DANGER
The driver’s seat must be adjusted to allow the
driver easy access to the coach controls. Never
adjust seat while driving vehicle as this could
result in loss of vehicle control.
DANGER
Make sure that seat is adjusted and that safety belt
is buckled up before diving vehicle.
DRIVER SEAT BELT
The driver’s seat is equipped with a retractable
safety belt as required by State, Provincial and
Federal regulations.
WARNING
A snug fit with the lap belt positioned low on the
hips is necessary to maximize driver safety. The
belt should not be worn twisted. Avoid pinching
belt and/or belt hardware in seat mechanism. Do
not wear belt over rigid or breakable objects, such
as eyeglasses, pens or keys as these may cause
injuries.
CAUTION
Never bleach or dry clean safety belt.
To fasten, pull seat belt out of the retractor and insert
the latch plate into the buckle until it clicks. No
special adjustment is required since the reel device
is self-adjusting. If seat belt operation becomes
To Next Page
