3-4 Coach interior
PA-1628Operator's ManualH3-45 COACH

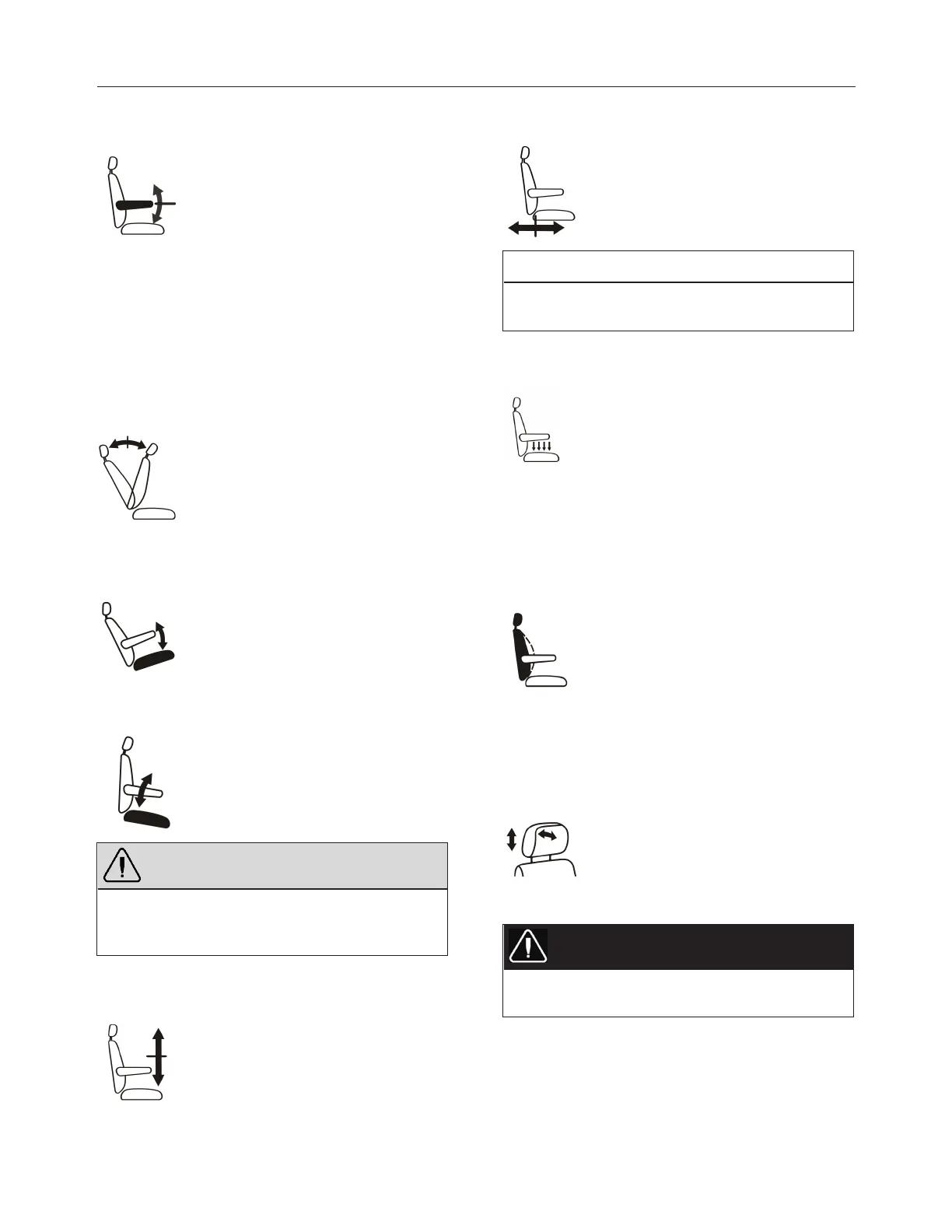

Armrest
The driver’s seat can be equipped with
two folding armrests.
To lower the armrest:
l Turn control knob #1 (refer to
figure: Driver’s seat adjustment
(mechanical)) counter-clockwise
without applying pressure on the
armrest
l Push the armrest down.
l Repeat procedure until desired
position is reached.
Backrest
Lift lever #2 then adjust backrest to the
desired angle.
Tilt (front)
To lower or raise the seat's front
section, pull handle #3 up and push or
pull the seat cushion.
Tilt (rear)
To lower or raise the seat's rear section,
pull handle #4 up and push or pull the
seat cushion.
WARNING
To avoid pinching the fingers between buckle and
controls, lower safety belt buckle before adjusting
seat height
Up and Down
Pull both handles (3 and 4) up to adjust
height of the seat.
Fore and Aft
To adjust distance between driver and
dashboard, pull handle #5 up and slide
the seat forward or backward.
NOTE
Fore-and-aft seat adjustment control may also be
located at the front of the seat.
Suspension
For maximum mechanical suspension
performance, rotate handwheel #6 until
your body weight (in pounds) is shown on
the indicator.
The seat suspension resistance can be changed to
suit the driver. Turn handwheel clockwise to
increase suspension resistance and counter-
clockwise to decrease resistance.
Lumbar Support
To inflate the upper lumbar support
bellows, depress the front rocker switch
#7 upward. To deflate, depress the
rocker switch downward.
Follow the same procedure to inflate and
deflate the lower bellows using the rear
rocker switch.
Headrest
The headrest can be adjusted forward,
rearward and vertically by 2 inches (50
mm). Directly move headrest to desired
position.
DANGER
For best protection, position headrest behind your
head, not behind your neck.
