Coach Exterior 2-9
PA-1628 Operator's Manual H3-45 COACH

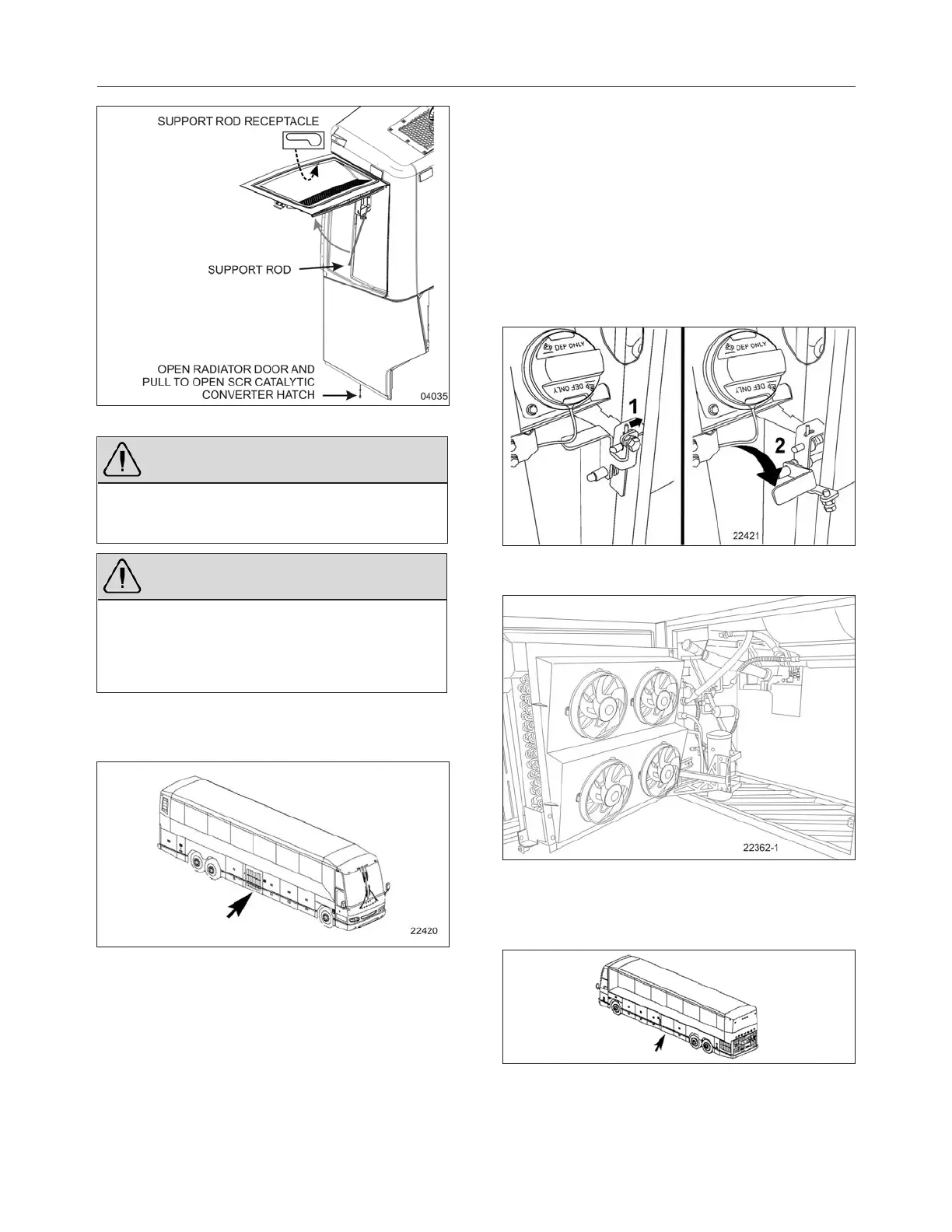

FIGURE 9: ACCESS TO THE SCR H3 SERIES
WARNING
After inserting the support rod into the receptacle,
make sure the rod supports the door securely from
falling down on to your head or body.
WARNING
External and internal temperatures remain hot long
after the engine has been shut down. Allow the
Exhaust Aftertreatment System to cool before
handling. Wear protective clothing and gloves
while servicing.
A/C CONDENSER COMPARTMENT
FIGURE 10: A/C CONDENSER COMPARTMENT
The following information is for vehicle equipped
with a central A/C system.
To open the condenser compartment door:
1. Open the fuel filler door first;
2. Move the latch bolt pin to the right as shown
(step 1 on image);
3. Rotate the latch handle as shown (step 2);
4. Open the door on the right side when facing it.
FIGURE 11: A/C CONDENSER COMPARTMENT DOOR
OPENING
FIGURE 12: CONDENSER COMPARTMENT
EVAPORATOR COMPARTMENT
The following information is for vehicle equipped
with a central A/C system.
