Controls and Instruments 4-29

PA-1628Operator's ManualH3-45 COACH

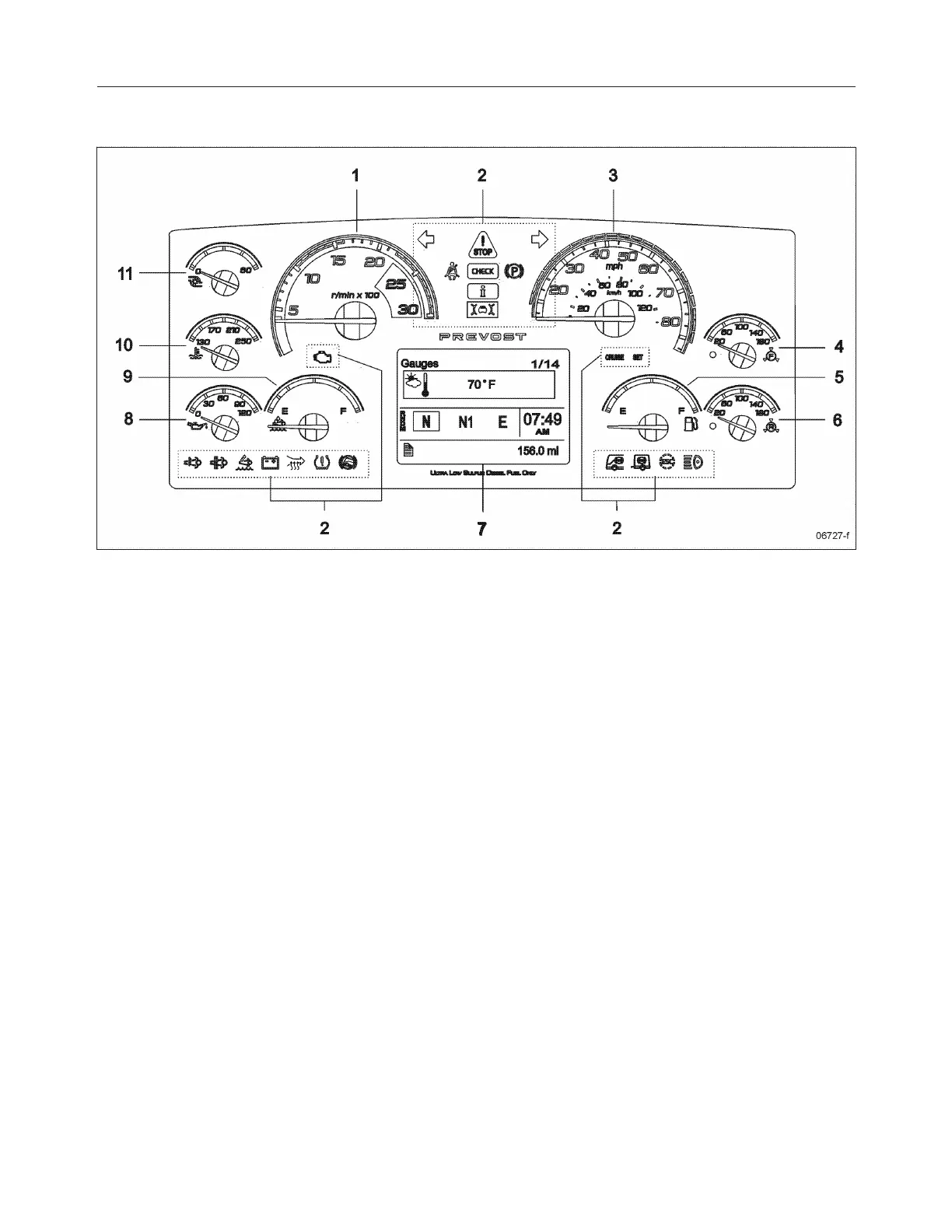

INSTRUMENT CLUSTER

1. Tachometer

2. Telltale lights

3. Speedometer

4. Front brake air pressure (secondary)

5. Fuel level

6. Front brake air pressure (primary)

7. Driver Information Display (DID)

8. Oil pressure indicator

9. DEF (Diesel Exhaust Fluid) level indicator

10. Engine coolant temperature

11. Turbo boost pressure
