PREVOST H3-45 - Appendix D; On-Screen Tpms

To Next Page

To Previous Page

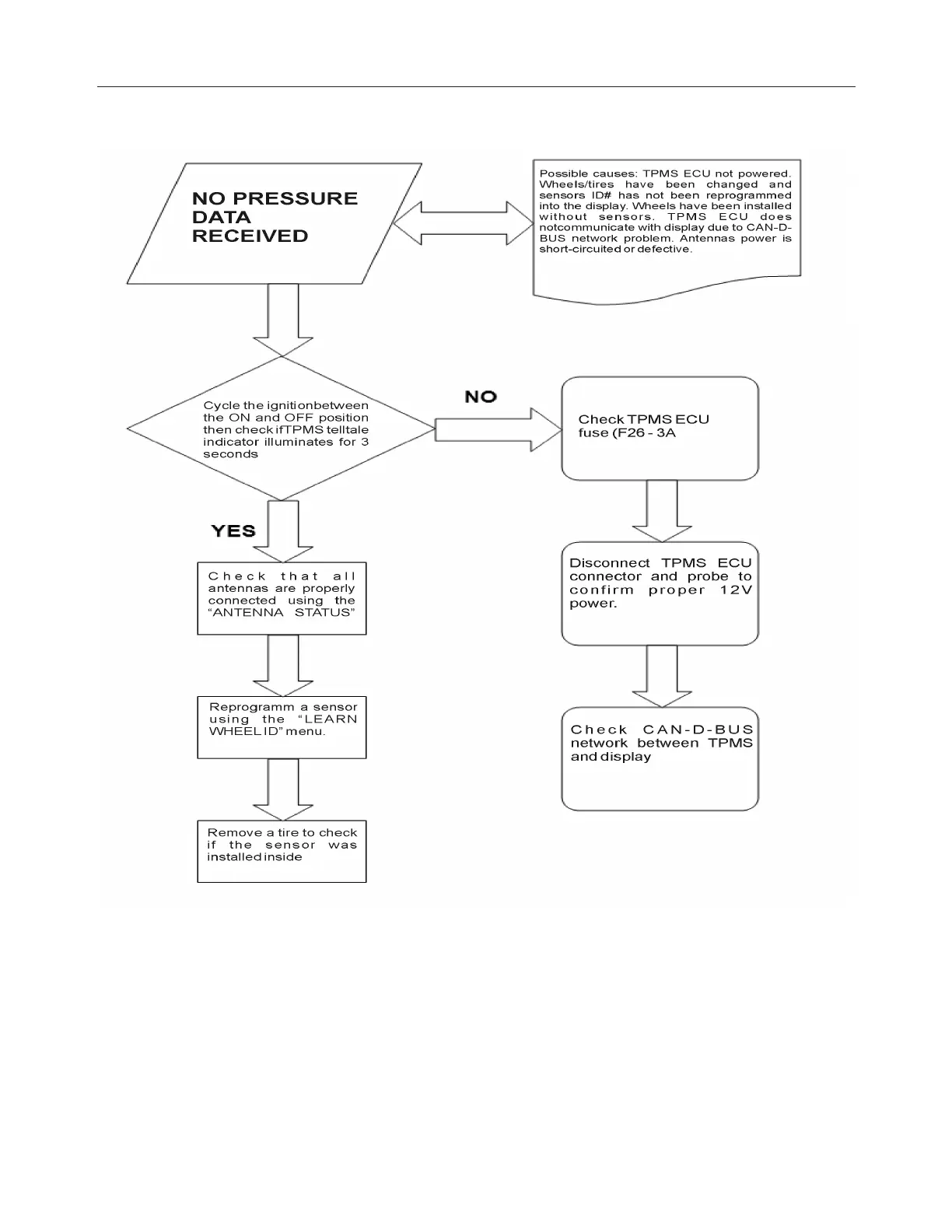

D-2 TPMS Troubleshooting Guide

PA-1628Operator's ManualH3-45 COACH

ON-SCREEN TPMS
