4-20 Controls and Instruments
PA-1628Operator's ManualH3-45 COACH
CAUTION
l Engage DCDL only under poor road surface
conditions.
l DCDL will not engage and will disengage in
speed higher than 5 mph.
l Do not lock DCDL when one or more
wheels are slipping, spinning or losing
traction. You can damage the drive axle.
l Using the rocker switch, unlock DCDL
when the need for improved traction has
passed otherwise it will re- engage auto-
matically as speed gets below 5 mph. Over
a prolonged period, this situation will
increase tire wear and stress to the vehicle.
l Do not engage during downhill operation.

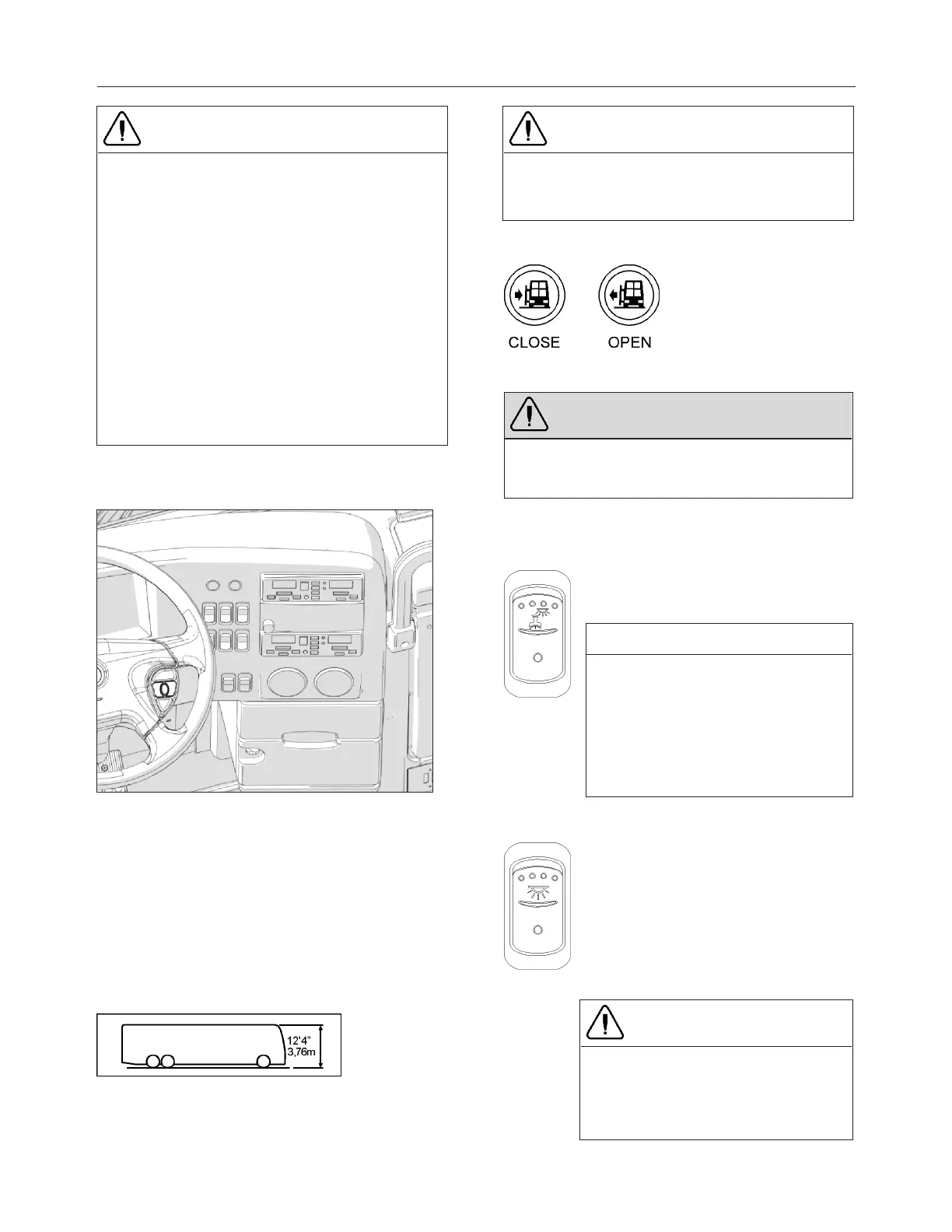

R.H. DASHBOARD PANEL
R.H. DASHBOARD PANEL
Controls for passenger entertainment are grouped on
the R.H. dashboard panel. The HVAC control
module as well as the cluster dimmer switch,
miscellaneous control switches and air vents are
also located on this side of the dashboard .
Vehicle clearance information may also be affixed in
this location.
Vehicle Clearance Information
Safe vehicle clearance height is 12’4" (3.76 m).
CAUTION
Vehicle clearance is higher when the ventilation
hatch is open (if installed) , Hi-Buoy is selected or
if additional equipment is installed on the roof.
Door Operating Buttons
Press and hold button to
open or close the door.
Releasing the button at
any time will immediately
stop door movement.
WARNING
The door mechanism has no automatic safety pro-
tection to avoid injury to bystanders. The driver is
responsible for the safe operation of the door.
Driver's Area Lighting
Press this rocker switch to turn on the
driver's overhead light as needed.
NOTE
The entrance overhead light and the
stepwell lights turn on with the
entrance door opening and turn off
with door closing. If the entrance door
is left opened, these lights will be
turned off automatically if the battery
voltage drops below 24.0 volts.
Interior Lighting
Press this rocker switch to the first
position to illuminate the aisle
fluorescent lighting. Press down the
second position to gradually illuminate
the in-station reading lights to 80% of
their intensity regardless if they were
turned off individually by passengers.
Lights will also turn OFF gradually.
CAUTION
To avoid running down the batteries
when the engine is off, turn off the
lights or connect the optional battery
charger to a 110-120-volt AC power
supply.
