3-8 Coach interior
PA-1628Operator's ManualH3-45 COACH

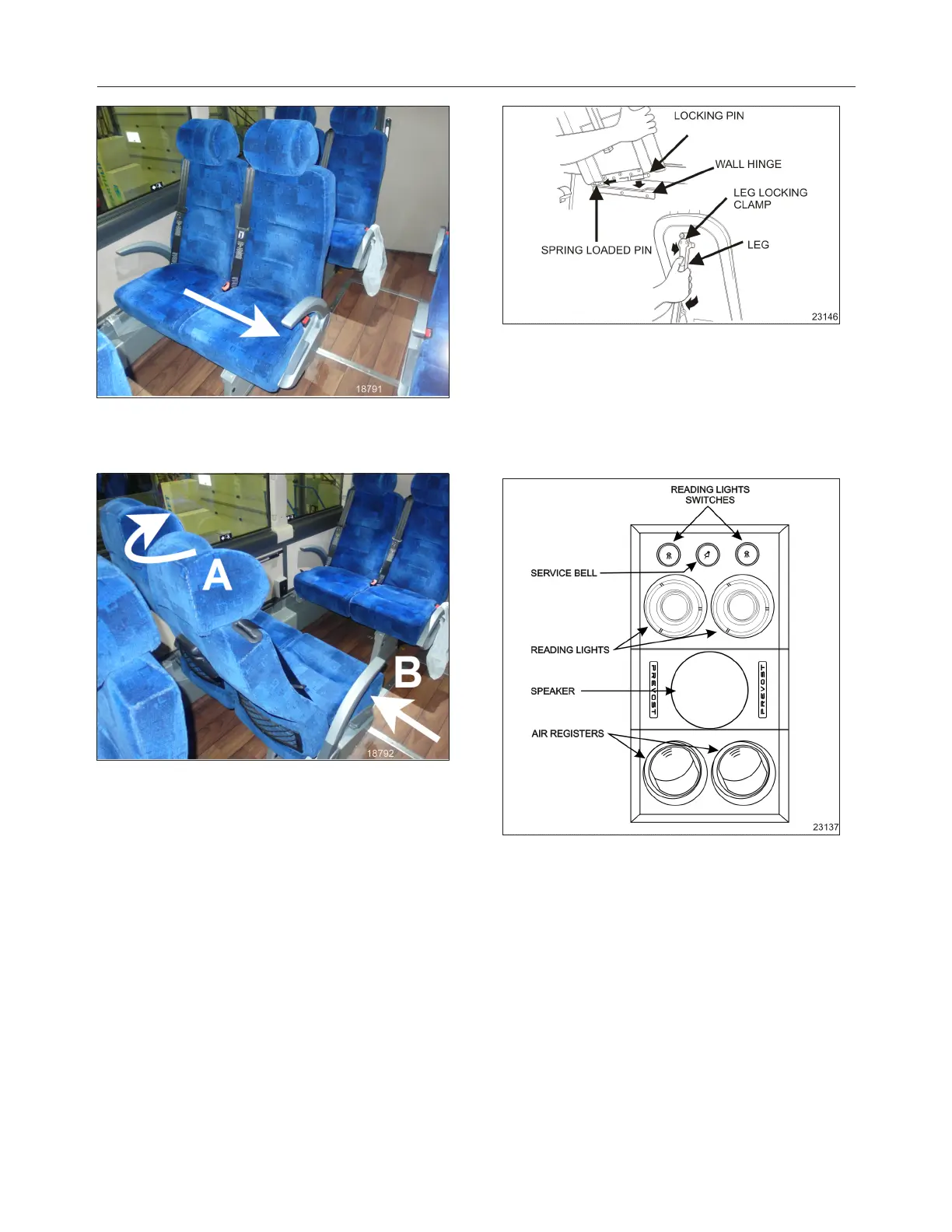

PULL TO UNLOCK THE ROTATATION
3. Rotate the seats until it stops (A) and push back
toward the window to lock rotation (B).
FINAL POSITION
4. Fasten the threaded-stud knob under the seat on
the aisle side.
TABLES
Two removable tables are provided as standard
equipment in the passenger swivel seat
configuration. The tables are stored in the overhead
storage compartments in separate stowage bags.
To install the table, hold it at 45
o
(degrees) to the side
wall. Insert the spring-loaded pin then the locking pin
into the hinge. Push on the locking clamp to release
the leg. Unfold the leg until the clamp locks it in
position.
REMOVABLE TABLE INSTALLATION
OVERHEAD CONSOLE
An overhead console is installed above each row of
twin seats. Amenities include reading lights, air
vents and an optional service bell.
OVERHEAD CONSOLE
ADJUSTABLE AIR REGISTERS
Manually adjustable registers located on the
overhead console provide air flow to the passengers.
Air flow can be directed, passengers can orient
individual registers by rotating the nozzle. To adjust
air flow, passengers must open or close the flaps.
Activation of the fans is done by depressing a rocker
switch on the dashboard. Refer to Controls &
Instruments.
