Coach Exterior 2-11
PA-1628 Operator's Manual H3-45 COACH
l MCM module
l Electronic ground stud
l Tire Pressure Monitoring System module

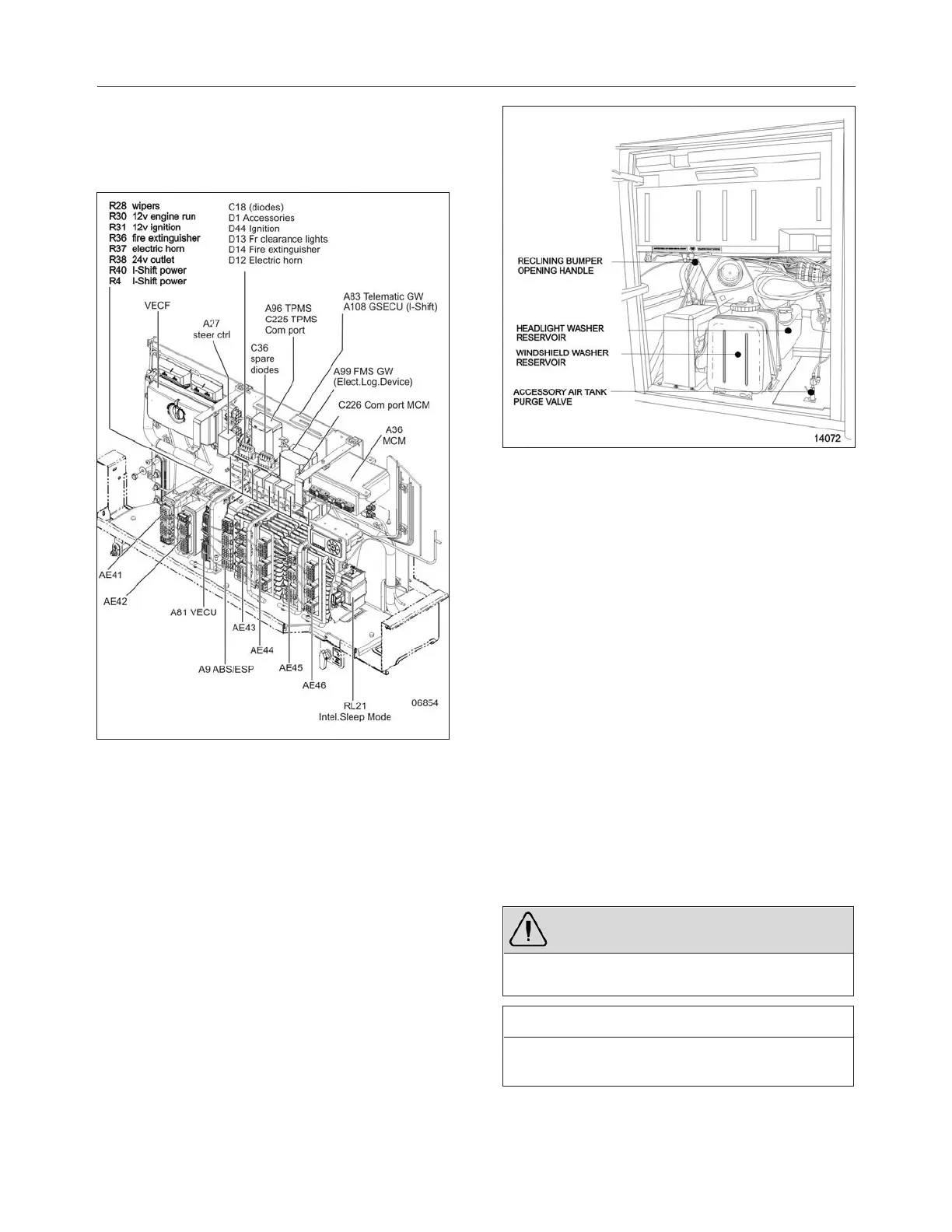

FIGURE 16: FRONT ELECTRICAL COMPARTMENT
FIGURE 17: FRONT ELECTRICAL & SERVICE
COMPARTMENT
BAGGAGE COMPARTMENTS
Baggage compartments can hold a maximum load
of 2500 lb each, spread evenly over the floor. The
total combined weight of cargo and passengers
must not exceed 15660 lb. The baggage
compartments can be locked or unlocked by using
the exterior compartment key.
Pressurized cylinders assist the opening and
closing of the baggage compartment doors.
To close, pull the door down by the notch in the
lower part of the door. Once below a certain point,
release the door and the cylinders will slam the
door shut. Push-in the top part of the door past the
safety catch on both sides to fully close.
Lights in the baggage compartments turn on
automatically when the door is open. A pictogram
appears on the DID when a compartment door is
open.
WARNING
To avoid injury, keep hands clear of door edge and
door frame when closing
NOTE
To prevent theft and vandalism, always lock all
doors before leaving the vehicle unattended.
