3-2 Coach interior
PA-1628Operator's ManualH3-45 COACH
UTILITY COMPARTMENTS
Two lockable utility compartments are located at the
base of the windshield. Another utility compartment
is located on the console, and includes a 12 volt
appliance socket.

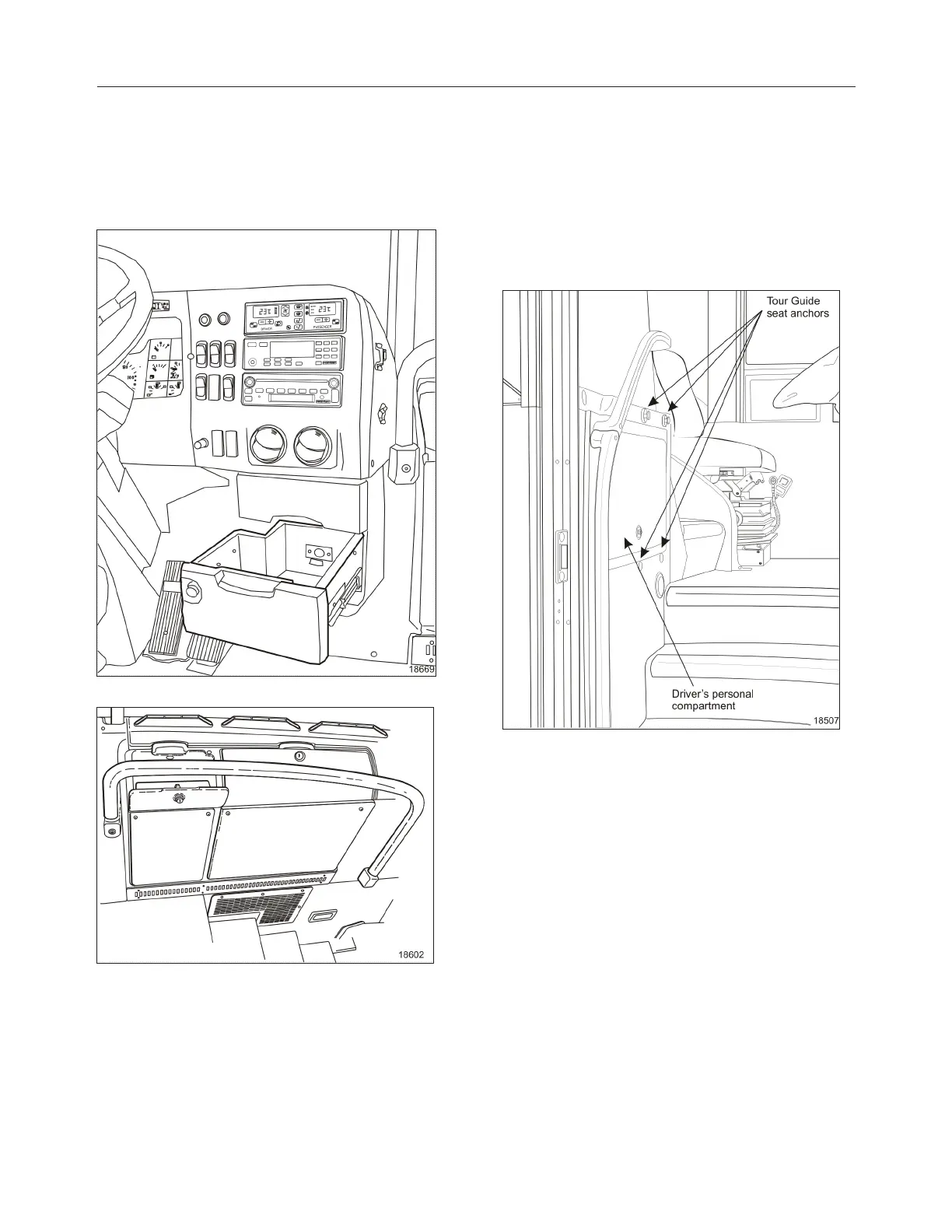

UTILITY COMPARTMENT IN CONSOLE
UTILITY COMPARTMENTS
DRIVER’S PERSONAL
COMPARTMENTS
A lockable compartment for the driver is located on
the L.H. side of the entrance stepwell. This
compartment may be locked using the appropriate
key. A tour guide seat is available as an option and is
installed in front of the driver’s compartment using
the securing devices as shown hereafter.
DRIVER’S PERSONAL COMPARTMENT
The last compartment is located on the lateral control
panel. It is lockable and equipped with a 12-volt
appliance socket. To open this compartment, you
must first depress the lock.
MICROPHONE JACKS
Up to six microphone jacks for the PA system can
be located in the following locations:
l On the side wall of the driver's control panel;
l On the right hand side of the dashboard;
l One optional outlet for the tour guide on each of
the modesty panels;
l One optional outlet on the lavatory wall, behind
the last row of seats;
l One optional outlet under the overhead storage
compartment, at the rear of the coach.
