4-4 Controls and Instruments
PA-1628Operator's ManualH3-45 COACH

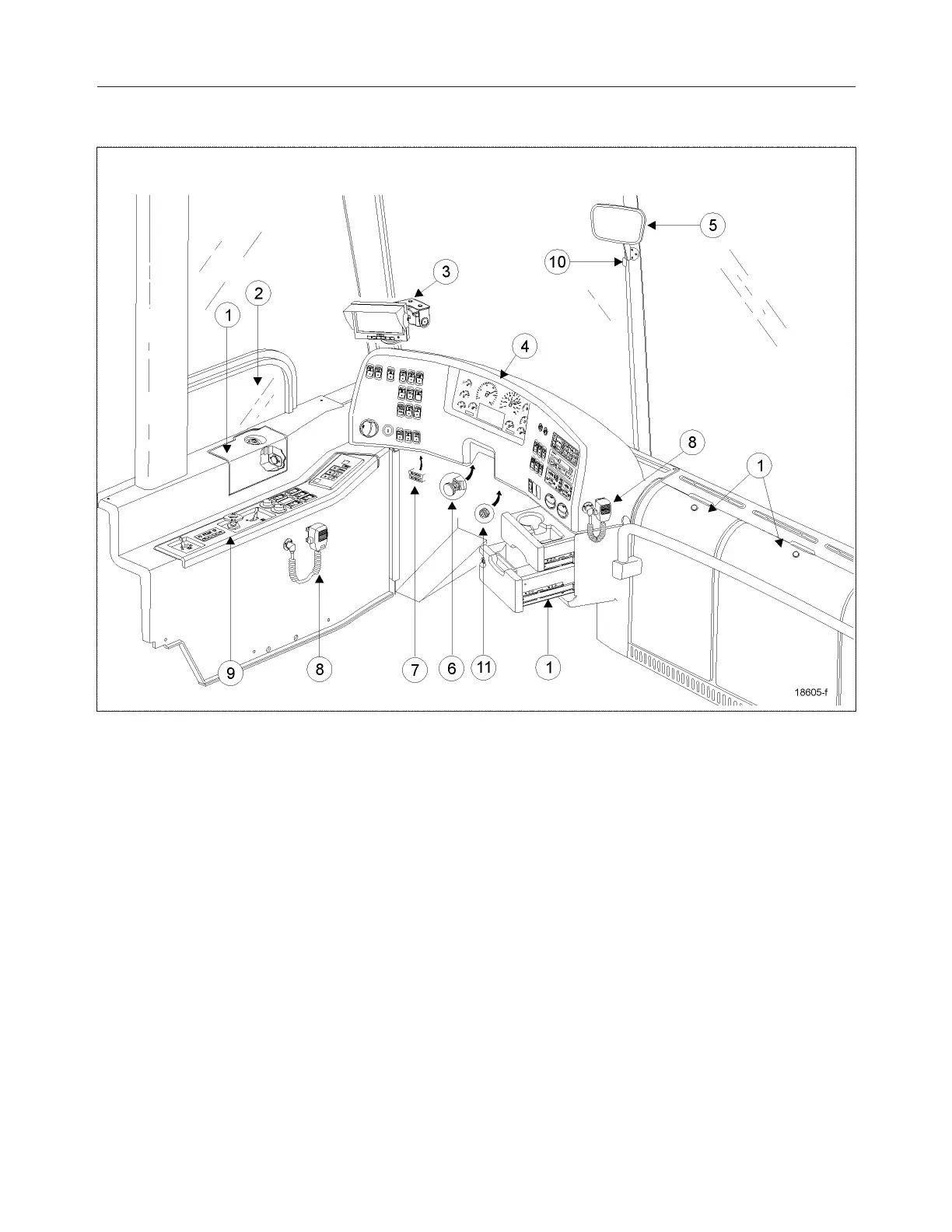

DRIVER’S AREA OVERVIEW
DRIVER'S AREA
1. Utility compartments
2. Driver’s power window
3. Back-up camera monitor and panoramic view camera
4. Dashboard
5. Mirror
6. Foot-operated steering wheel adjustment knob
7. Diagnostic tool receptacle (OBD)
8. Microphone
9. Lateral control panel
10. DVD player remote control IR sensor
11. Electronic Logging Device Connection (ELD)
