5-46 Other Features
PA-1628Operator's ManualH3-45 COACH

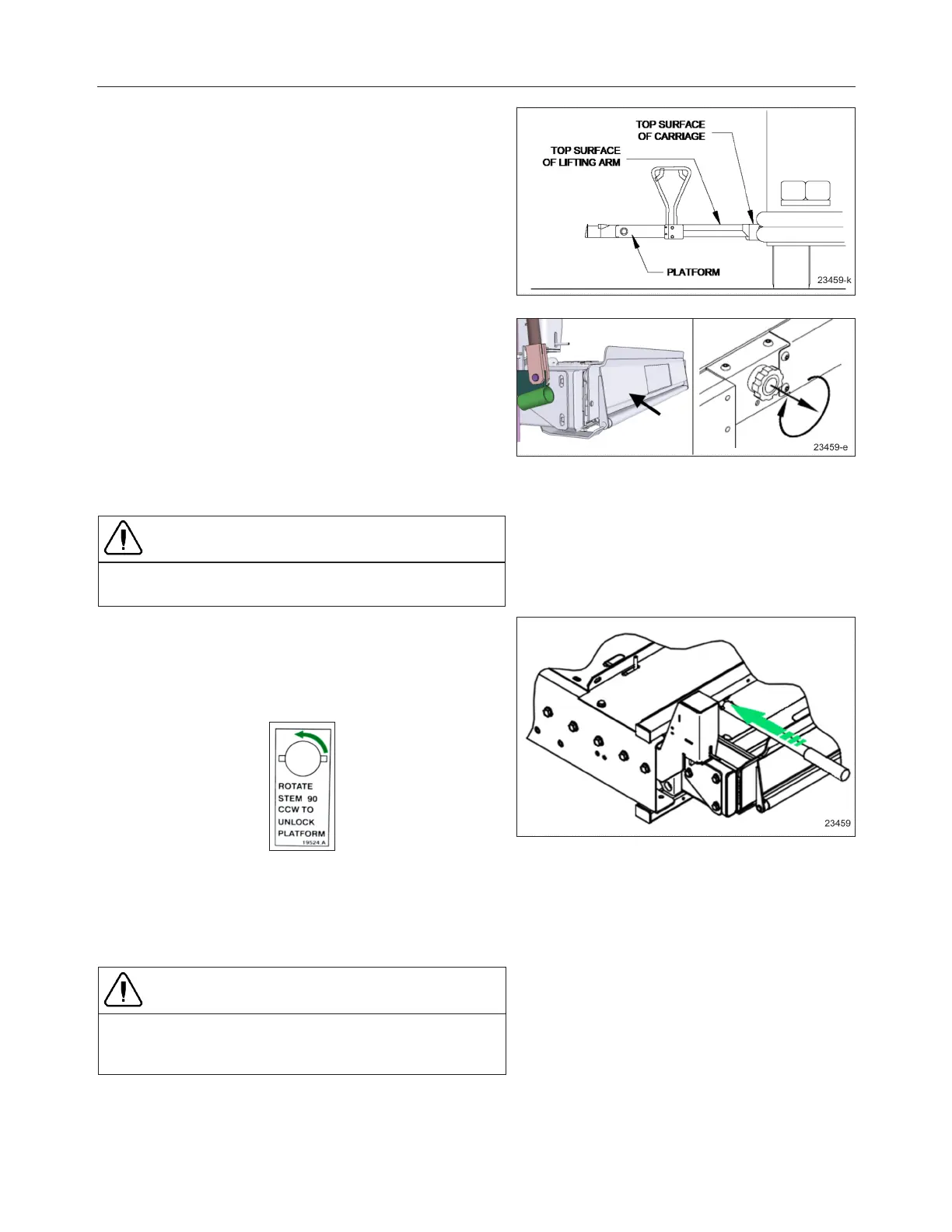

2. Raise the platform to stow height; position the top
surface of the platform lifting frame arm at the same
height as the top surface of the carriage. If the exact
height cannot be obtained, a slightly low platform is
preferred to slightly high. This alignment eliminates
interference between the platform and enclosure when
pushing the platform into the enclosure.
LIFTING ARM AND CARRIAGE AT SAME HEIGHT
3. Verify that rollstop is up (closed). Pull rollstop control
knob out and rotate fully clockwise, if it isn’t up.
4. Lift the left handrail upward out of its socket. Lower
handrail to platform. Repeat for right handrail.
CAUTION
An able-bodied person must stow the platform. Use caution
and avoid injury.
5. Engage either keyed release shaft with the pump
handle.
6. Rotate the shaft ¼- turn (as indicated on adjacent
decal).
DECAL
7. Grasp the top edge of the rollstop, or the handrails,
with two hands and push firmly. The platform moves
smoothly after an initial resistance. Push platform in
fully.
CAUTION
The platform must lock in place when fully stowed. Check
platform retention by attempting to pull platform outward; it
must not move.
To Next Page
