proper ventilation of the evaporator and heating
radiator cores. To clean filters, remove lint using a
nylon brush, back flush with water, then dry with air.
CAUTION
Do not use high pressure water jet to avoid
damaging filter.
CAUTION
Be sure not to reverse filter upon installation.
Driver’s Area Air Filter
The driver HVAC system's air filter is located behind
the dashboard R.H. side and it can be removed for
cleaning or replacement. To gain access to the A/C
filter, unscrew the grill located at the top step of the
entrance door steps, remove the plastic cover
holding the filter and slide out the air filter.
NOTE
If the windshield is continuously fogged, check
that the driver’s air filter is not clogged

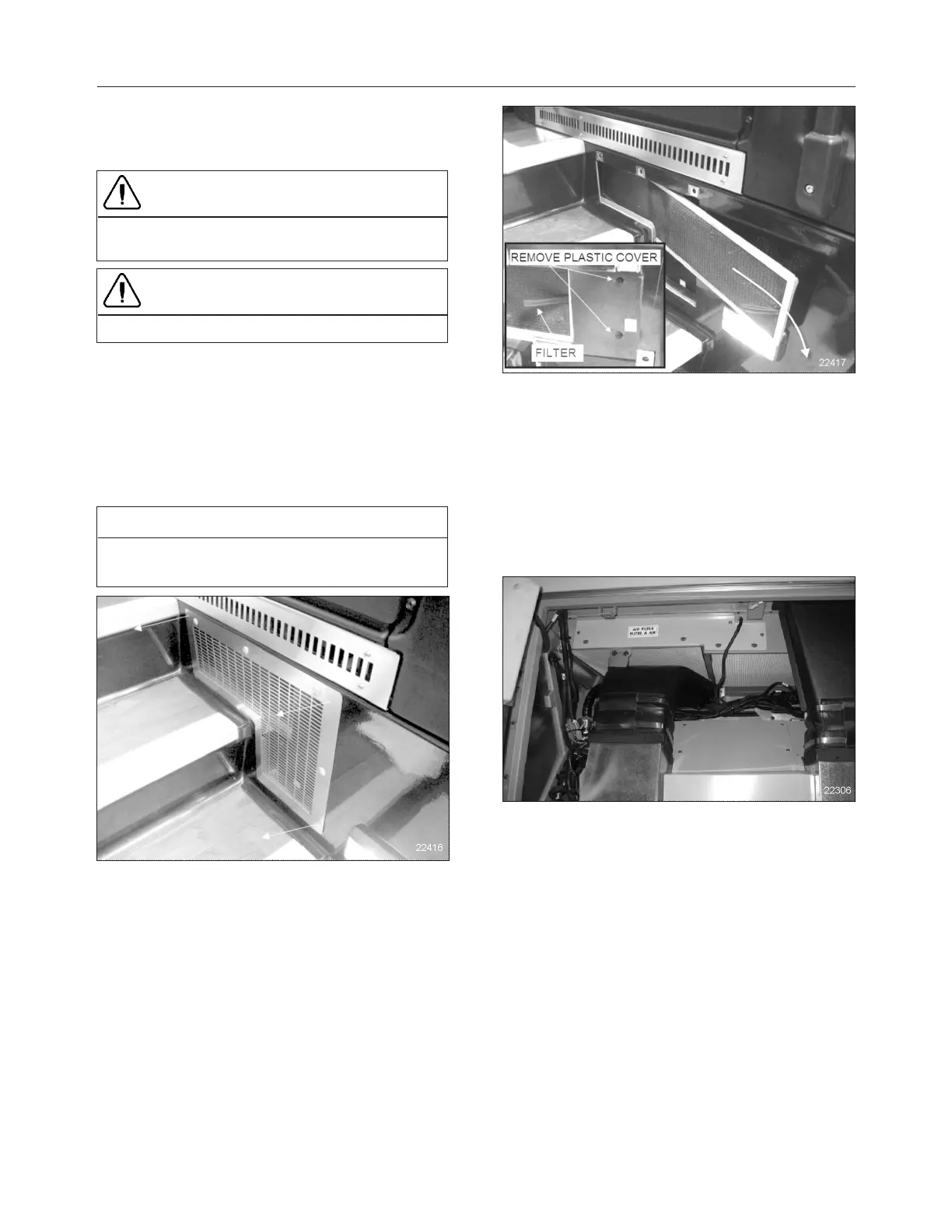

DRIVER'S AREA AIR FILTER GRILL REMOVAL
REMOVING DRIVER'S SECTION AIR FILTER
Cabin Area Air Filter
The central HVAC system's air filter is located in the
evaporator compartment on driver’s side of the
vehicle. To access open the evaporator
compartment. An access panel labeled “AIR
FILTER” is located above the evaporator and heating
coils. It is held shut by quarter-turn screws. Slide out
the filters for maintenance purposes.
CABIN AREA AIR FILTER REMOVAL
