Care and Maintenance 8-23
PA-1628Operator's ManualH3-45 COACH

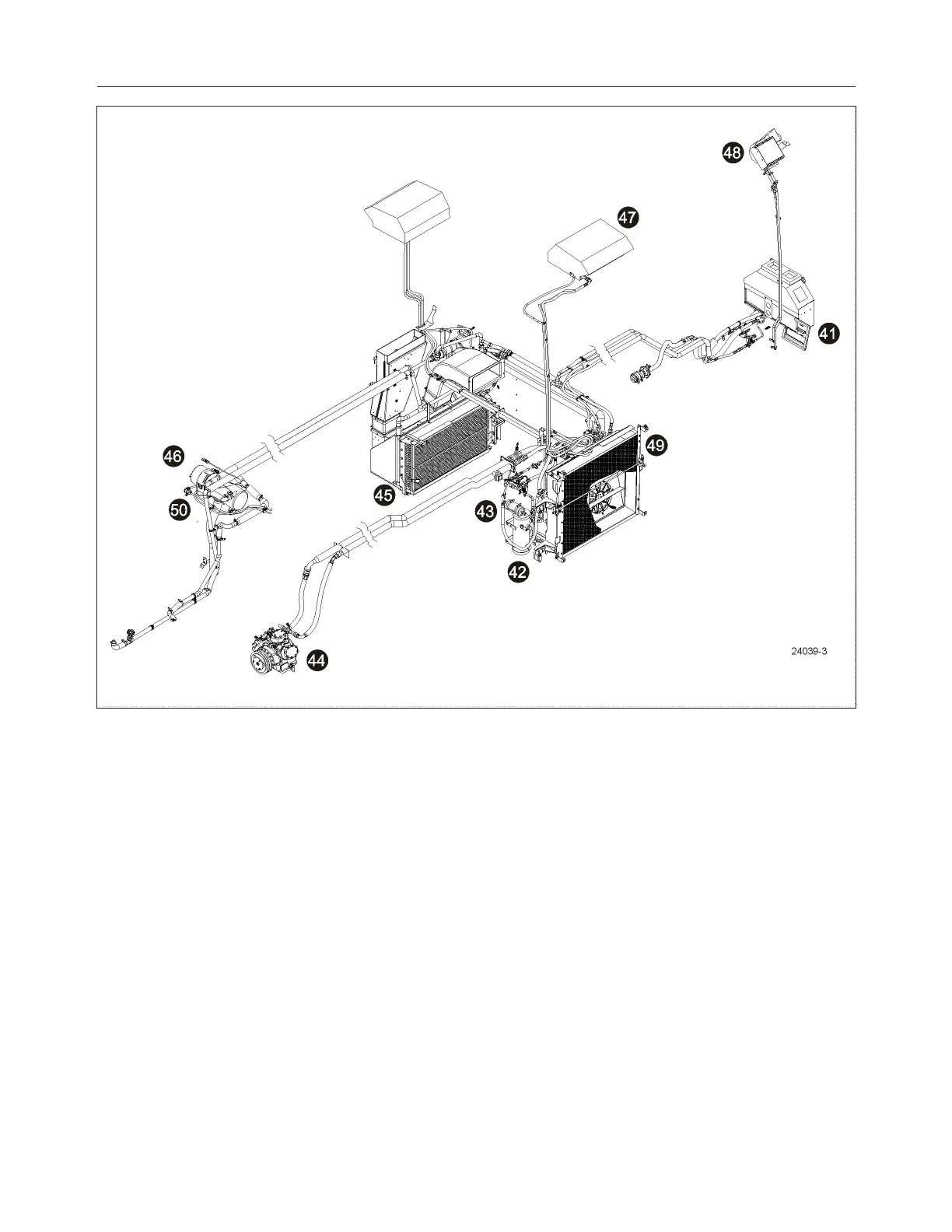

HVAC SYSTEM - MAIN COMPONENTS
41 HVAC air filter – driver’s unit 46 Coolant preheater
42 A/C receiver tank 47 A/C system – passenger’s overhead console
43 Refrigerant moisture indicator 48 Upper windshield defrost unit
44 A/C compressor 49 Condenser coil
45 HVAC air filter – passenger’s unit
