9-10 Technical Information
PA-1628Operator's ManualH3-45 COACH
TURNING RADIUS

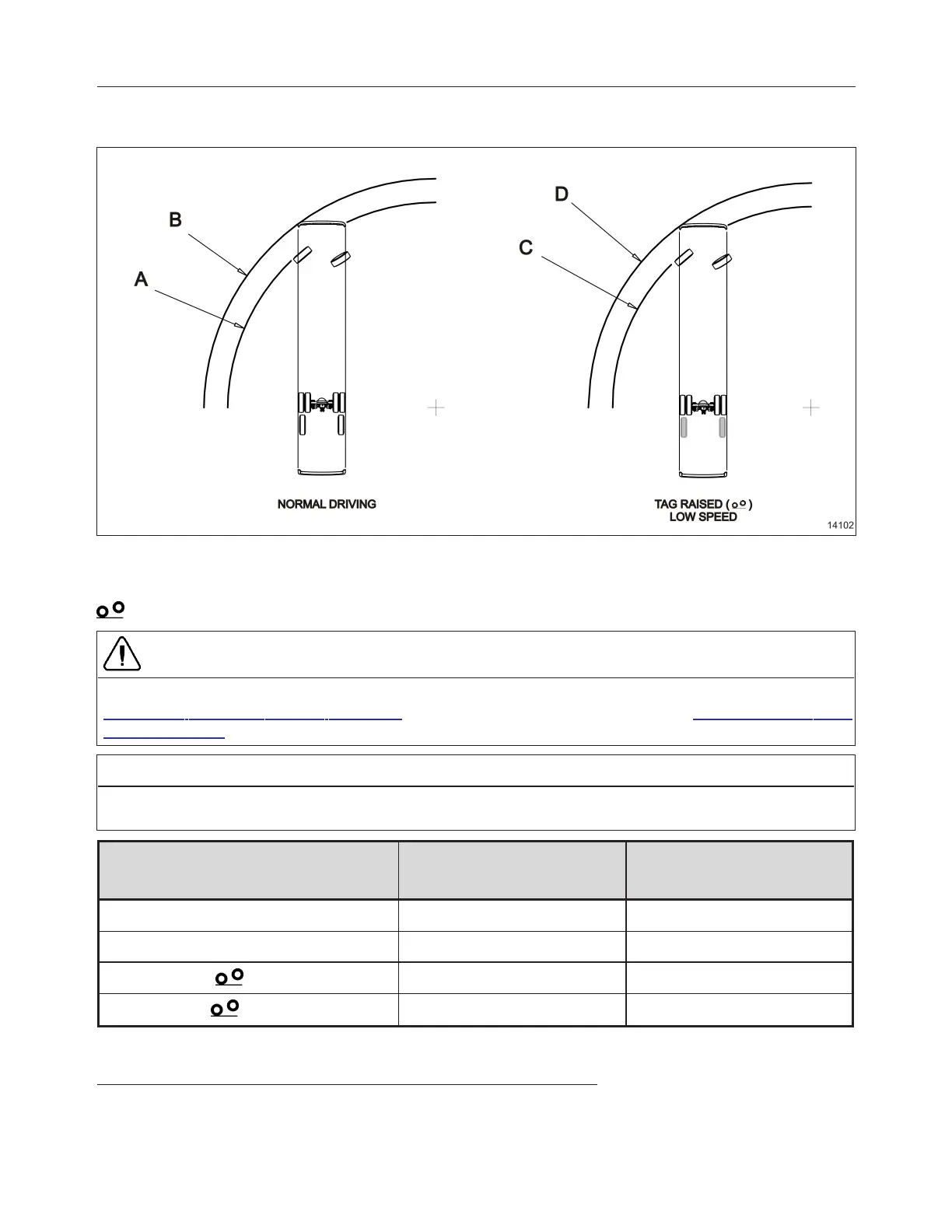

TURNING RADIUS DIAGRAM
Table below shows the turning radius values. The values are presented in by model and front axle type. Values A
and B are for normal driving. Values C and D show values for low speed maneuvering where the tag axle is raised
.
CAUTION
Do not drive vehicle with tag axle raised at speeds exceeding 12 mph (20 km/h). For additional details, refer to
"TAG AXLE CONTROL VALVE" on page14 in Section 4 Controls and Instruments and "RETRACTABLE TAG
AXLE" on page30 in Section 5 Other Features.
NOTE
Supplied values are theoretical. Factors such as ground surface, vehicle speed and road conditions may
significantly affect the turning radius.
Turning Radius
1
,
2
H3-45
w/ I-beam Axle
H3-41
w/ I-beam Axle
A (Curb to Curb) 12.61m (41'4") 10.88m (35'9")
B (Wall to Wall) 13.84m (45'5") 12.11m (39'9")
C (Curb to Curb)
12.05m (39'7") 10.32m (33'10")
D (Wall to Wall)
13.28m (43'7") 11.54m (37'11")
1
Curb to Curb value corresponds to the outer tire's track on the ground.
2
Wall to Wall value includes the vehicle's body overhang.
