Controls and Instruments 4-23
PA-1628Operator's ManualH3-45 COACH

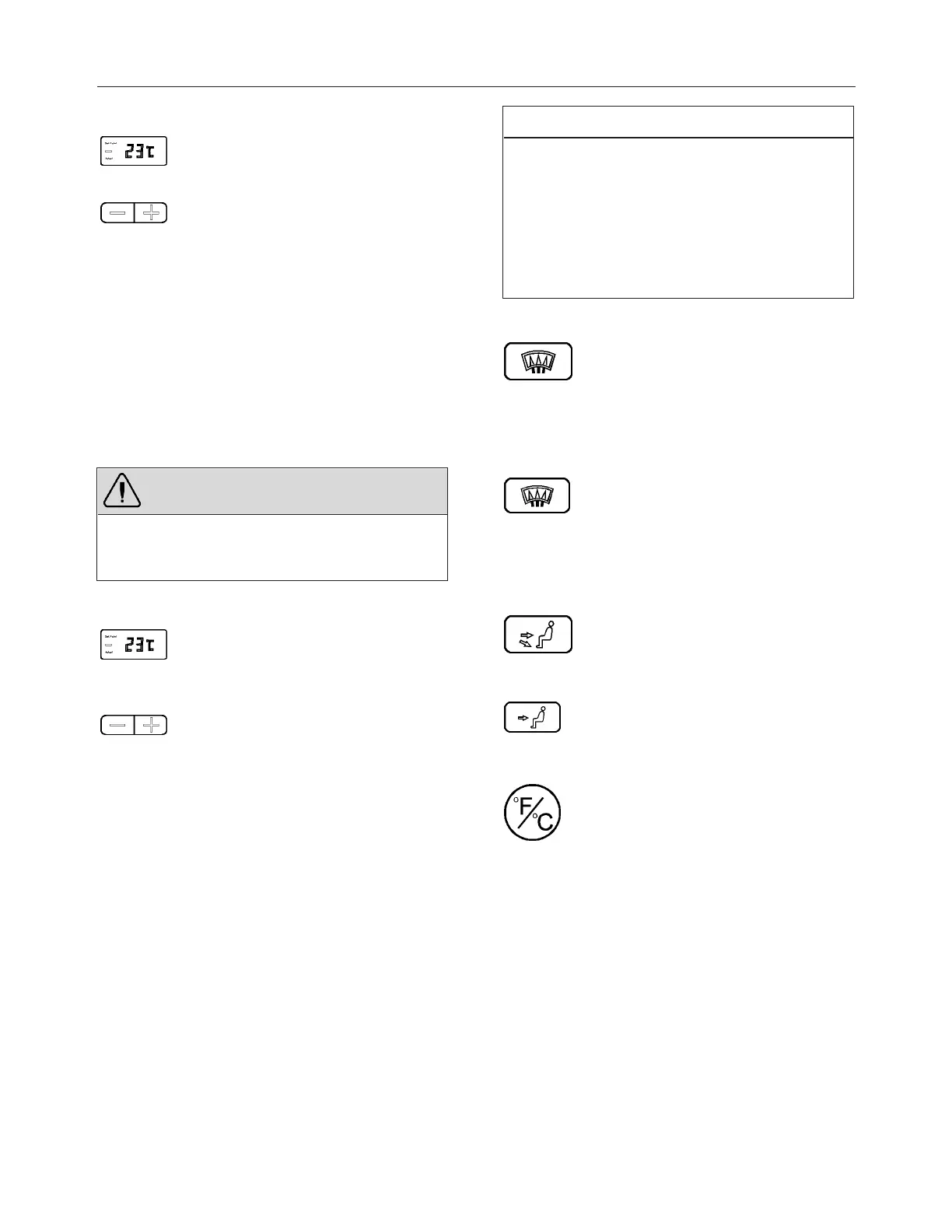

Driver's Section Temperature Setting
The temperature displayed on the
driver's side HVAC control unit is the
temperature set point.
To increase the temperature set point,
press the "+" sign, to decrease the
temperature set point, press the " - "
sign. Temperature range is between
60°F and 82°F (16°C to 28°C). On the
driver’s side only, asking for a
temperature set point above 82°F (28°C)
will keep the coolant valve open and
“FUL” will be displayed.
In case of interior temperature sender
unit failure, the coolant valve will remain
open and three lines “- - - “will be
displayed.
WARNING
Warm temperatures may cause drowsiness and
affect alertness while driving. Keep the
temperature comfortable but not too high.
Passenger's Section Temperature Setting
The temperature displayed on the
passenger's side HVAC control unit is
the actual temperature in the
passenger's area.
To increase or decrease the temperature
set point in the passenger's area, press
on the "+" or the "- " sign. Pressing
these buttons will flash the displayed set
point and the word "SET" will highlight.
Temperature range is between 60°F and
82°F (16°C to 28°C).
In case of interior temperature sender
unit failure, the coolant valve will remain
open and three lines “- - - “will be
displayed. The driver can nevertheless
control the temperature by adjusting the
temperature set point above 72°F (22°C)
to heat and below 72°F (22° C) to cool.
NOTE
Upon starting of the vehicle, when the ambient
temperature is very cold and so is the inside of the
vehicle, the HVAC control unit will allow a
temperature overshoot up to 3° over the
passenger’s area set point to help warming up of
the area because some parts of the vehicle like the
seats and the overhead compartments accumulate
cold.
Windshield Defogger
Upon pressing this button, the dashboard
damper sends air only to the lower
windshield. The fan is turned on to
maximum speed, the fresh air damper
opens completely (REC off) and the
driver set point is increased to 4°F (2°C)
over the passenger's section set point.
The dashboard damper sends air only to
the lower windshield when activated.
The footwell damper is also closed but
the fan speed can be reduced or
increased.
Panel And Footwell
The dashboard damper sends air to the
panel vents and footwell.
Panel
Air is sent to panel registers. The foot
damper is closed.
Temperature Degree Selector
Toggles the HVAC control unit
temperature units between Fahrenheit and
Celsius. The driver’s section must be on.
Also toggles the outside temperature units
displayed on the telltale panel.
