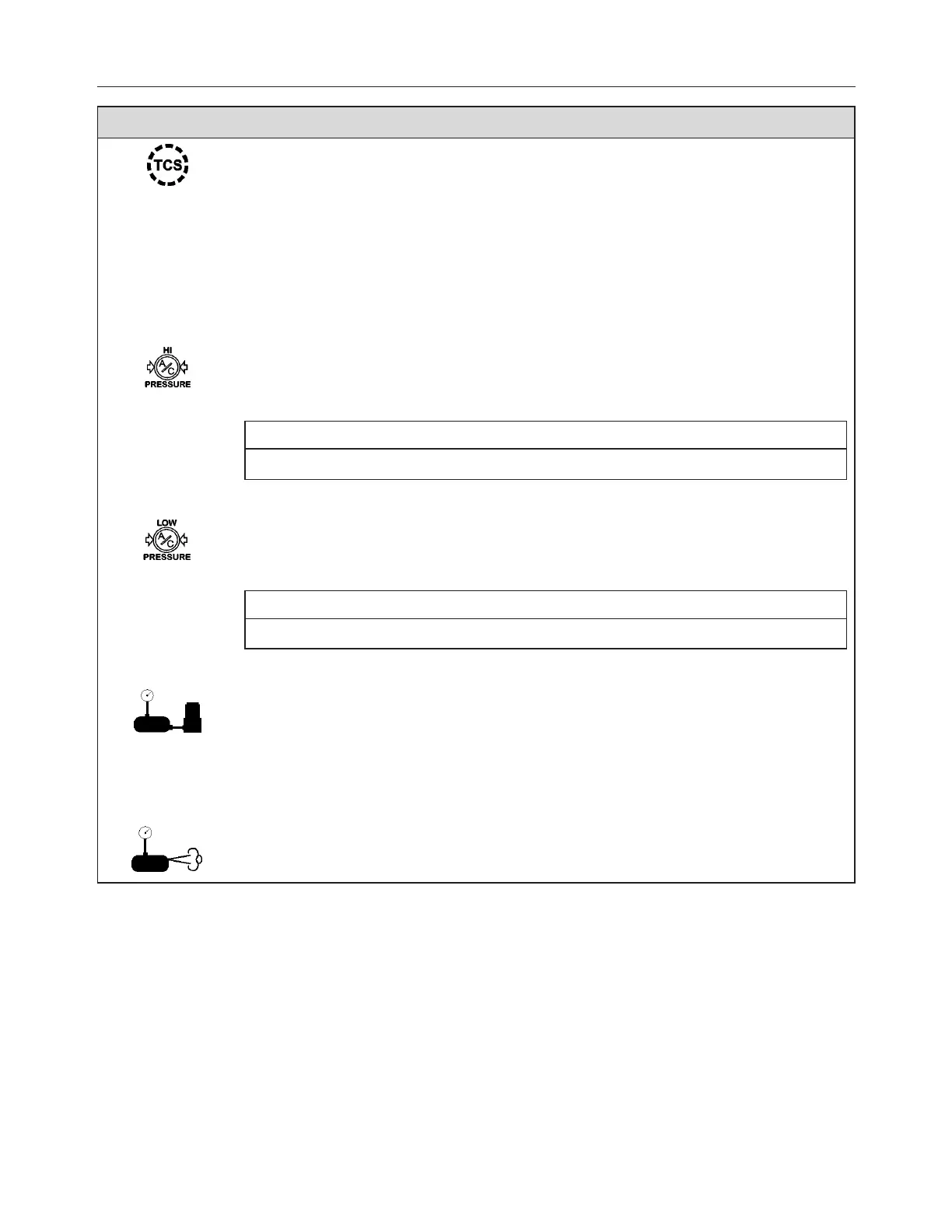

Pop-up Pictograms
TCS traction control system and electronic stability control
At vehicle ignition, the TCS icon appears for approximately 2 seconds and then
disappears.
If it remains on steadily (not flashing) after ignition, or if it is on steadily while you are
driving, the TCS system may not be fully functional or the operation may be completely
disabled. If this happens, your vehicle will still have normal service braking and it still can
be driven, although without the benefits of the TCS system.
Flashes slowly when TCS Mud/Snow mode is turned on using the Mud/Snow switch.
Flashes quickly when TCS intervenes to reduce risk of loss of control.
A/C System Pressure High
This pictogram indicates that the A/C system pressure is too high. If the A/C pressure is
too high, the compressor clutch is disengaged, but the fan remains activated.
NOTE
When outside temperature is high, it is possible and normal for that pictogram to appear.
A/C System Pressure Low
This pictogram indicates that the A/C system pressure is too low. If the A/C pressure is
too low, the compressor clutch disengages and the fan stops.
NOTE
When outside temperature is low, it is possible and normal for that pictogram to appear.
Compressor/air dryer fault
This pictogram indicates that a risk of water in the pneumatic system has been detected
due to a compressor or air dryer related problems. Possible causes are:
l Compressor is used at an unusual (high) rate.
l A fault with the air system has been detected.
Air leakage
This pictogram indicates that an air leak has been detected in the pneumatic system.
