Section 06: ELECTRICAL
PA1593
9
2. X3 SERIES COACH

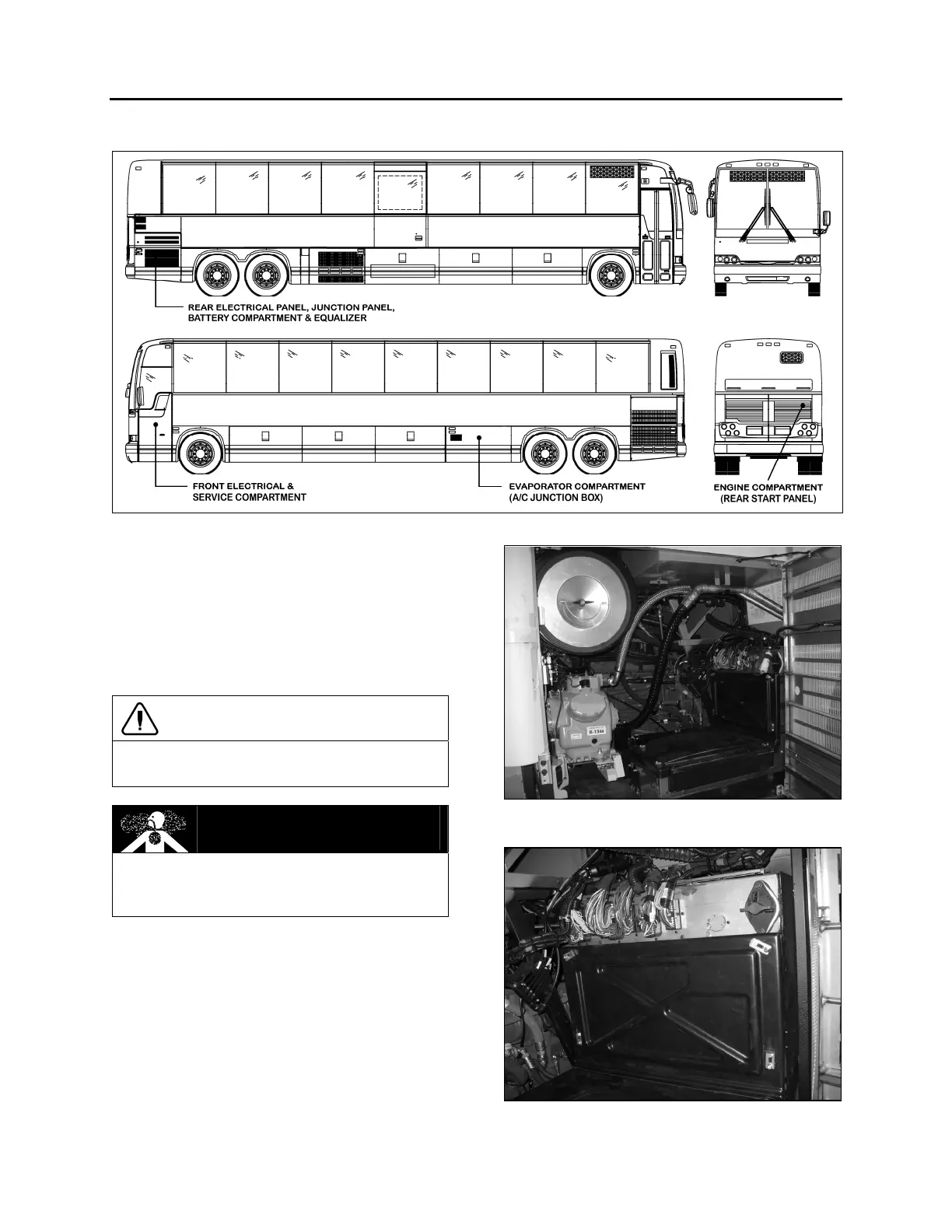

FIGURE 4: ELECTRICAL COMPARTMENTS (X3-45 COACH) 06672
2.1 MAINTENANCE
A corrosion inhibitor has been sprayed on
certain electrical components in order to protect
them from corrosion. Refer to procedure
SAV00002E at the end of this section for
recommended products and where they are
used.
CAUTION
Never put grease or other product on the
multiplex modules connector terminals.
DANGER
Use sprayed sealer in a well ventilated area.
Do not smoke. Avoid prolonged contact with
skin and breathing of spray mist.
2.2 REAR ELECTRICAL PANEL, JUNCTION
PANEL, BATTERY COMPARTMENT &
EQUALIZER
The rear electrical panel, junction panel, battery
compartment & battery equalizer are located on
the R.H. side of the engine compartment and
are accessible from the engine compartment
curb-side door.
FIGURE 5: REAR ELECTRICAL PANEL, JUNCTION
PANEL & BATTERY COMPARTMENT
FIGURE 6: REAR ELECTRICAL PANEL
