Section 06: ELECTRICAL
PA1593
33

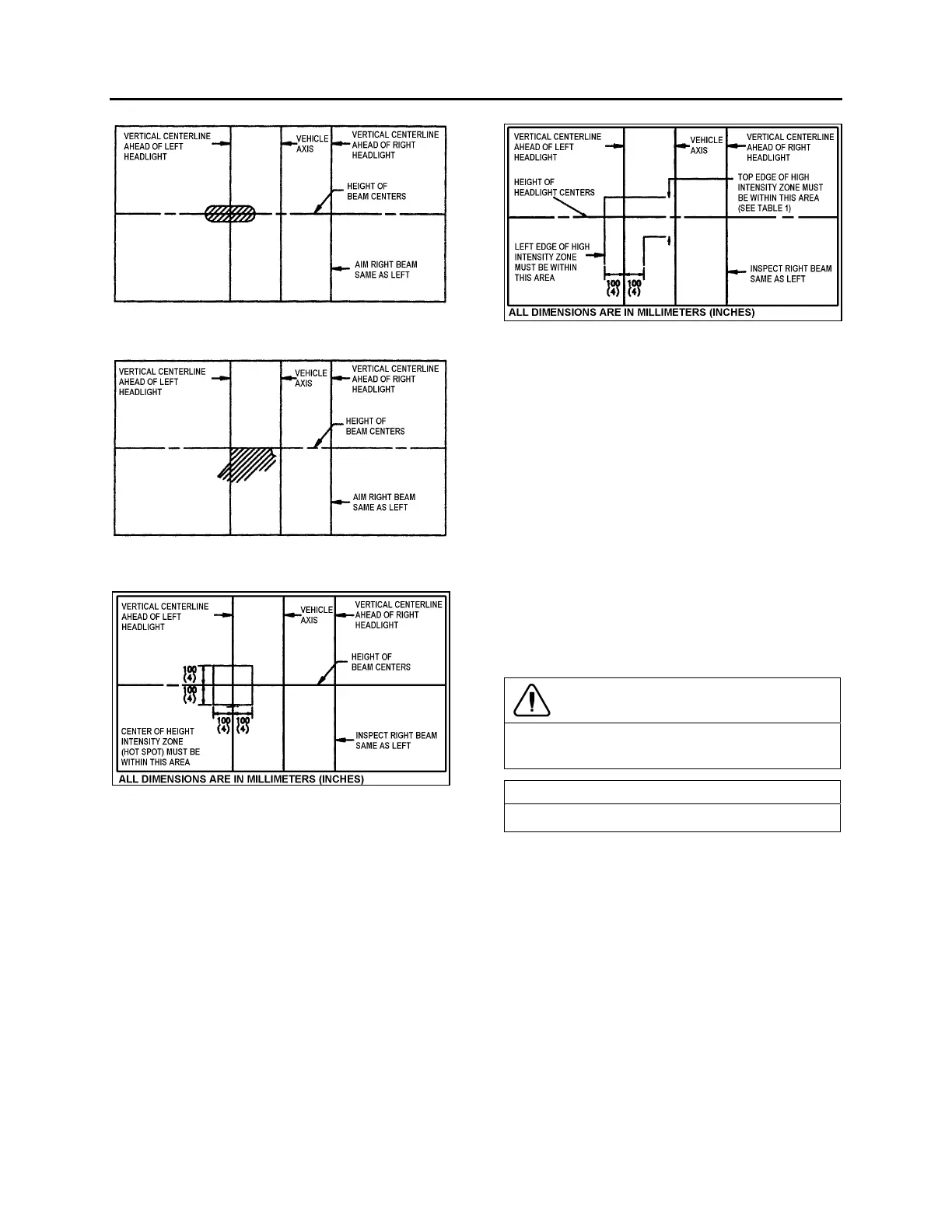

FIGURE 31: HIGH-INTENSITY ZONE (SHADED AREA) OF
A PROPERLY AIMED UPPER BEAM ON THE AIMING
SCREEN 7.6 M (25FT) IN FRONT OF VEHICLE
06503
FIGURE 32: HIGH-INTENSITY ZONE (SHADED AREA) OF
A PROPERLY AIMED LOWER BEAM ON THE AIMING
SCREEN 7.6 M (25FT) IN FRONT OF VEHICLE
06504
FIGURE 33: AIM INSPECTION LIMITS FOR UPPER-BEAM
HEADLIGHTS
06505
7. The inspection limits in the vertical direction
for low-beam headlights or the low beam of
a dual-beam headlight, shall be as
described in Table 1. In the horizontal
direction, the left edge of the high-intensity
zone shall be located from 10 cm (4 in) left
to 10 cm (4 in) right of the vertical centerline
of the beam. The viewing screen shall be
located 7.6 m (25 ft) in front of the vehicle
(Fig. 34).
FIGURE 34: AIM INSPECTION LIMITS FOR LOWER-
BEAM HEADLIGHTS
06506
10.1.4 Sealed-Beam Unit
Bulb Removal and Replacement
1. Pull the release handle located inside the
front service compartment to tilt down the
entire bumper assembly.
2. Remove the headlight screw fixing the
headlight assembly, then tilt headlight
assembly down (Fig. 27 and 29).
3. Remove connector from headlight bulb.
4. Remove the bulb by pushing and rotating it
out of the socket.
5. Install the new bulb by reversing the
previous procedure.
CAUTION
During this step, avoid contacting the bulb
with the fingers not to alter the bulb life.
NOTE
Do not disrupt headlight adjustment screws.
Module Replacement
1. Pull the release handle located inside the
front service compartment to tilt down the
entire bumper assembly.
2. Remove the headlight screw fixing the
headlight assembly, then tilt headlight
assembly down (Fig. 27 and 29).
3. Remove connector from headlight bulb.
4. Unfasten three metal clips attaching
headlight unit to support.
5. Install new module and fasten metal clips.
6. Install wiring connector on back of new
sealed beam unit.
