SECTION 01: ENGINE
PA1593
15
1.6 ENGINE MOUNTS
The power plant assembly is mounted to the cradle by means of rubber mounts and supports.
Two engine support brackets are used at the front of the engine while two rubber mounts are mounted
underneath the engine & radiator fan drive mechanism support and the engine & alternator support
(Fig. 13).
It is recommended that new rubber mounts be installed at each major overhaul.
NOTE
Refer to the table on the following page for engine cradle tightening torques.

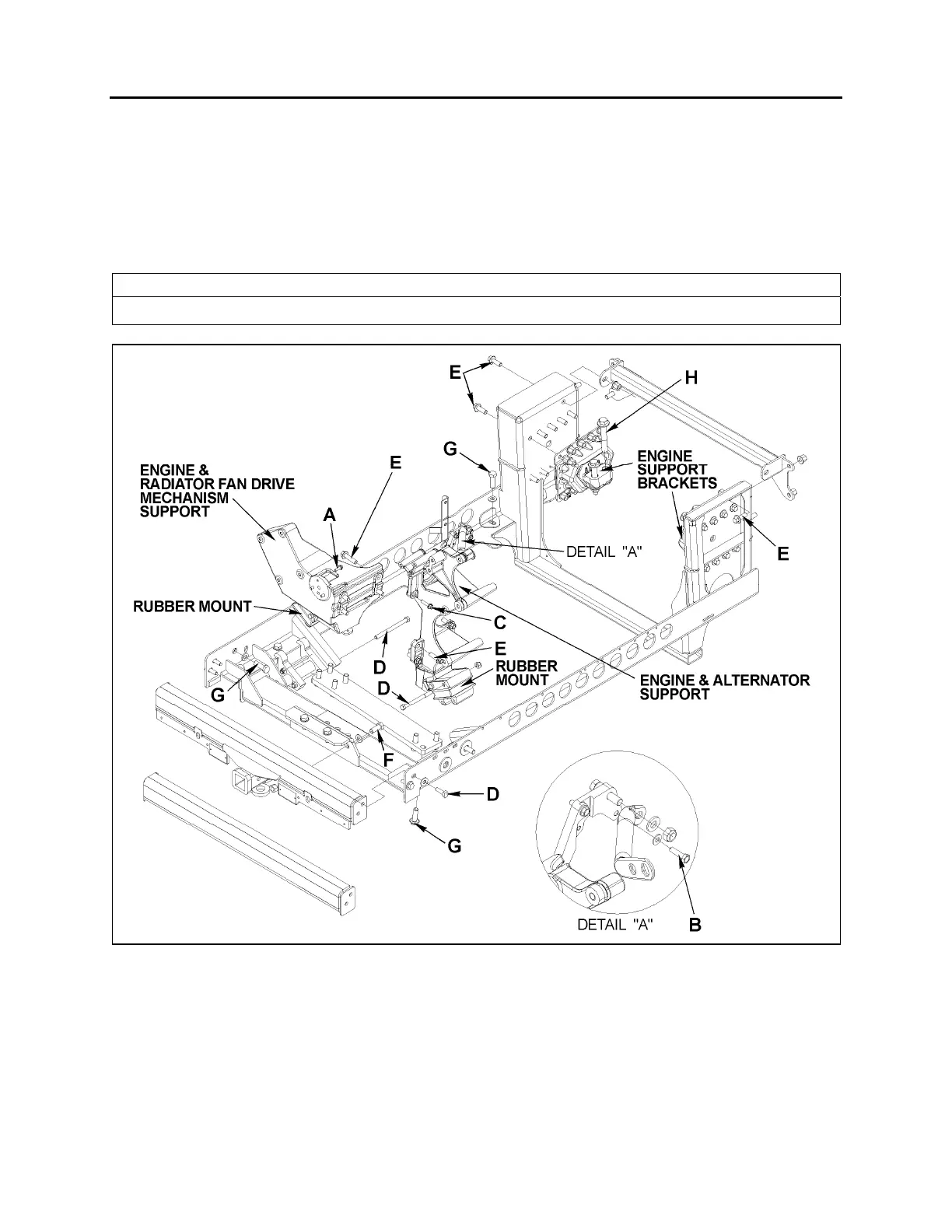

FIGURE 13: VOLVO ENGINE POWER PLANT CRADLE INSTALLATION
