Section 18: BODY
PA1593
16
remove the two bolts on each bumper side to
separate the bumper from the compartment
door. To install bumper, reverse the removal
procedure.
WARNING
Front bumper is heavy. Use proper lifting
equipment to support the bumper during the
removal and installation operations to avoid
personal injury.

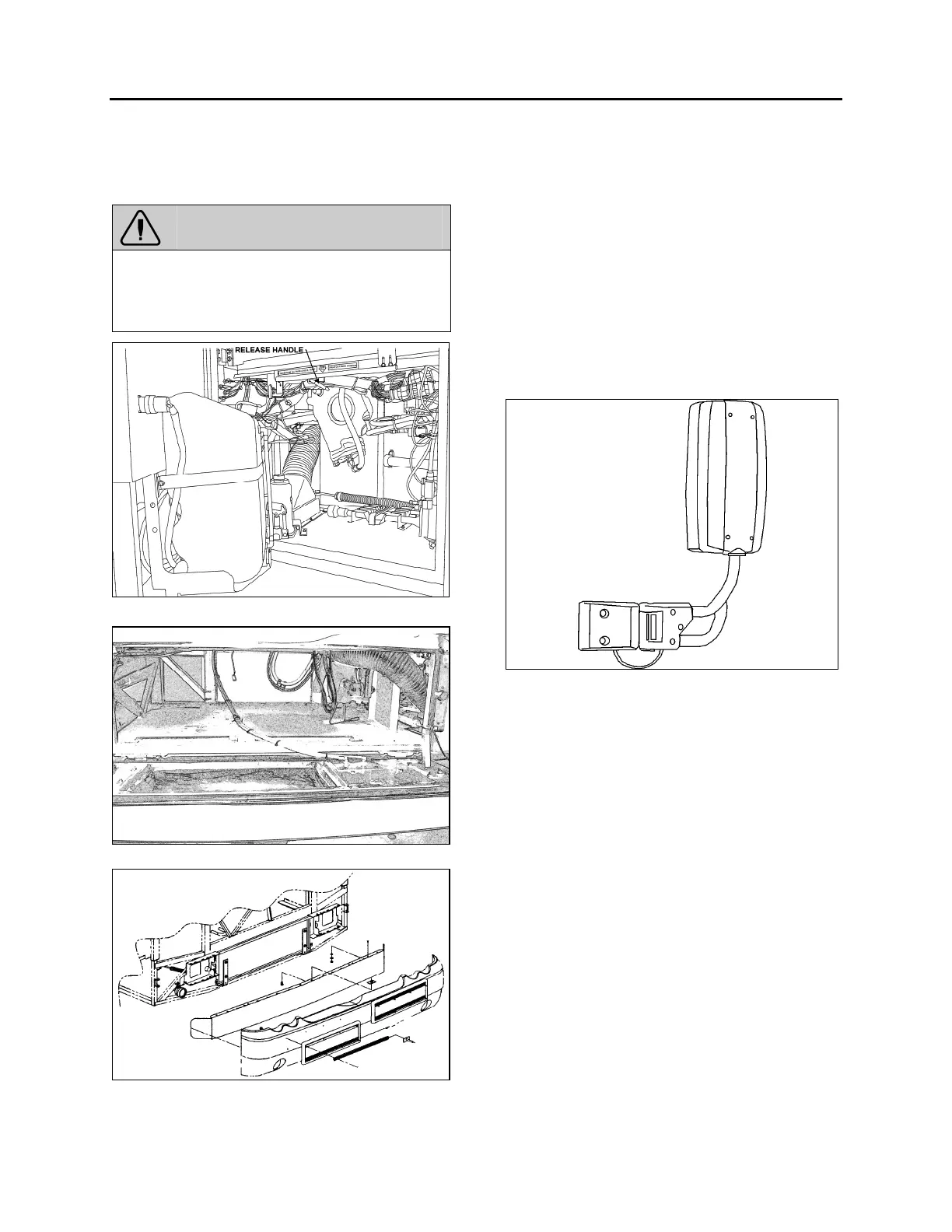

FIGURE 9: FRONT BUMPER RELEASE HANDLE 18613
FIGURE 10: FRONT BUMPER COMPARTMENT
18614
FIGURE 11: FRONT BUMPER REMOVAL 18565
6.1.2 Headlights
Refer to Paragraph Headlights, included in
Section 06: Electrical of the Maintenance
Manual for complete information on headlights.
6.1.3 Rear View Mirrors (Rosco)
Your vehicle is equipped with two Rosco exterior
mirrors.
The mirrors can easily be adjusted by using the
remote controls located on the L.H. side control
panel. The mirrors have easy to replace glass in
case of breakage. Remote control motors can
also be replaced.
FIGURE 12: REAR VIEW MIRROR (ROSCO) 18398A
Adjustment
At the base of the mirror arm, loosen the
mounting bolt to swing arm in or out.
To pivot the mirror head, loosen the setscrews
on each side of the ball stub at the base of the
mirror head to facilitate the adjustment.
Disassembly
At end of mirror arm, loosen the setscrews to
relieve tension on the ball stem. Remove the ball
stem from the arm.
Remove the four screws fastening the mirror
arm base to the coach.
Assembly
Mount the mirror arm base to the coach. Insert
the ball stem into the mirror arm and tighten the
socket setscrews.
