1. DESCRIPTION
The vehicle is provided with an air suspension system. The system consists of air springs, height control
valves, radius rods, sway bars, tripod and shock absorbers. The system operation is fully automatic and
maintains a constant vehicle height regardless of load, or load distribution.
The vehicle is also equipped with this system:
Front Kneeling;
2. I-BEAM AXLE FRONT SUSPENSION

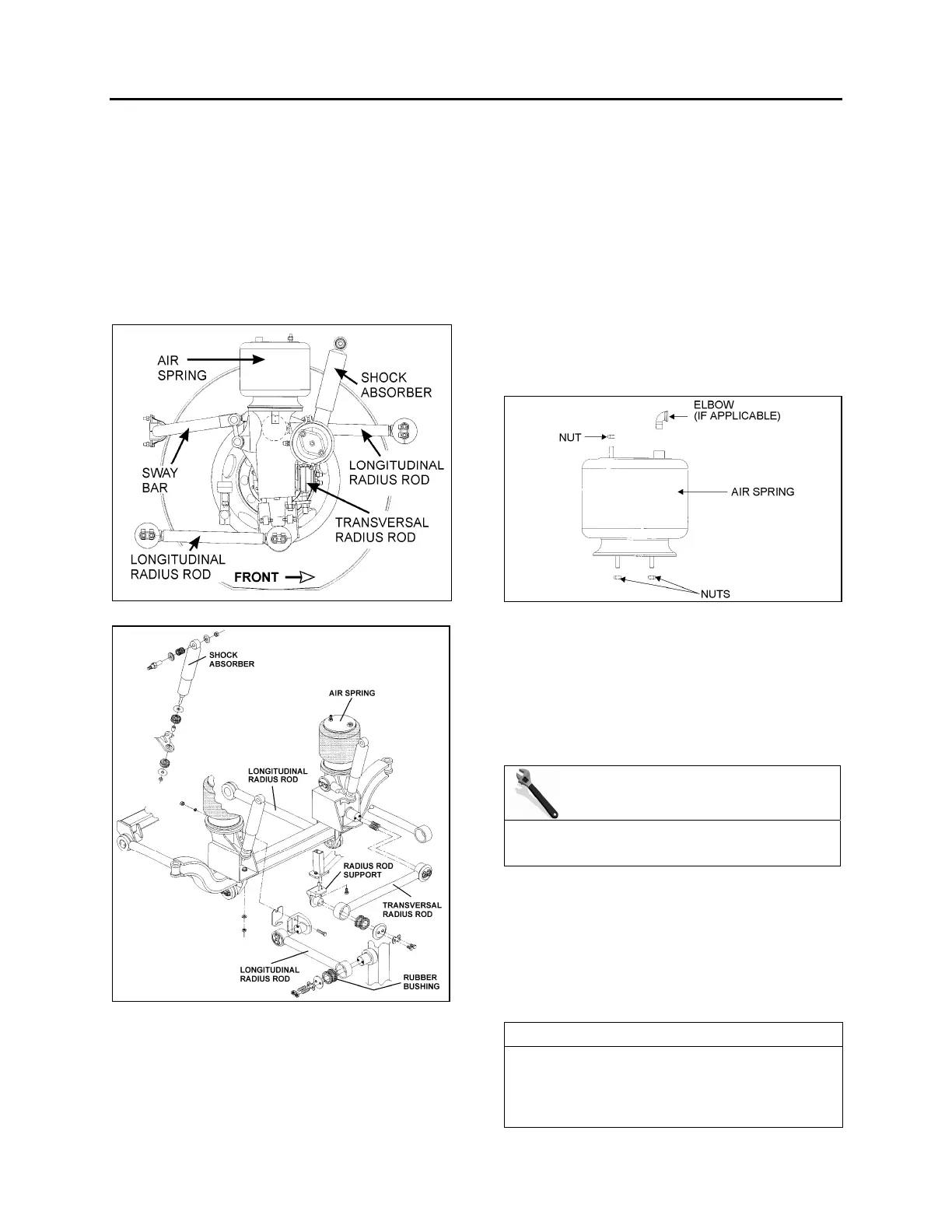

FIGURE 1: FRONT SUSPENSION COMPONENTS
16096
FIGURE 2: DETAILS OF FRONT SUSPENSION 16110
2.1 AIR SPRINGS
The air springs are made from a special
compound rubber molded to the proper contour
and dimensions. The entire vertical load of the
vehicle is supported by these springs. The I-
beam front axle is provided with air springs that
are attached to the subframe and to the axle
(Fig. 3).
FIGURE 3: AIR SPRING 16052
2.1.1 Inspection
1. Check operation of bellows.
2. Visually inspect bellows for evidence of
cracks, punctures, deterioration, or chafing.
Replace the bellows if any damage is
evident.
MAINTENANCE
Inspect air bellows every 6,250 miles (10 000
km) or twice a year whichever comes first.
3. With the primary air system at normal
operating pressure (95 - 125 psi (655 - 860
kPa)), coat all suspension air line
connections and bellows mounting areas
with a water and soap solution. Bubbles will
indicate an air leak, and none is
permissible. Repair or replace defective
parts.
NOTE
If air spring is removed from vehicle, bellows
can be lightly inflated and submerged in water
to detect any leakage. If any leakage is
detected, replace bellows.
