Section 18: BODY
PA1593
28
6.2 ZONE 2

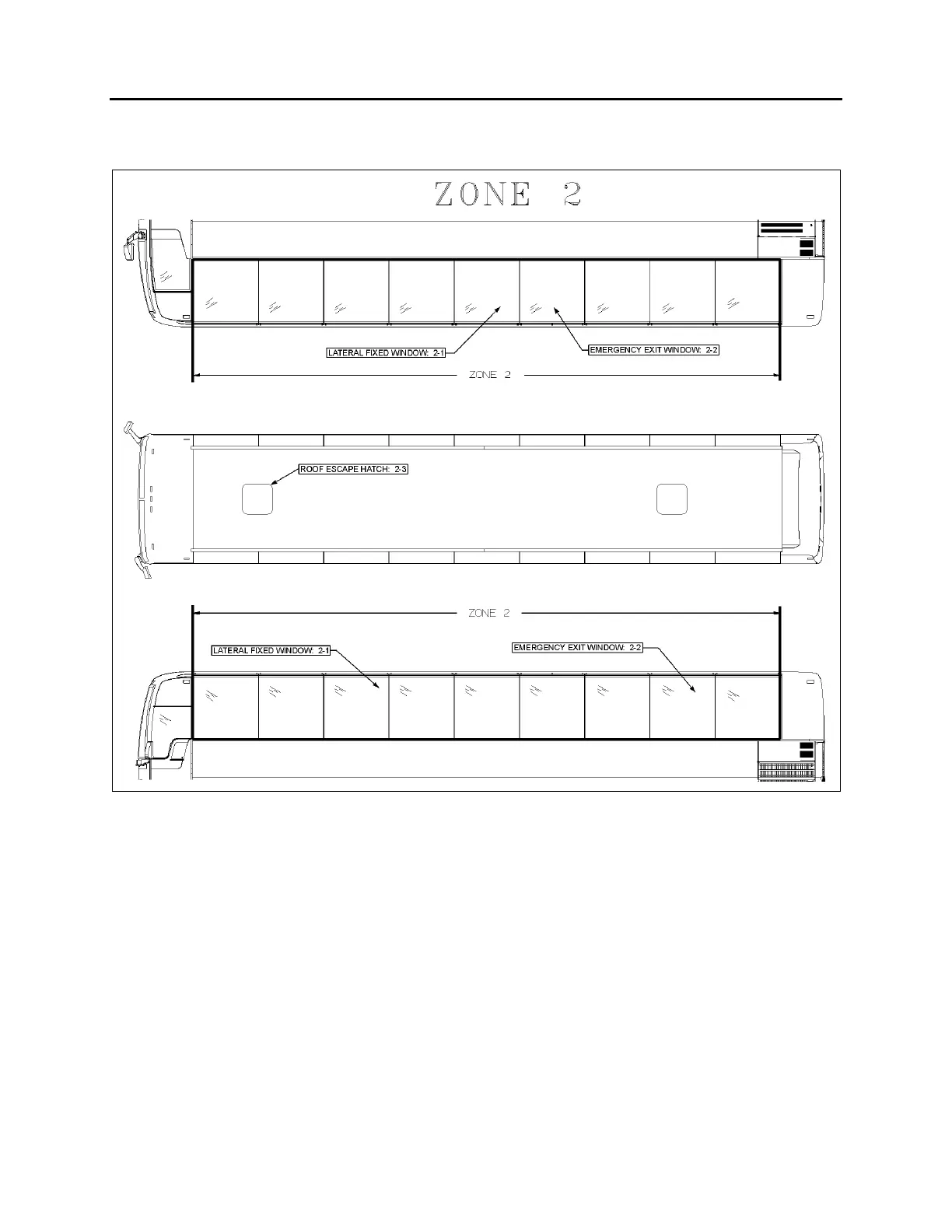

FIGURE 27: ZONE 2 18625
6.2.1 Lateral Fixed Window
Nine passenger side windows are provided on
each side on X3-45. They are made of fixed,
single or double-glazed, heat absorbing AS-3
glass. Windows are mounted in painted
aluminum extrusions, which hold the glass in
place from the top rail of the coach. The
extrusion also serves as a hinge to allow the
window to swing open when needed. The
single-glazed windows are made of tinted
tempered safety glass, while the double-glazed
windows are made of tinted tempered safety
glass outside and clear tempered glass inside.
For fixed side window removal or installation,
you will need:
Hammer or;
Drill equipped with a sharp pointed rod into
which a small hole was drilled;
Braided windshield wire and a pair of handles;
Gloves, goggles or face shield.
Fixed Window Removal
Method A
Apply a sticky plastic film onto window
outside surface (thermos) and break win-
dow. For single pane, apply a sticky plas-
tic film on both sides of window.
