Section 18: BODY
PA1593
41
5. Respect the required gap between exterior
finishing panels.
6. Check that the door swings freely and
closes properly. It may be necessary to
adjust the door latch to get proper fit and
operation.

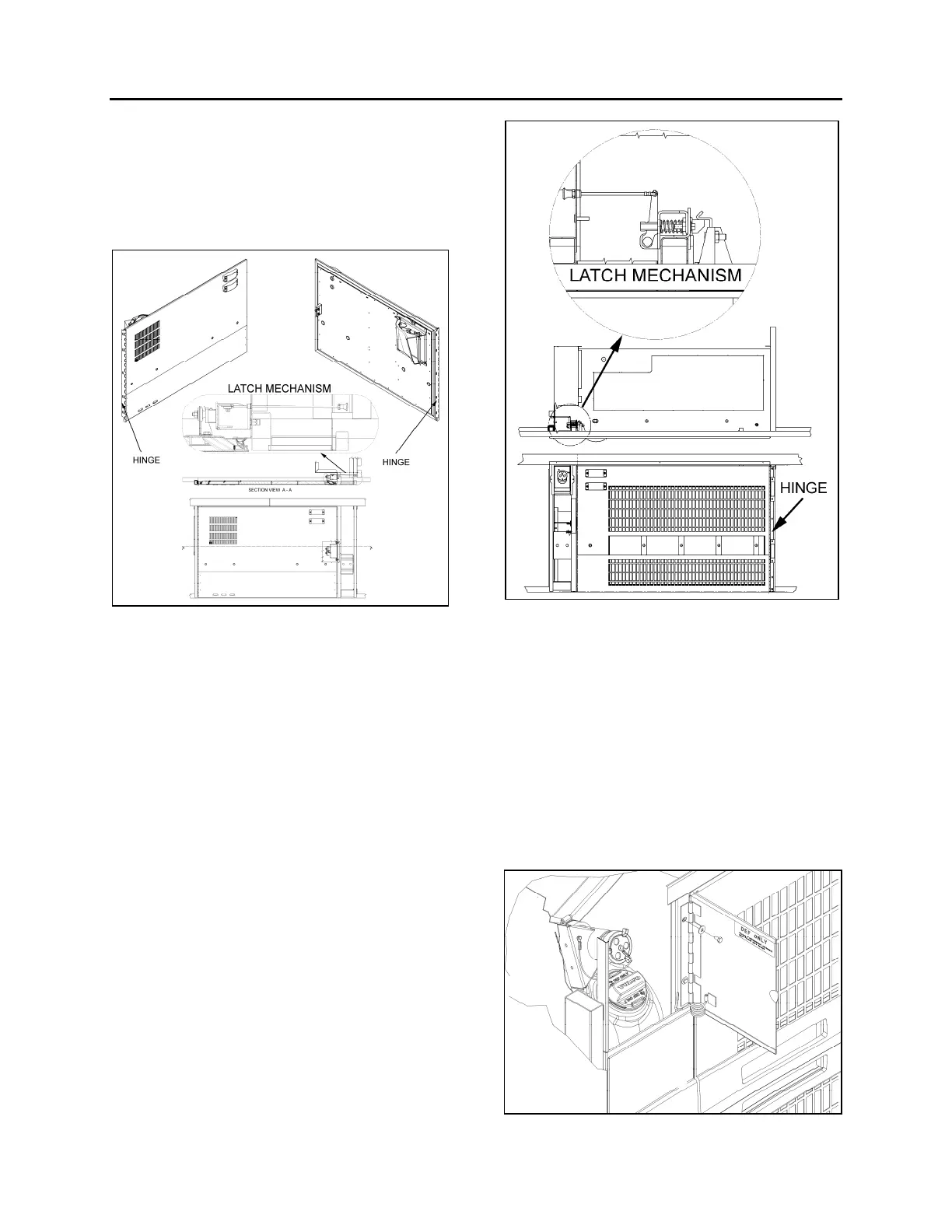

FIGURE 39: EVAPORATOR DOOR 18637
6.5.4 Condenser Compartment Door
1. Open the condenser door.
2. Loosen the screws fixing the hinge to hinge
attachment or hinge to door assembly.
Loosening the screws allows the condenser
door assembly to be shifted "LEFT or
RIGHT" and "UP or DOWN" or “IN and
OUT”.
3. Adjust condenser door assembly position at
the hinge.
4. Tighten the screws.
5. Respect the required gap between exterior
finishing panels.
6. Check that the door swings freely and
closes properly. It may be necessary to
adjust the door latch to get proper fit and
operation.
FIGURE 40: CONDENSER DOOR 18638
6.5.5 Fuel Filler Door
1. Open the fuel filler door.
2. Loosen the screws holding the panel to
hinge assembly.
3. Adjust the fuel filler door position according
to distance required between exterior
finishing panels.
4. Tighten the nuts.
5. Check that the door swings freely and
closes properly.
FIGURE 41: FUEL FILLER DOOR 03046
