MULTIZONE CONFIGURATION
CD PLAYER
DIGITAL AUDIO OUT
OPTICAL COAXIAL
L R
LINE LEVEL OUT
Stereo RCA-RCA
Patch Cable
To Unswitched
110V AC Outlet
M2
INPUT
To Unswitched
110V AC Outlet
Zone 2
Pre-OUT
BLU-RAY PLAYER CD PLAYER
PROFICIENT M80
2 ZONE A/V SURROUND RECEIVER
M2
BLU-RAY PLAYER
DIGITAL AUDIO OUT
OPTICAL COAXIAL
L R
LINE LEVEL OUT
V
S VIDEO
OUT
COMPONENT VIDEO OUT
Y Pb Pr
Line Level Audio/
Composite Video
OUT
HDMI OUT
Line Level Audio
OUT
Digital Optical Audio
OUT
Procient C850 Ceiling Speakers
Audio Sense
Switch

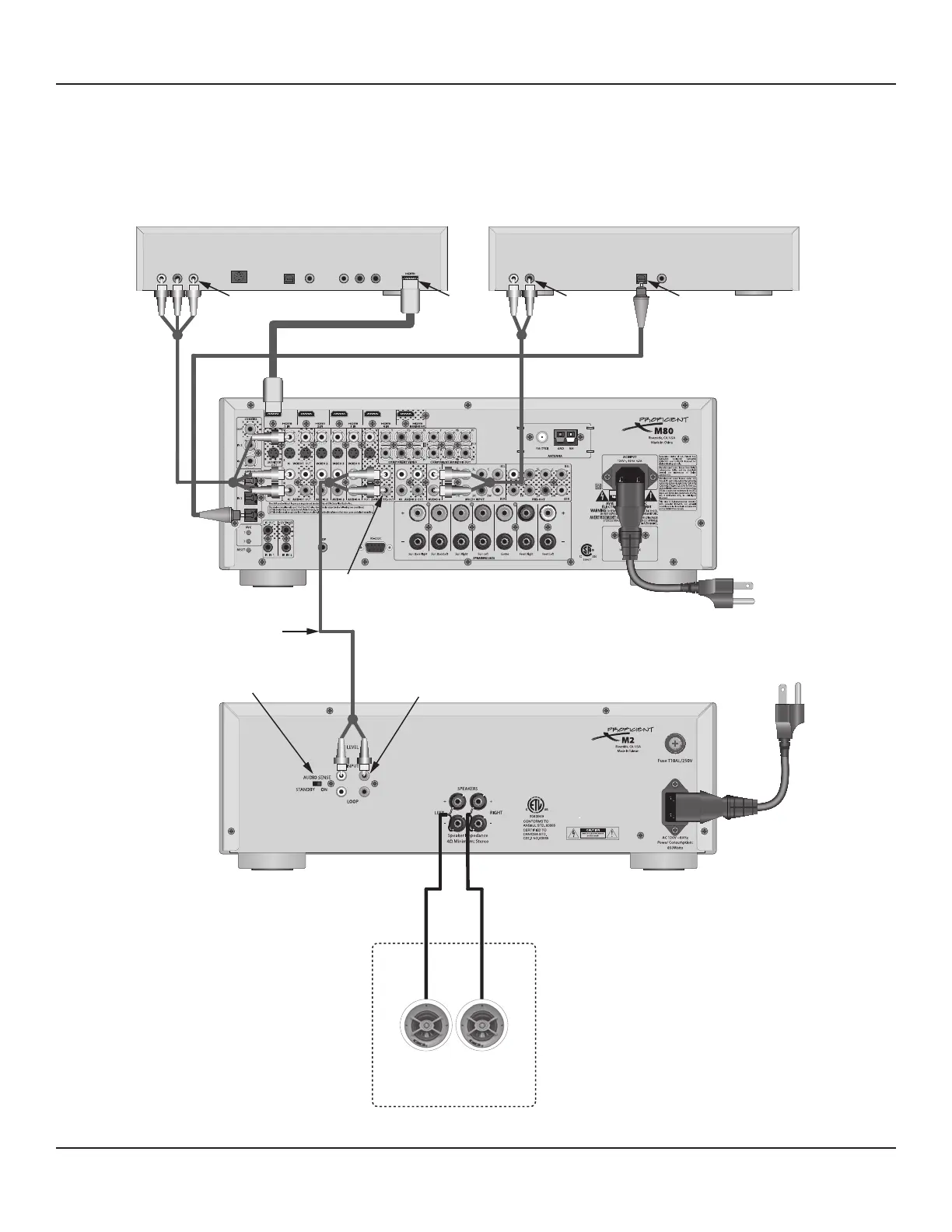

Diagram 125 Zone 2 - Single Room High Power Audio System
ZONE 2 AS A SINGLE ROOM WITH HIGH POWER AMPLIFIER
Diagram 125 shows the M80 Zone 2 PRE-OUT connected to the line level in on a Procient M2 125 Watts per channel stereo am-
plier. This conguration provides high power audio for a large room or patio area with volume controlled using the M80 Zone 2
Remote. Using an external amplier for Zone 2 audio will allow the Main Room to be congured as a 5.1 or 7.1 Surround system.
Please refer to the M2 Installation & User Guide for complete specications and connection instructions.
