90
CD PLAYER
DIGITAL AUDIO OUT
OPTICAL COAXIAL
L R
LINE LEVEL OUT
Stereo RCA-RCA
Patch Cable
Procient
VCS60
Volume
Control
Procient C645 Ceiling Speakers
Zone 2
Room 1
Procient
VCS60
Volume
Control
Procient C645 Ceiling Speakers
Zone 2
Room 2
Procient
VCS60
Volume
Control
Procient C645 Ceiling Speakers
Zone 2
Room 3
Procient
VCS60
Volume
Control
Procient C645 Ceiling Speakers
Zone 2
Room 4
16AWG (min) 2-Conductor
Stranded Speaker Wire
16AWG (min) 2-Conductor
Stranded Speaker Wire
To Unswitched
110V AC Outlet
Set Odd # BUS
Channel Input Switches to BUS L
Even # Channels to BUS R
Set all Bridged
Switches to OFF
M8
BUS IN
To Unswitched
110V AC Outlet
Zone 2
OUT
BLU-RAY PLAYER CD PLAYER
PROFICIENT M80
2 ZONE A/V SURROUND RECEIVER
M8
BLU-RAY PLAYER
DIGITAL AUDIO OUT
OPTICAL COAXIAL
L R
LINE LEVEL OUT
V
S VIDEO
OUT
COMPONENT VIDEO OUT
Y Pb Pr
Line Level Audio/
Composite Video
OUT
HDMI OUT
Line Level Audio
OUT
Digital Optical Audio
OUT
Normal
Connections

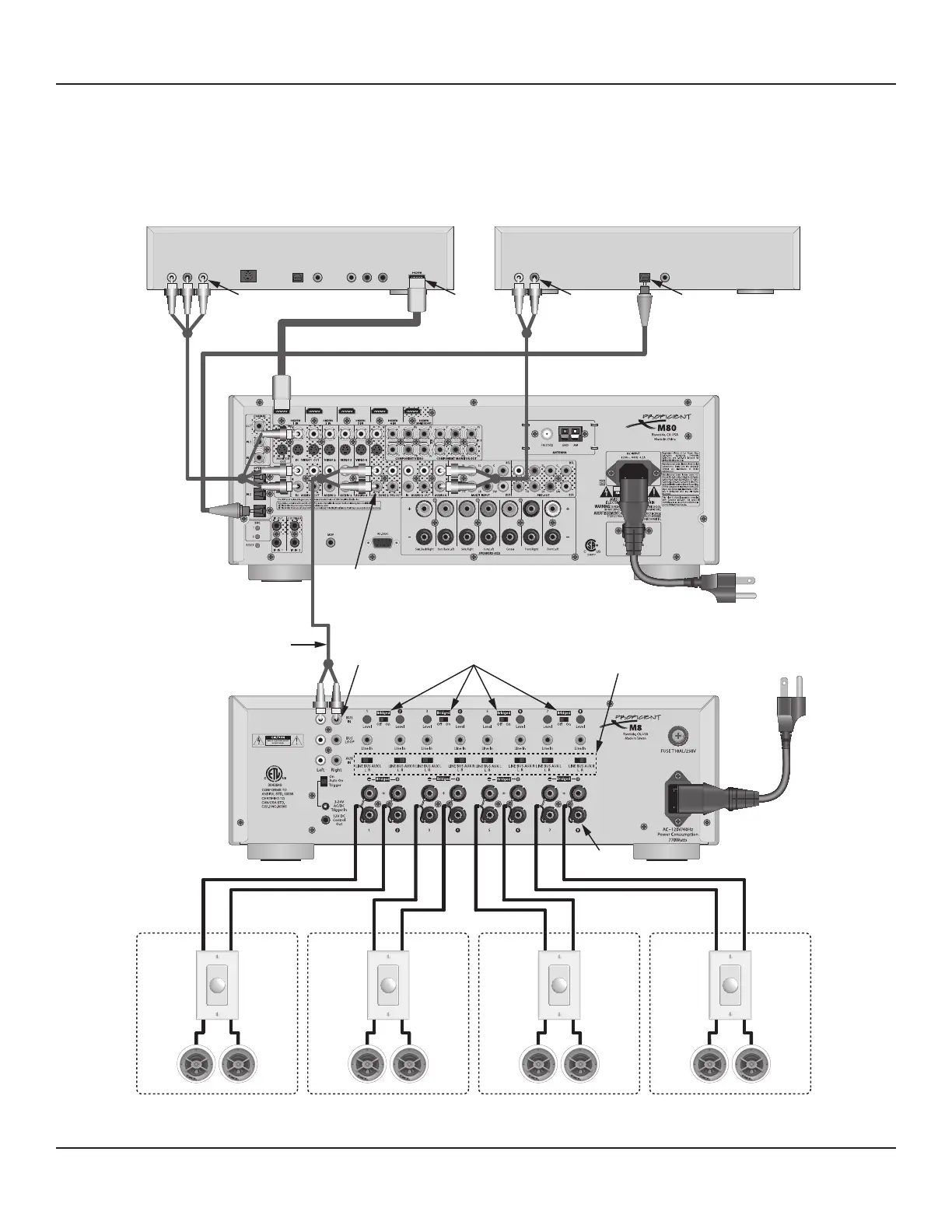

Diagram 126 Zone 2 Multiroom Audio System
ZONE 2 AS MULTIPLE ROOMS WITH 8-CHANNEL POWER AMPLIFIER
Diagram 126 shows the M80 Zone 2 OUT connected to the BUS IN in on a Procient M8 35 Watts X 8 channel amplier. This
conguration adds four rooms to the Zone 2 OUT with volume controlled in the individual rooms with Procient VCS60 Volume
Controls. Using an external amplier for Zone 2 audio will allow the Main Room to be congured as a 5.1 or 7.1 Surround system.
Please refer to the M8 Installation & User Guide for complete specications and connection instructions.
MULTIZONE CONFIGURATION
