USER’S MANUAL. PRODIG-5
11/2006 Page 43
English
0 20 40 60 80 100 120
FREQ:
DL:
CH:
MPEG-2
1479.0 MHz
kHz
MHz
---
11229.0
2 MHz
C/N:
» POWER:
MER:
CBER:
VBER:
-12.4
20.2
5.2
3.3E-2
<3.9E-3
dB
dBµV
dB
CONFIGURATION
» CHANNEL SET:
» SYSTEM:
FRAME RATE:
» CHANNEL BW:
» SPECTRAL INV:
» CODE RATE:
» SYMBOL RATE:
» POLARIZATION:
»
» SIGNAL:
ASTRA-VL
PAL
50Hz
29.70 MHz
OFF
5/6
22000kSymb
VERT/RIGHT
DVB-S

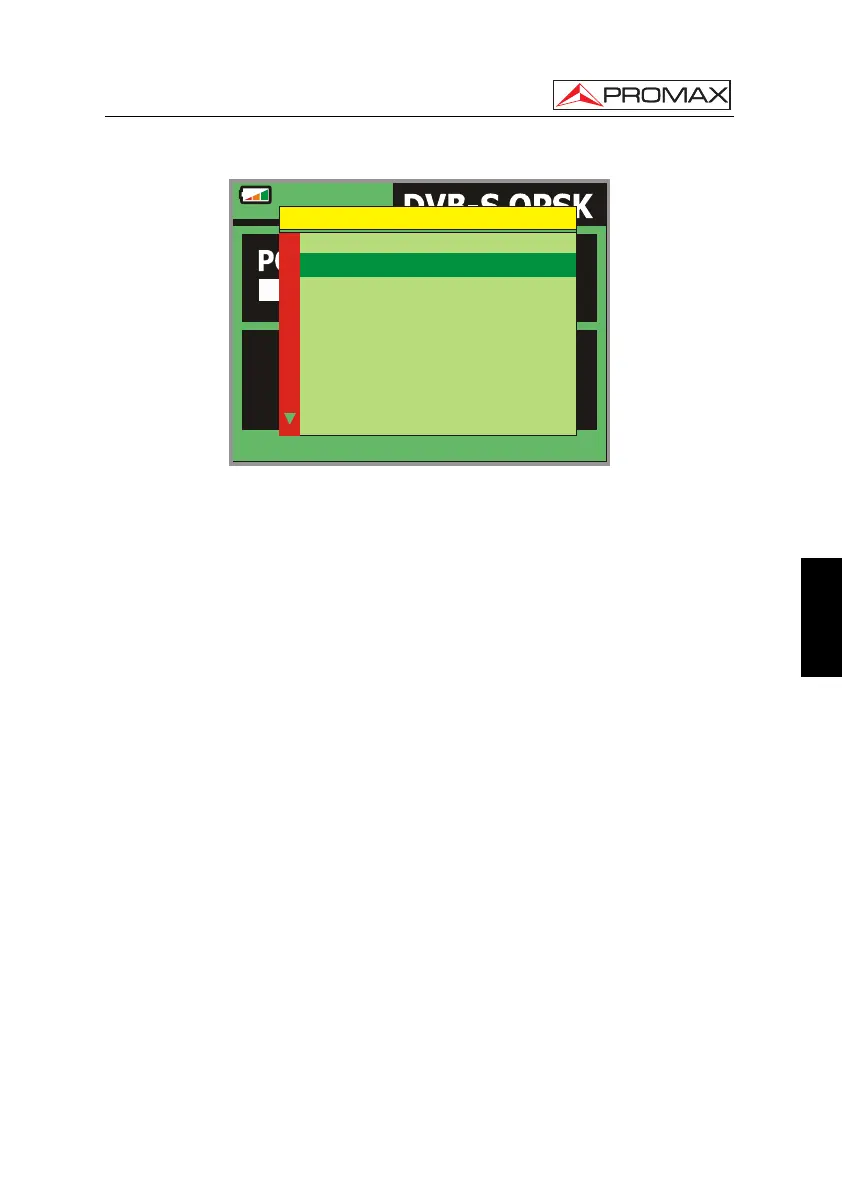

Figure 20.- Screen of mesurement configuration (QPSK signals).
4) Polarization
It affects to the signal reception in the SAT band (satellite). It allows to select the
the signal polarisation among Vertical/Right (vertical and circular clockwise) and
Horizontal/ Left (horizontal and circular counterclockwise) or, to deactivate the
polarization (
OFF).
5) Sat Band
Selects the High or Low frequency band for satellite channel tuning.
6) LNB Low Osc.
Sets the LNB low band local oscillator.
7) LNB High Osc.
Sets the LNB high band local oscillator.
