Promax PRODIG-5 User Manual

USER’S MANUAL. PRODIG-5
11/2006 Page 67
English
6 DESCRIPTION OF THE INPUTS AND OUTPUTS
6.1 RF input
The RF input is through the RF [30] connector on the side panel. The peak
signal level should never exceed 130 dBµV.
6.2 RS-232C serial port
The PRODIG-5
(EXPLORER) incorporates an RS-232C serial port for diagnosis,
setup and calibration processes. The signals in this connector are described in Table 4.
1
5
3
2
4
9
8
7
6

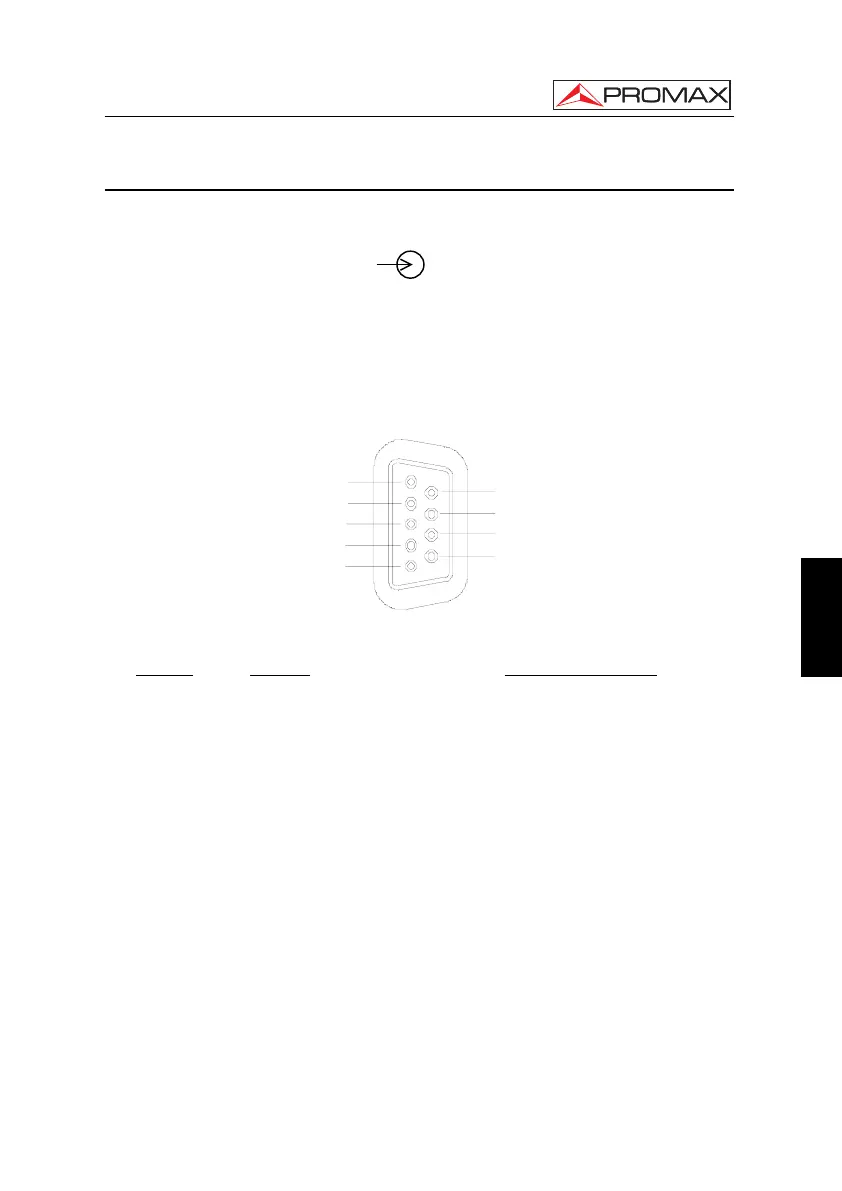

Figure 42.- RS-232C connector. External view.
PIN No.
SIGNAL CHARACTERISTICS
1 Carrier detect (not connected)
2 Data Receive (RxD)
3 Data Transmit (TxD)
4 Data Terminal Ready (DTR) (not connected)
5 Ground (GND)
6 Data Set Ready (DSR) (not connected)
7 Request to Send (RTS)
8 Clear to Send (CTS)
9 Ring Indicator (not connected)
Table 4.- Description of the RS-232C connector.
