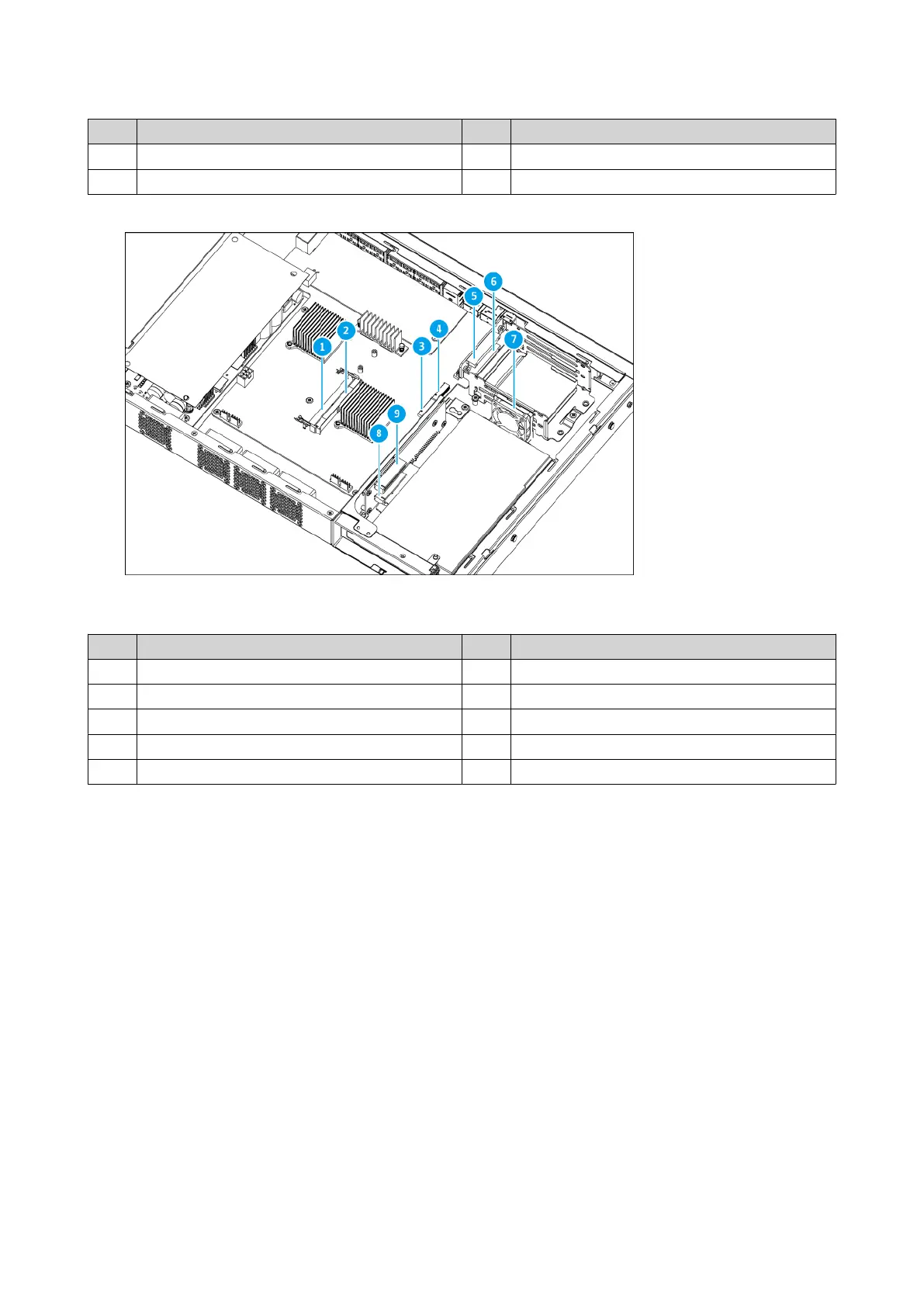

No. Component No. Component
3 PCIe 2.0 x2 slot 1 7 Drive bay fan
4 PCIe 2.0 x2 slot 2 - -
QGD-1602P
No. Component No. Component
1 Memory slot 1 6 Drive connector 1
2 Memory slot 2 7 Drive bay fan
3 M.2 SSD slot 2 8 PCIe 3.0 x4 slot 2
4 M.2 SSD slot 1 9 PCIe 3.0 x4 slot 1
5 Drive connector 2 - -
Safety Information
The following instructions help ensure personal safety and environmental safety. Read these instructions
carefully before performing any operation.
General Instructions
• The device should be stored in a secure location with restricted access, controlled through the use of a
tool, lock and key, or any means of security.
• Only qualied, skilled, and authorized persons with knowledge of all restrictions, safety precautions,
and installation and maintenance procedures should have physical access to the device.
• To avoid potential injury or damage to components, ensure that the drives and other internal system
components have cooled before touching them.
• Observe electrostatic discharge (ESD) procedures to avoid potential injury or damage to components.
QGD Rackmount Switch User Guide
Product Overview 14
