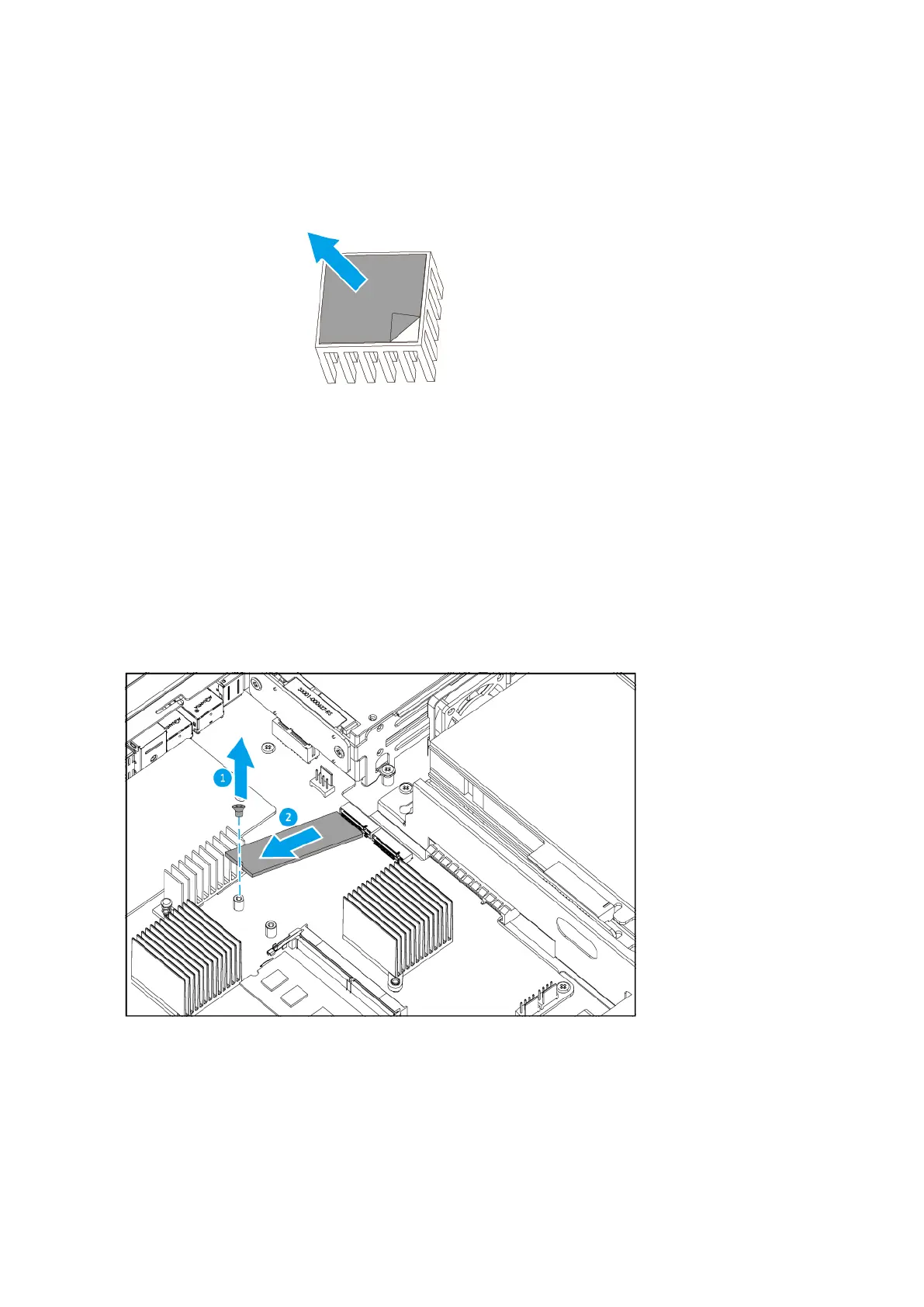

Install the heatsink on the controller
.
6.
Optional: Remove an existing M.2 SSD
.
a.
Remove the screw
.
b.
Pull the M.2 SSD away from the slot.
7.
Install the new M.2 SSD
.
a.
Insert the M.2 SSD into the slot.
b.
Attach the screw
.
QGD Rackmount Switch User Guide
Installation and
Conguration
24
24
26
Table of Contents
Table of Contents
2
Preface
5
About this Guide
5
Audience
5
Document Conventions
5
Product Overview
6
About the QGD-1600P and QGD-1602P
6
Hardware Specifications
6
Package Contents
9
Components
9
Front Panel
10
Front Panel Leds
12
Rear Panel
14
System Board
14
Safety Information
15
Installation Requirements
16
Setting up the Device
17
Installation and Configuration
18
Hardware Installation
18
Removing the Case Cover
18
Attaching the Case Cover
19
Drive Installation
21
Replacing Memory Modules
26
Installing Expansion Cards
30
Attaching Rubber Feet
34
Installing Handles
36
Fan Installation
37
Connecting the Device to a Computer or Network
42
Connecting USB Expansion Units
43
QTS Installation
44
Installing QTS Using Qfinder Pro
45
Installing QTS Using the Cloud Key
48
Installing QTS Using an HDMI Connection on the QGD-1600P
51
Switch Management Access
52
Accessing QSS with Qfinder Pro
52
Accessing Qunetswitch in QTS
53
Basic Operations
54
Buttons
54
Host Power Button
54
QTS Reset Button
54
Switch Reset Button
55
LCD Panel
55
Viewing TCP/IP Settings
55
Configuring TCP/IP Settings
55
Viewing Drive Information
56
Viewing System Information
56
Powering off the Switch
57
Restarting the Device
57
Changing the LCD Password
57
LCD Error Messages
58
Leds
58
Audio Alert
59
Switch Management
60
About QSS and Qunetswitch
60
Parts of the User Interface
60
Client Device Management
61
Scanning for Connected Devices
62
Sending a Wol Packet to a Device
62
Deleting a MAC Address
62
Clearing the MAC Address History
62
Network Management
63
Configuring Port Settings
63
Managing Poe Settings
63
Adding a VLAN
64
Adding a Link Aggregation Group (LAG)
65
Configuring IGMP Snooping
66
Adding a Static MAC Address
66
Configuring Rate Limits on a Port
67
Managing Access Control List (ACL) Entries
67
Configuring Qos Settings
69
Configuring Port Mirroring
69
Enabling LLDP on the Switch
70
Configuring Loop Protection
70
Deleting a Network Setting
71
Monitoring Network Settings
71
System Management
72
Configuring Connection Settings
72
Updating the Switch Password
72
Configuring Time Settings
73
Managing Logs
73
Resetting the Switch to Factory Settings
74
Restarting the Switch
74
Viewing the Switch Information
74
Performing Host Control Actions
75
Troubleshooting
76
Hot-Swapping Failed Drives
76
Forcing Qfinder Pro and Myqnapcloud to Locate the Device
76
Support and Other Resources
76
Glossary Myqnapcloud
78
Myqnapcloud Link
78
Qfinder Pro
78
Qss
78
Qts
78
Qunetswitch
78
Notices
79
Limited Warranty
79
Disclaimer
79
Copyright and Trademarks
79
GNU Public License
80
CE Notice
87
UKCA Notice
87
FCC Notice
87
VCCI Notice
88
BSMI Notice
88
Sj/T 11364-2006
89
