© İnnosis Makine 22
on the horizontal level and the other one on the inclined level gure 8 (2). Always travel with
the sliding blocks on the same horizontal level, in order not to damage the rubber crawlers.
• When the machine proceeds in reverse (gure 8. 3), an empty space is created between
the carrying roller, the front wheel, and the rubber crawler track, with the risk that this
last one comes out of its seat.
• Do not aect changes of the direcon while the machine moves on curbs, rocks, or big
level dierences. In such cases always proceed perpendicularly regarding to obstacles.
While moving reversal uphill (gure 8.4), do not steer in movement. However, if this
should be necessary, try to maneuver gradually.
• When you change direcon in a situaon in which the crawler track moves slowly
because it needs to pass an obstacle (gure 8 .5), the crawler tracks can be damaged and
get out of its seat.
•

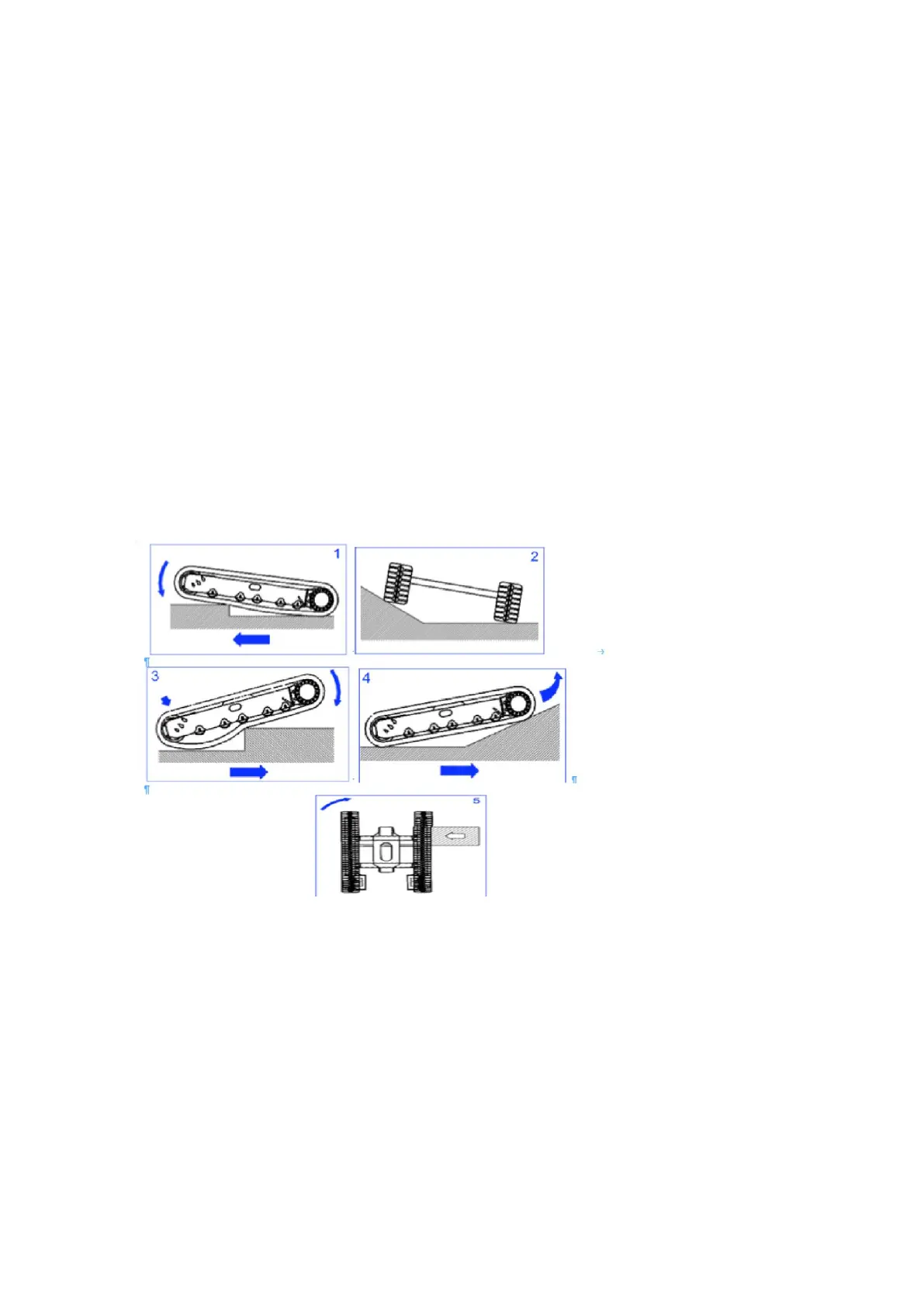

Fig.8 Faulty movements of the crawler
• When the machine travels in reverse showed in gure 9(A), the crawler track
may become out of its seat
• When you steer in the condions shown in gure 9(B), the crawler track may
come out of its seat
