Rain Bird ESP-LX User Manual

20 ESP-LX Modular Controller

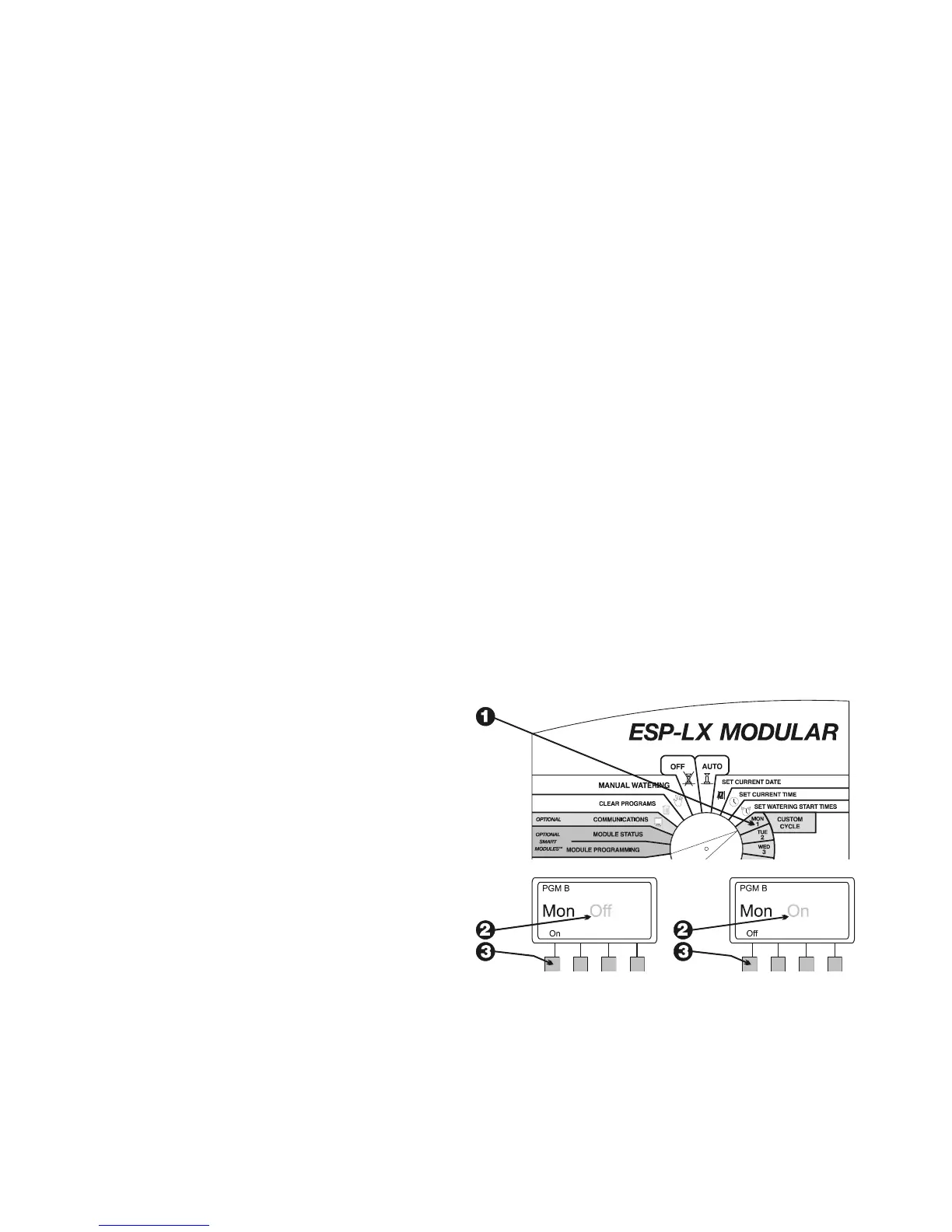

Custom Cycle
To set a custom cycle:
 Turn the dial to “MON.”
 The display shows the currently selected program and day of
the week, along with a flashing “On” or “Off.” If the program
you want is not displayed, use the program select switch to
change it. See page 17 for instructions.
 Press “On” to turn the selected day on. Press “Off” to turn the
selected day off.

Rain Bird ESP-LX Specifications

General

Enclosure rating	NEMA 3R
Sensor input	Yes
Type	Modular
Enclosure	Indoor/Outdoor
Display	LCD
Programs	4
Master Valve/Pump Start	Yes
Power Source	120V AC
Power supply	Included
Battery backup	Yes (for memory retention)
Cycle and soak	Yes
Mounting	Wall mount
