Rain Bird ESP-LX User Manual

54 ESP-LX Modular Controller
Test All Valves/Check System
The ESP-LX Modular Controller provides built-in diagnostic
functions that let you:
 Confirm all information entered for each program
 Calculate the total run time of each program
 Calculate the total daily watering times of each valve in each
program
 Run a test program that operates all system valves in sequence

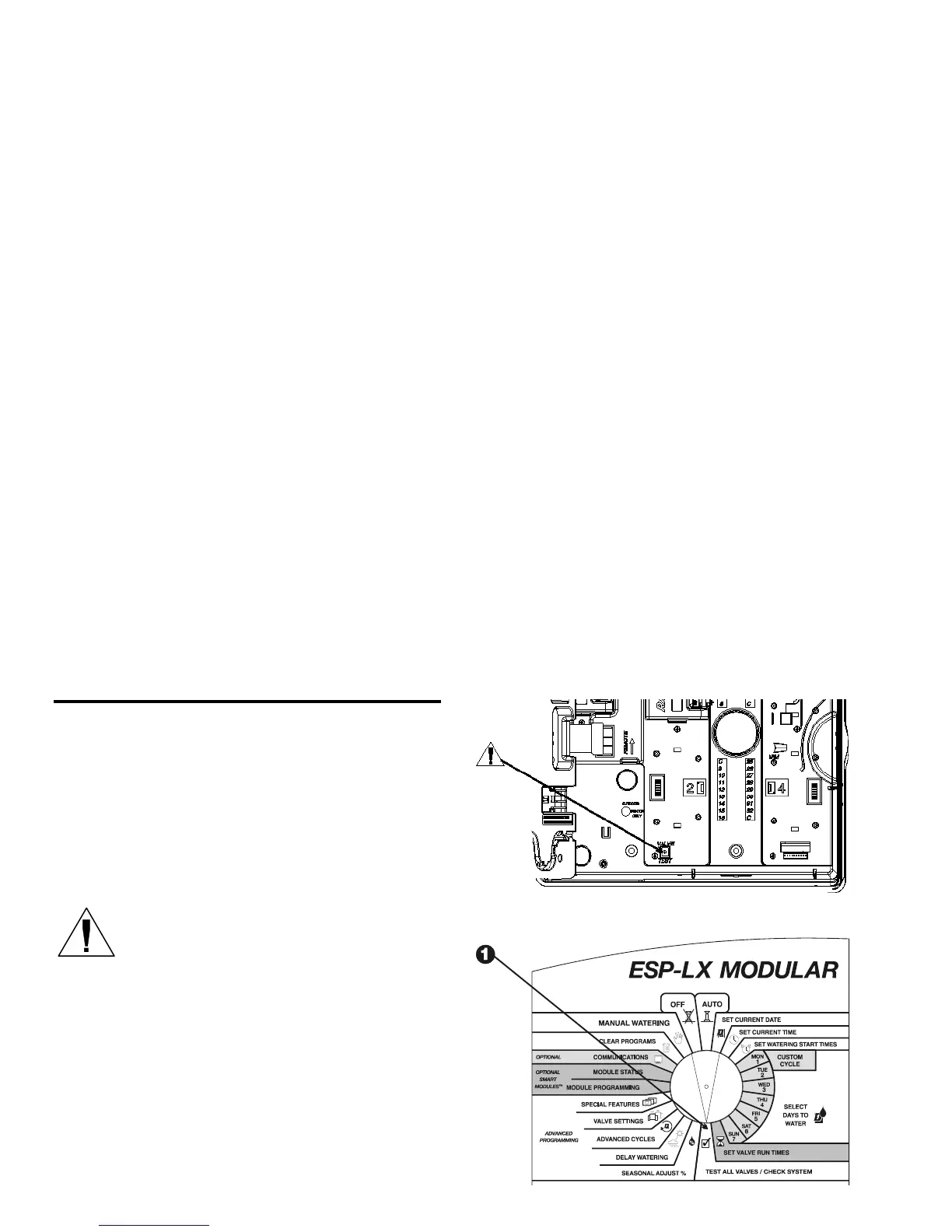

NOTE: The controller also provides a “hot post” test
terminal on the inside panel. Use this terminal to test
a single valve. See the top illustration on the right.
Confirm Programs
Review Program
 Turn the dial to “TEST ALL VALVES/CHECK SYSTEM.”

Rain Bird ESP-LX Specifications

General

Enclosure rating	NEMA 3R
Sensor input	Yes
Type	Modular
Enclosure	Indoor/Outdoor
Display	LCD
Programs	4
Master Valve/Pump Start	Yes
Power Source	120V AC
Power supply	Included
Battery backup	Yes (for memory retention)
Cycle and soak	Yes
Mounting	Wall mount
