Rain Bird ESP-LX User Manual

38 ESP-LX Modular Controller

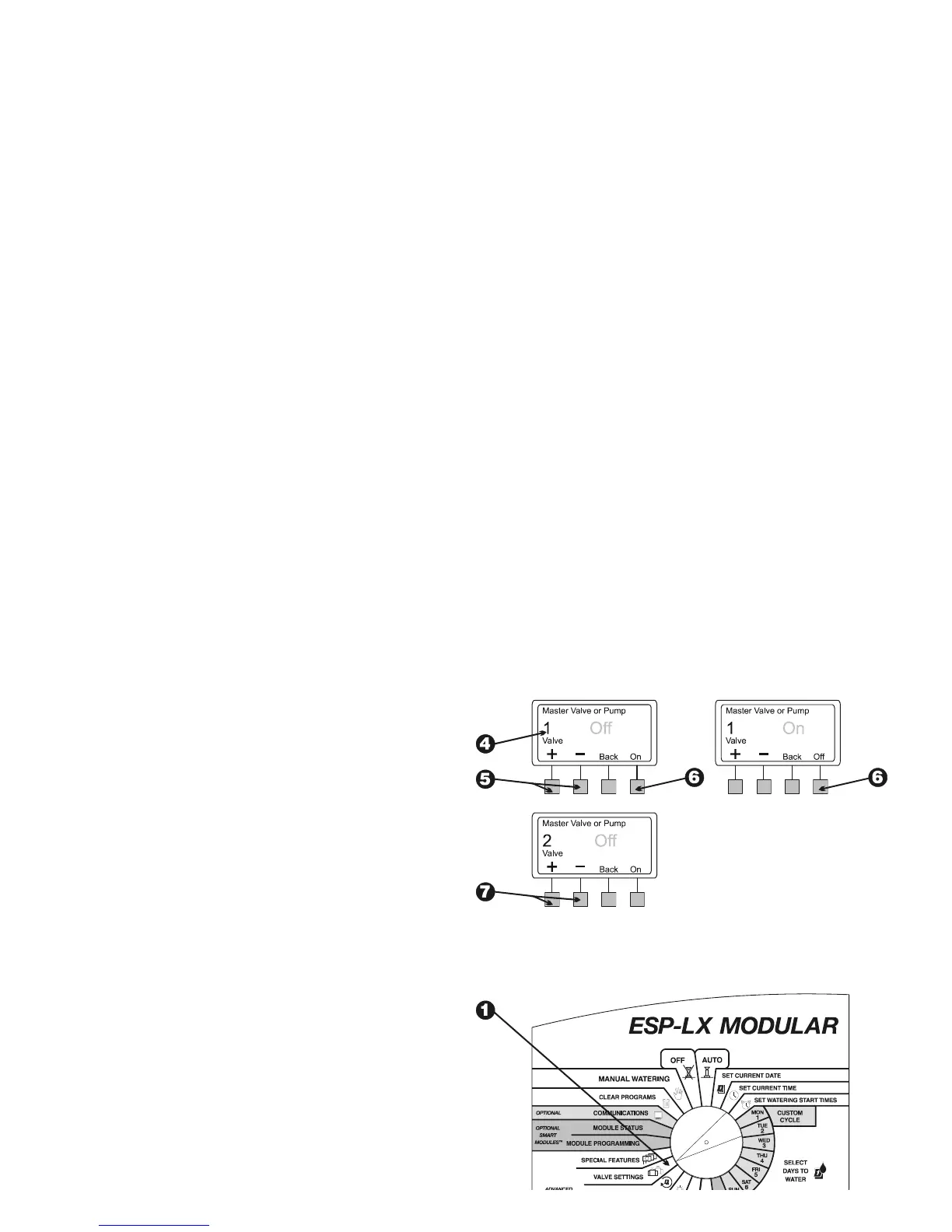

 The display shows Valve 1 and its current setting for Master
Valve/Pump, either On or Off. (The default setting is “On.”)
The setting flashes.
 To select a different valve, press “+” or “–” until the valve
number you want appears.
 Depending on how this valve is currently set, either “On” or
“Off” flashes. To use the master valve or pump relay with this
valve, press “On.” To remove the master valve/pump relay
assignment, press “Off.” The MV/Pump setting affects the
valve in all programs to which it is assigned.
 To select another valve, press “+” or “–” until the valve
number you want appears. Then repeat steps 6 and 7.
Sensor Override
The ESP-LX Modular controller lets you set valves to run even
when a sensor is active.
 Turn the dial to “VALVE SETTINGS.”

Rain Bird ESP-LX Specifications

General

Enclosure rating	NEMA 3R
Sensor input	Yes
Type	Modular
Enclosure	Indoor/Outdoor
Display	LCD
Programs	4
Master Valve/Pump Start	Yes
Power Source	120V AC
Power supply	Included
Battery backup	Yes (for memory retention)
Cycle and soak	Yes
Mounting	Wall mount
